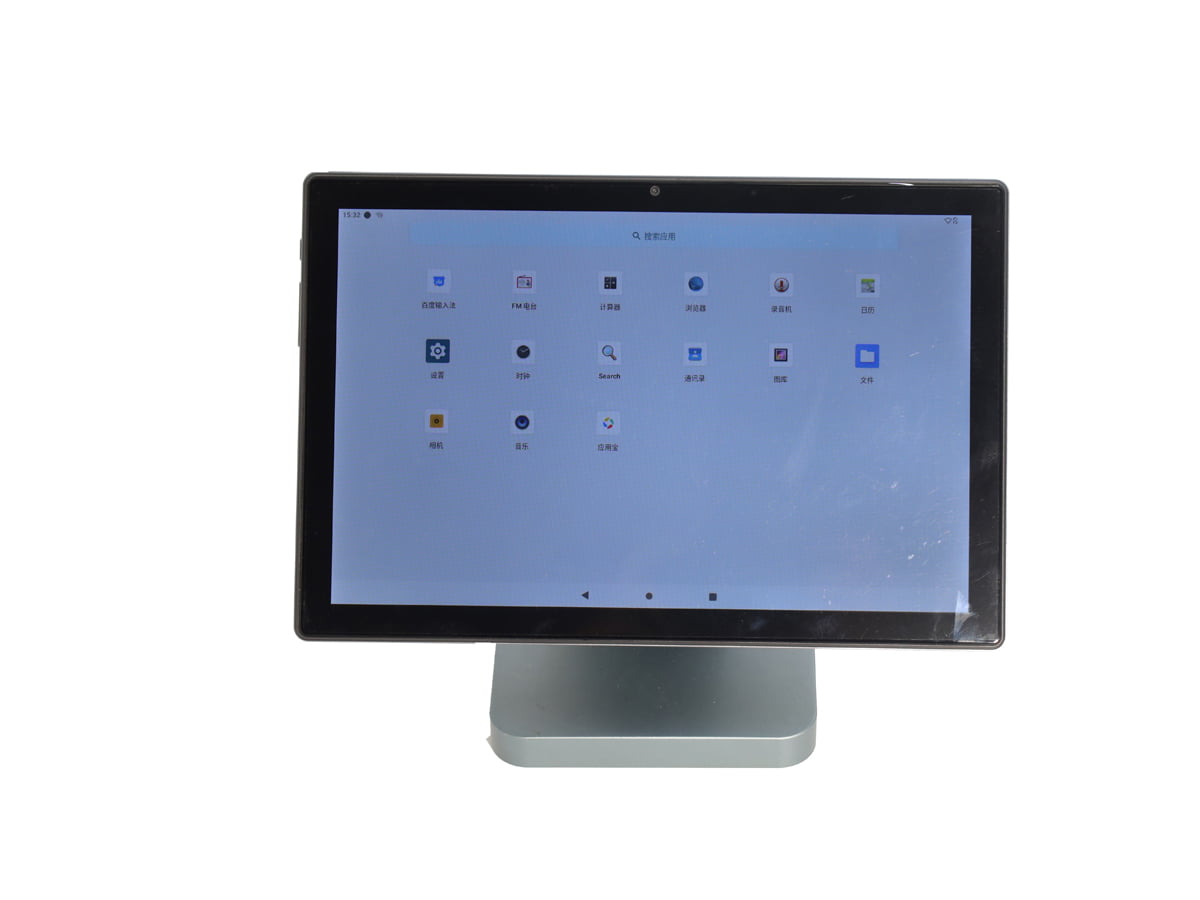

SN-R10 10.1″ Magnetic Android Display
Expansive visibility. Cordless flexibility.
A larger digital canvas for your operations is provided by the SN-R10. A 10.1-inch commercial interface is fused with our signature magnetic charging ecosystem. Dedicated control panels, interactive digital menus, and room booking systems are deployed effortlessly by our hardware.
Two Deployments.
One Magnetic Standard.
Uninterrupted Counter Service.

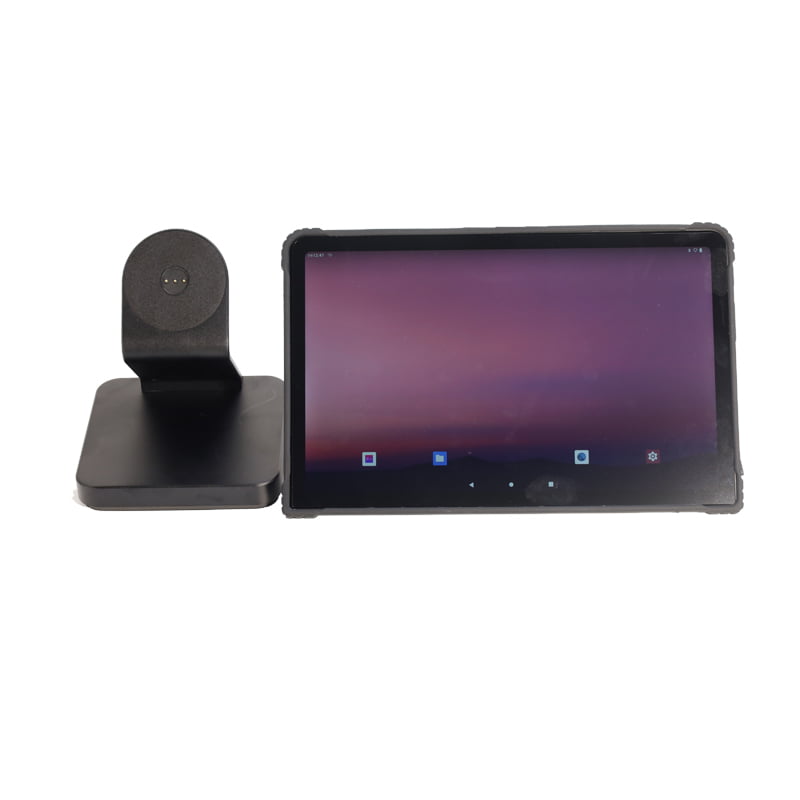

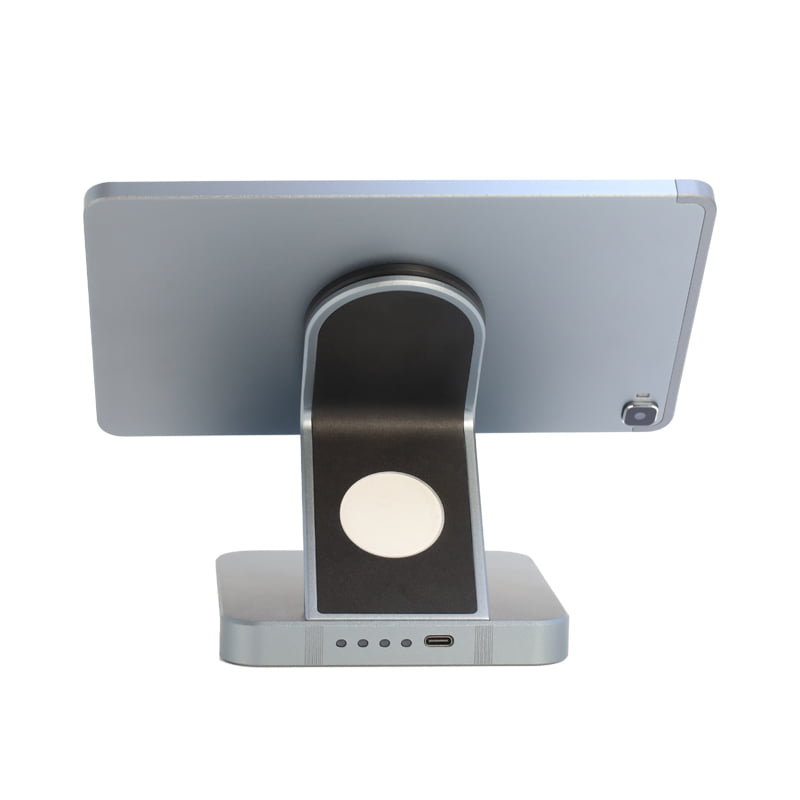

A heavy-duty aluminum base is utilized to support the 10.1-inch screen securely. An optional 10,000mAh battery is housed inside. Cordless presentations and mobile ordering are executed seamlessly. The tablet is attached and detached instantly via the 3-pin pogo interface.
- Aluminum industrial-grade base
- 10,000mAh optional battery
- 3-pin pogo magnetic contact
Flush-Mounted Control.
Meeting room displays and smart home panels are installed with ease. Standard 86-box mounting is supported. Power over Ethernet (POE 48V) or standard 220V inputs are accommodated by the wall bracket. A clean, cable-free environment is maintained.
- Standard 86-box compatible
- POE 48V or 220V AC input
- Zero-cable clean install
Optimized for Dedicated Tasks.
Cost-effective reliability is delivered by our engineering team. Unnecessary consumer features are eliminated. The SN-R10 is built specifically for continuous, single-app execution.
Display
Wide viewing angles are provided by the 10.1" (800×1280) G+G touch panel.
Processing
Stable operations are ensured by an Octa-Core ARM-A53 processor and Android 9 OS.
Power
A 5,000mAh internal battery is equipped for backup mobility.
Connectivity
Consistent data sync is handled by Wi-Fi 4 and Bluetooth 4.0.
Your Brand.
Your Software.
Locked In.
Deep OEM modifications are provided by SynqNode. Custom boot animations are designed. Android operating systems are locked into "Kiosk Mode" to prevent user tampering. Cameras and vibration modules are added only if required by your project. Hardware costs are minimized while utility is maximized.
Kiosk Lockdown
Single-app execution enforced. User tampering prevented.
Boot Branding
Custom boot animations designed for your brand identity.
Modular Hardware
Cameras and sensors added only when required by project.
Cost Optimized
Hardware costs minimized. Utility per unit maximized.
SN-R10 Specifications
| Component | Specification |
|---|---|
| Display | 10.1" (800×1280) G+G Touch Screen |
| Processor | Octa-Core ARM-A53 (1.5GHz / 1.0GHz) |
| Memory / Storage | 2GB LPDDR3 / 16GB EMMC |
| Operating System | Android 9 |
| Tablet Battery | 5,000 mAh, Type-C (5V/2A) |
| Cameras | Optional (Not included by default) |
| Desktop Dock (Optional) | Aluminum Base, 10,000mAh Battery Built-in, Magnetic |
| Wall Dock (Optional) | Plastic 86-Box Mount, 220V AC or POE (48V) Input |
| Connectivity | Wi-Fi 4 (a/b/g/n), Bluetooth 4.0, GPS |
| Dimensions / Weight | Tablet: 242.4 × 161.2 × 8.7 mm / 524g |
Secure Your Supply Chain Today.
Direct factory pricing, technical support, and sample units are ready to be dispatched. OEM projects are welcomed globally.
