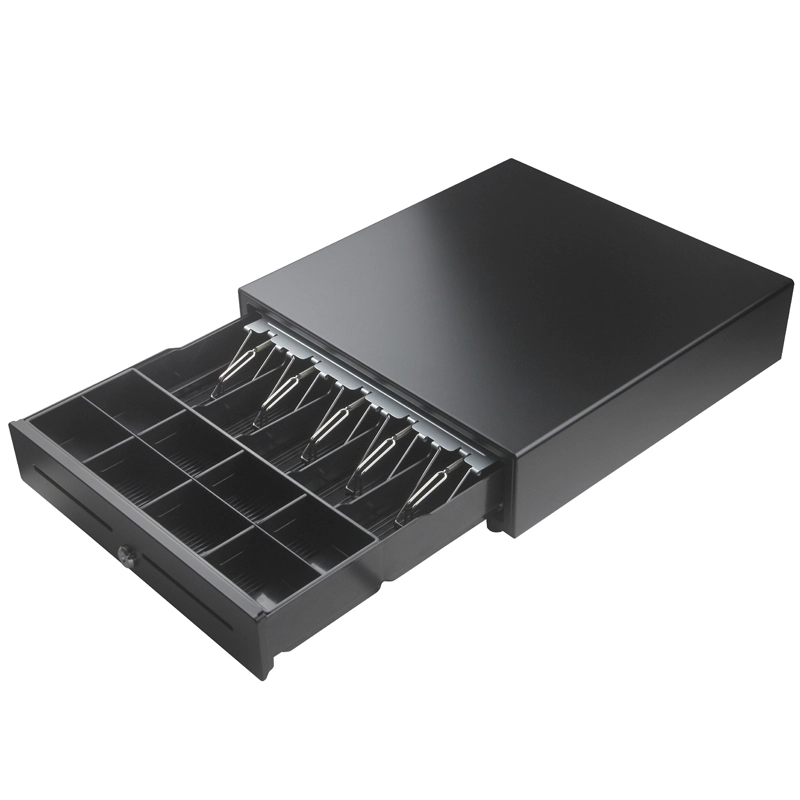

SN-CD330.
Space Reclaimed.
Countertop real estate is maximized. A highly condensed, 330mm footprint is engineered for modern, minimalist checkout environments. Uncompromised physical security is maintained within a smaller chassis.
+with+80mm+Printer+on+Top)

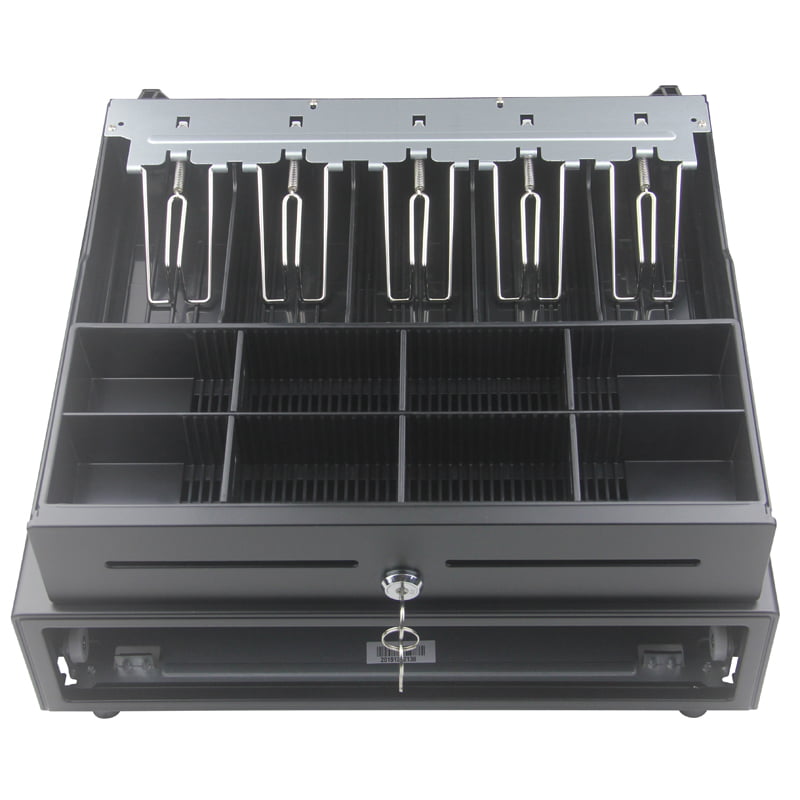

Essential Currency Management.
Internal architecture is optimized strictly for efficiency. 3 bill compartments and 4 coin trays are integrated flawlessly. High-tension metal wire clips are utilized to secure banknotes. The perfect balance between compact size and daily operational needs is achieved.

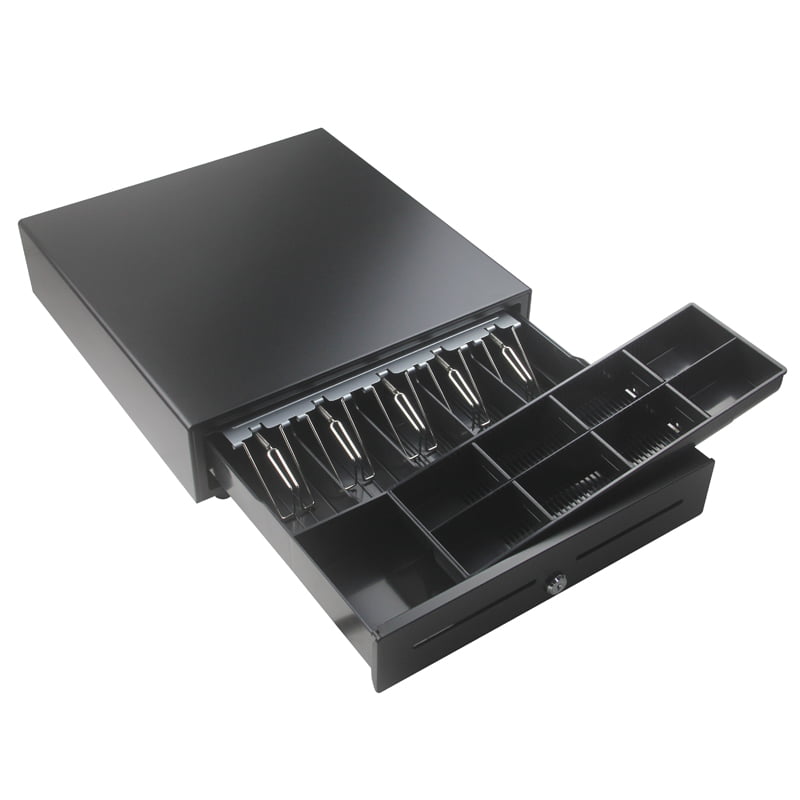

Condensed Industrial
Strength.
Durability is never sacrificed for size. The chassis is constructed entirely from thick cold-rolled steel. Heavy-duty ball bearing rollers are deployed to ensure a smooth, silent glide. Over 1,000,000 open-close operations are guaranteed by our engineering team.
Flawless POS Synchronization.
Universal Interface & 3-Position Security
A standard RJ11/RJ12 port is equipped. Electronic triggering from any major receipt printer (12V or 24V) is supported automatically.
A commercial-grade 3-position key lock is installed, allowing manual open, electronic online, and fully locked states.
Aesthetic Harmony
Ivory white and matte black finishes are offered. Your specific store aesthetics are matched perfectly, eliminating the industrial eyesore from boutique checkout counters.
Technology Specifications.
| Attribute | Specification |
|---|---|
| Model Number | SN-CD330 |
| Physical Dimensions | 330(W) x 360(D) x 90(H) mm (Without Rubber Feet) |
| Chassis Material | Thick Gauge Cold-Rolled Steel |
| Front Panel | Steel Construction (Optional Stainless Steel Front) |
| Tray Configuration | 3 Bill Compartments, 4 Coin Compartments |
| Bill Clips | Heavy-Duty Metal Wire Grippers |
| Locking Mechanism | 3-Position Key Lock (Manual, Electronic, Locked) |
| Roller System | Heavy-Duty Ball Bearing Rollers |
| Interface / Connectivity | RJ11 / RJ12 (Standard Receipt Printer Interface) |
| Solenoid Voltage | 12V / 24V (Compatible with all major printers) |
| Micro-Switch | Built-in (Provides Drawer Open/Close Status) |
| Lifecycle Durability | Tested for over 1,000,000 Operations |
| Net Weight | 3.5 KG |
| Color Options | Matte Black / Ivory White / Custom Colors (OEM) |
Engineered for Minimalist Retail.
Crowded countertops are liberated. The SN-CD330 is deployed extensively in coffee shops, food trucks, pop-up stores, and boutique retail where spatial efficiency is paramount.
Food Trucks
Corner Cafés
Boutique Retail
Streamline Your Checkout
Hardware.
System integrators and POS hardware distributors are empowered globally. Reliable stock, custom front-panel branding, and scalable OEM manufacturing are ready to be provided.
