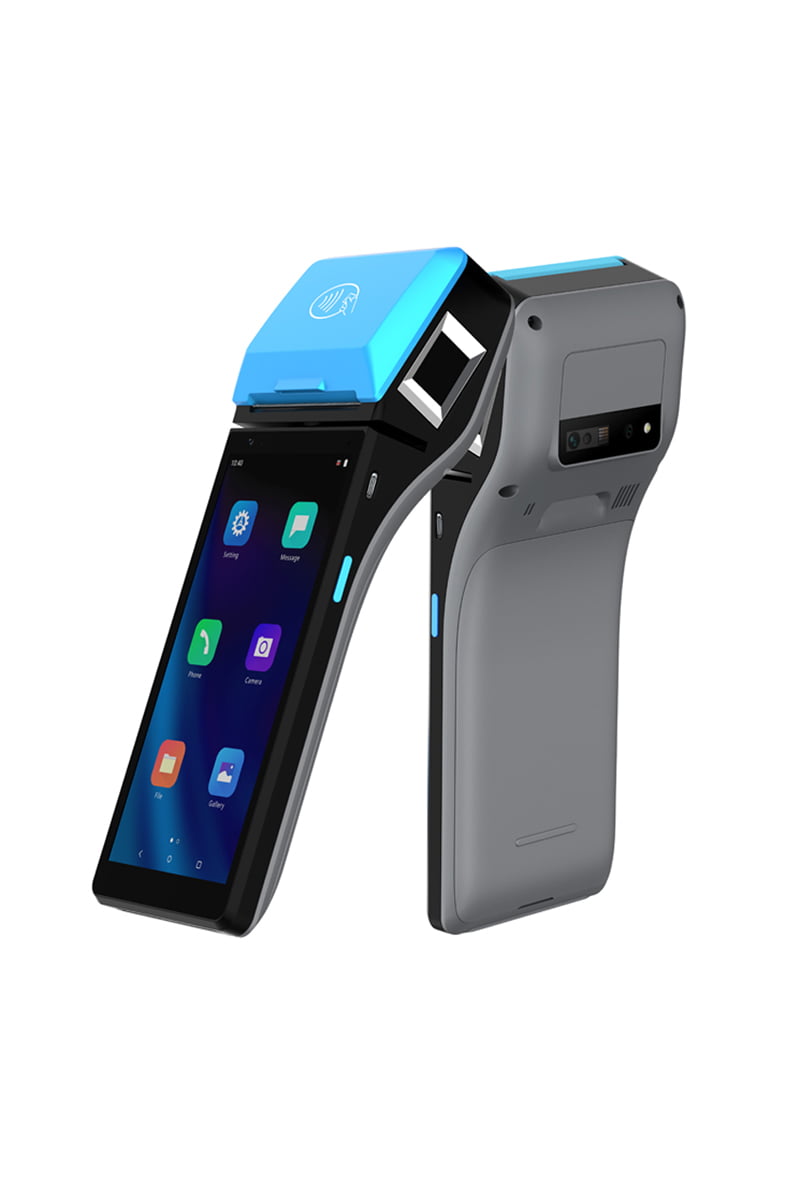

SN-H50: The Certified Financial Node.
Bank-grade security. Omnichannel payments.
Enterprise-grade transaction processing is delivered directly to the physical store. A unique dual-display architecture and stringent global financial certifications are integrated into an ultra-slim 18mm profile. Uncompromised trust is engineered into every transaction by SynqNode.
- Profile
- 18mm
- Certified
- PCI 6.x
- Displays
- Dual
Globally Certified. Universally Accepted.
Strict financial compliance is guaranteed for your software. PCI PTS 6.x and EMV L1 & L2 certifications are embedded in the hardware. Every modern payment method--including Magnetic Stripe, IC Card, Contactless NFC, QR codes, and Apple Pay--is processed seamlessly. The gateway to global commerce is secured.
Secured OS. Enterprise Scalability.
A GMS-certified Android environment is provided to ensure uncompromising data privacy. High-demand retail software is driven effortlessly by the Quad-Core processor and expanded 32GB ROM. Seamless integration with your MDM (Mobile Device Management) platforms is fully supported.
- Certified Google Mobile Services (GMS) ecosystem
- Compatible with SOTI, VMware AirWatch, MobileIron and custom MDM
- Hardware-level encryption and secure boot chain
Real Stores.
Real Synchronization.
From hypermarkets to boutique retailers, SynqNode powers the physical layer of modern commerce with reliable, purpose-built hardware nodes.
Secured OS.
Enterprise Scalability.
Data privacy is prioritized by the GMS-certified Android 11 OS. Complex retail software is driven effortlessly by the Quad-Core processor and expanded 32GB ROM. Centralized control over thousands of devices is achieved through seamless integration with your MDM (Mobile Device Management) platforms.
Android 11 GMS
Latest security patches, Play Protect and full Google service compatibility for global markets.
32GB Expanded ROM
Ample storage for offline transaction caching, receipts and multi-tenant retail applications.
MDM Integration
Deploy, monitor and update thousands of devices remotely through standard MDM APIs.
High-Speed Output. Precision Capture.
Checkout bottlenecks are eliminated. Receipts are generated rapidly at 80mm/s by the premium Seiko thermal printer. Faded or scratched barcodes are captured flawlessly in 0.1 seconds by the professional Zebra 4710 2D engine. High-frequency workflows are handled with absolute precision.

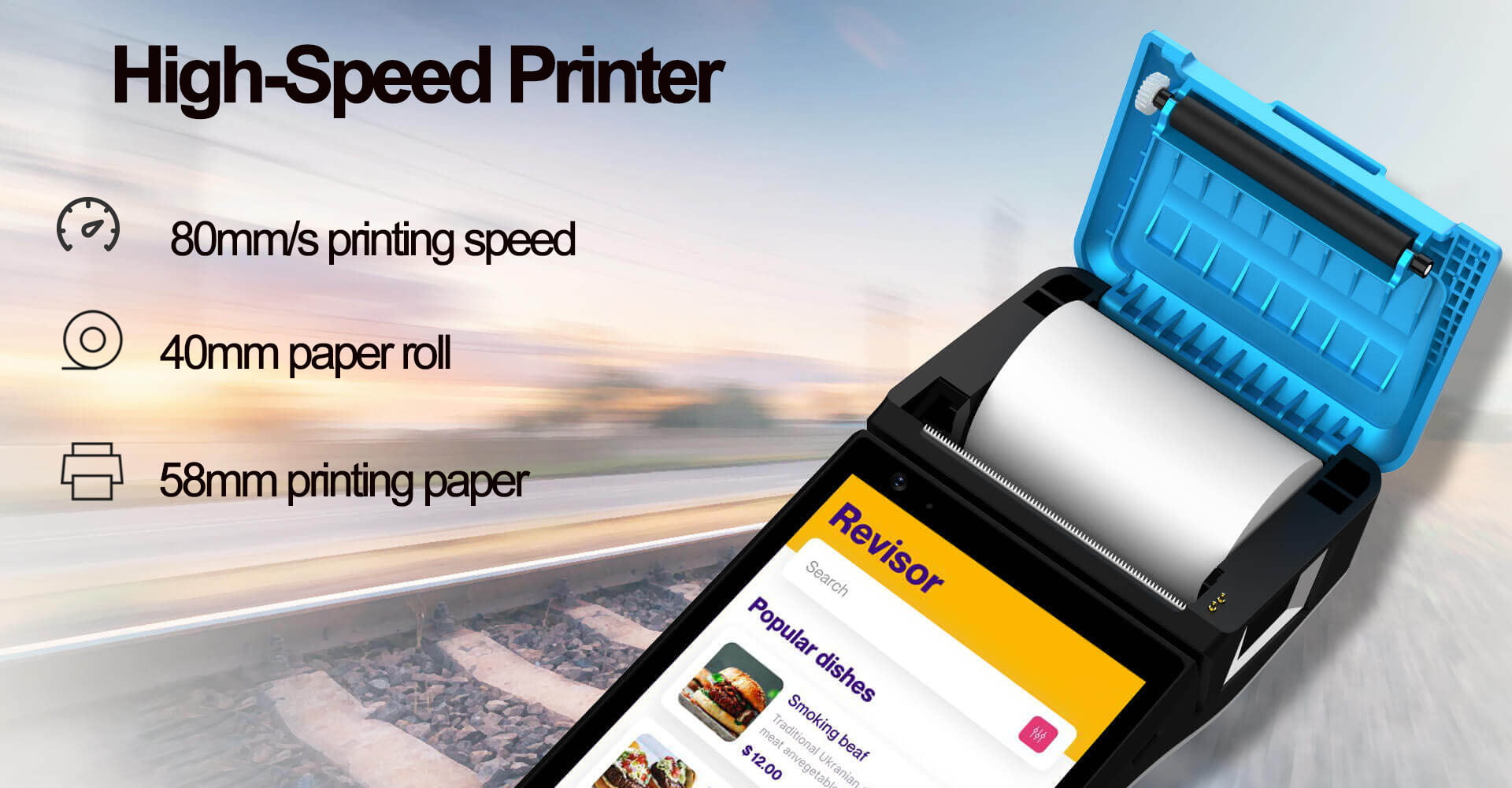

Premium Seiko Thermal Printer
Enterprise-grade Japanese thermal head engineered for millions of print cycles.
- Speed
- 80mm/s
- Width
- 58mm
- Roll
- 40mm

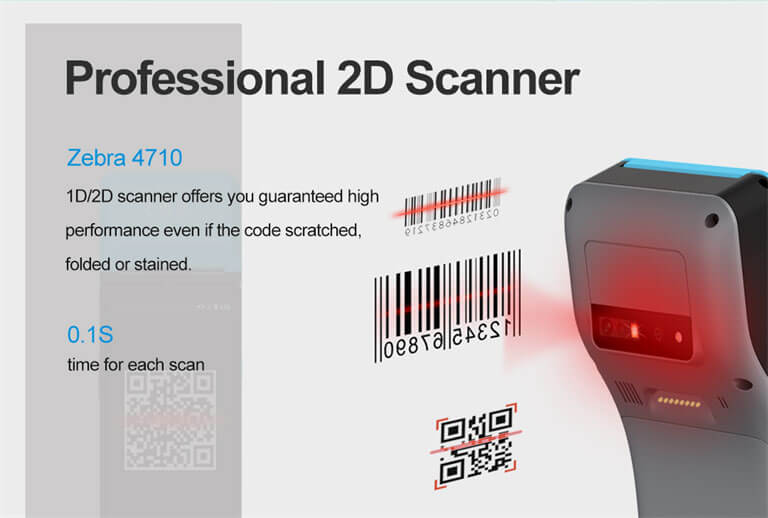

Zebra 4710 2D Scan Engine
Industry-leading optics for damaged, curved and low-contrast barcode capture.
- Capture
- 0.1s
- Type
- 1D/2D
- Rating
- Pro
Biometric Security. Fiscal Readiness.
Targeted requirements for specialized industries are met. Advanced identity verification is enabled by an optional FBI-certified fingerprint reader. Strict tax compliance is supported by dedicated Fiscal Modules. Continuous operation is ensured through a multi-functional Pogo Pin charging cradle equipped with USB and RJ45 ports.
FBI-Certified Fingerprint
Biometric identity verification for government, healthcare and financial workflows.
Fiscal Compliance Module
Dedicated tax control modules for regulated markets and fiscal reporting requirements.
Multi-Function Pogo Cradle
Pogo Pin charging base with integrated USB and RJ45 ports for continuous operation.
SN-H50 Pro Specifications
Complete technical breakdown of the SN-H50 financial-grade handheld POS terminal.
| Component | Specification |
|---|---|
| Operating System | Android 11.0 (GMS Supported) |
| Processor & Memory | Quad-Core ARM Cortex-A53 2.0GHz / 2GB RAM + 32GB ROM |
| Main Display | 6-inch TFT IPS LCD (1440×720) |
| Customer Display | Dedicated 128×36 Resolution Screen |
| Payment SecurityCore | PCI PTS 6.x, EMV L1 & L2, PayPass, payWave, Amex, Discover |
| Card Readers | Magstripe, IC Card, NFC Contactless |
| Thermal Printer | 58mm High-speed (80mm/s), 40mm Roll (Seiko head) |
| Barcode Scanner | Zebra 4710 2D Scan Engine (Optional) |
| Biometrics | FBI-certified Fingerprint Reader (Optional) |
| Battery & Charging | 7.4V / 2600mAh (3300mAh Optional) / USB Type-C & Pogo Pins Base |
Certify Your Payment
Hardware Today.
Leading payment aggregators and POS software developers rely on SynqNode. Whether full PCI certification or a customized SoftPOS configuration is required, our engineering team is ready to assist. Bulk orders and global deployments are welcomed.
