The AIO-X Series.
Infinite Scale. Next-Generation Edge Intelligence.

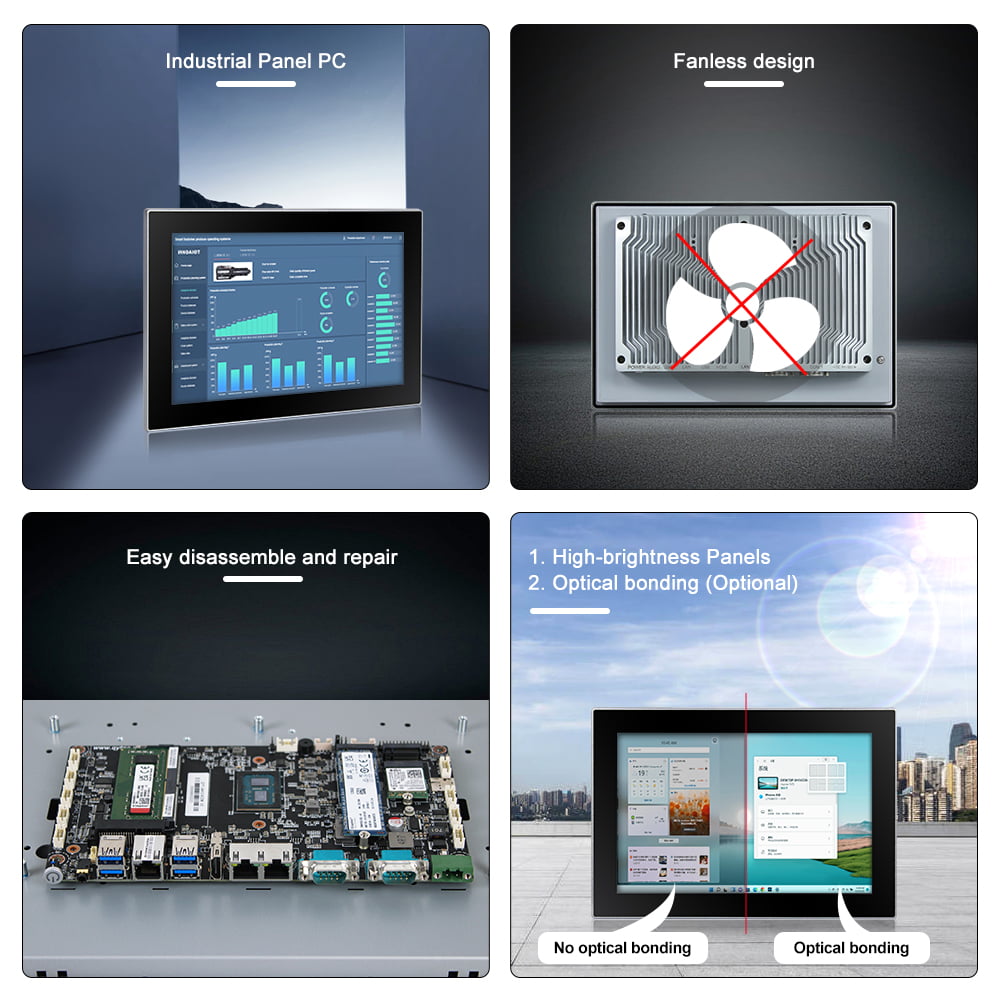

A revolutionary hardware architecture is delivered across ten exact display sizes, from a compact 10.1" to a massive 27". Driven by 12th Gen Intel® Core™ processors, the AIO-X Series is engineered to unify your entire industrial infrastructure under one immensely powerful platform.
Unprecedented Processing Power.
Industrial control is redefined. The latest 12th Gen Intel® Core™ processors are paired with high-speed DDR5 memory and NVMe SSD storage. Massive industrial datasets and complex machine vision tasks are processed flawlessly.
Furthermore, hardware-level encryption is guaranteed by the integrated TPM 2.0 module, ensuring your facility's data remains impenetrable to cyber threats.
Absolute Environmental Resilience.

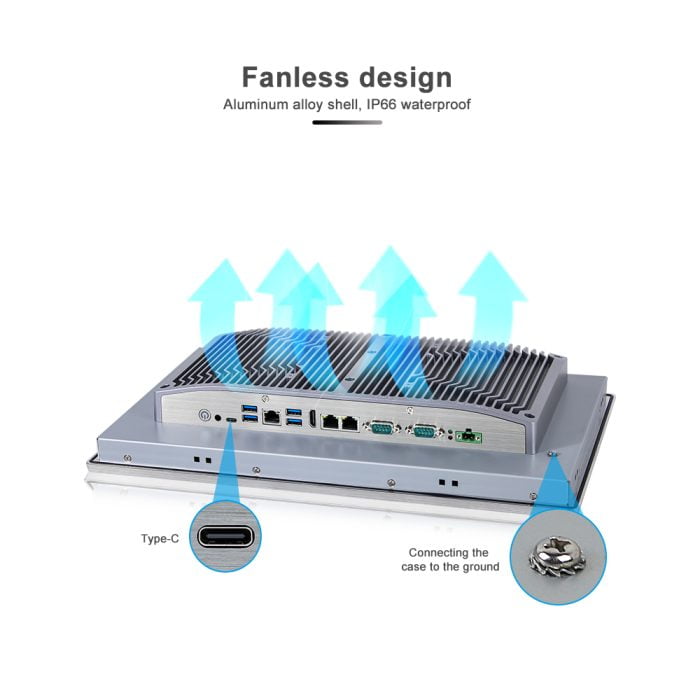

A true-flat, IP66-rated front panel is housed within a premium anodized aluminum alloy chassis. Water, dust, and oil ingress are prevented entirely.
Engineered for extremes, stable 24/7 operations are sustained in harsh temperatures ranging from -20°C to +70°C. Power anomalies are neutralized by comprehensive OVP/OCP/RPP protections.
)
Brilliant Clarity.
Flawless Interaction.
Projected Capacitive (PCAP) multi-touch technology is utilized for intuitive, immediate responses across all 10 sizes.

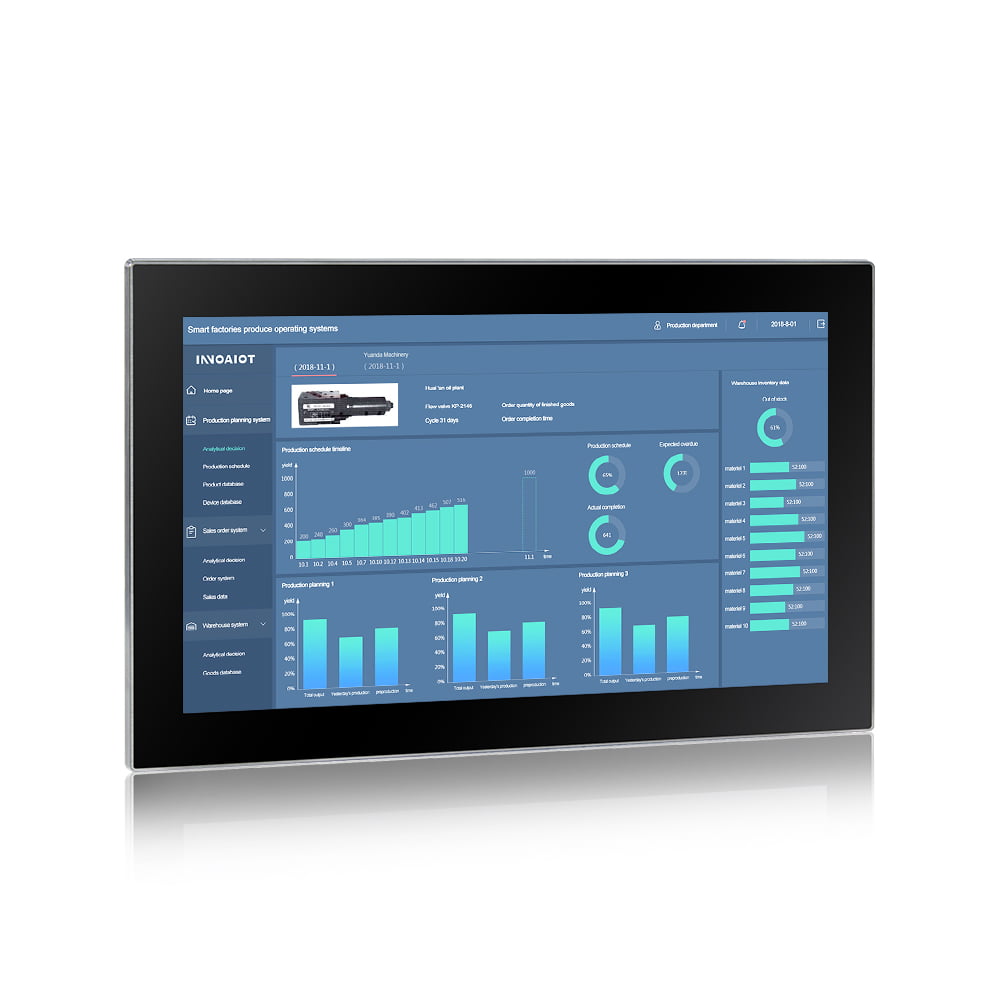

For environments with severe glare or high humidity, advanced Optical Bonding is offered as an option. Air gaps are eliminated, light reflection is minimized, and screen durability is enhanced significantly.
- 10-Point Responsive Touch
- Anti-Glare (AG) Coating Available
- Zero Fogging via Optical Bonding
Bridge the Past. Connect the Future.

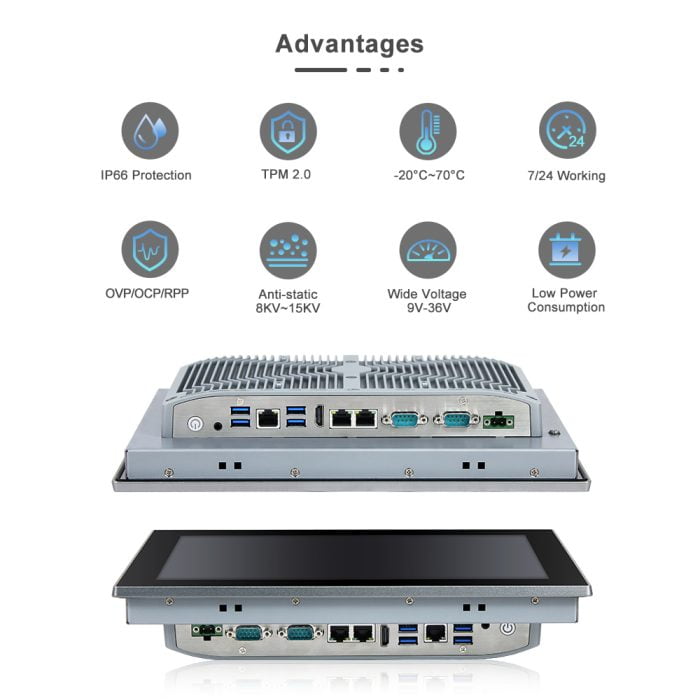

A highly versatile I/O architecture is integrated. Legacy automation equipment is synchronized effortlessly via multiple RS232/422/485 COM ports. Meanwhile, high-bandwidth data transmission is secured by dual LAN ports (including ultra-fast 2.5GbE) and modern Type-C interfaces.
AIO-X Series Technical Specifications
Part 1: Core Architecture (Shared across all sizes)
| Processor | 12th Gen Intel® Core™ i3 / i5 / i7 (Whiskey Lake / Alder Lake architecture) |
|---|---|
| Memory | 2* DDR5 SDRAM Slots, Maximum support up to 64GB |
| Storage | 2* M.2 2280 slots (Supports NVMe or SATA SSD) |
| Security | Hardware TPM 2.0 encryption, Intel vPro® Essentials supported |
| Networking | 1* Intel® 2.5GbE LAN + 1* Intel® 1GbE LAN (Supports Wake-on-LAN, PXE) |
| I/O Ports |
2* RS232/422/485 (Automatic flow control), Expandable up to 6* COM 4* USB 3.2, 1* Type-C, 1* HDMI output, Audio I/O |
| Power Supply | 9V to 36V Wide Range DC Input (Supports OVP / OCP / RPP) |
| Environment | Operating Temp: -20°C ~ +70°C / Anti-static (8KV-15KV) / Fanless Design |
| Material | IP66 grade Aluminum Alloy front panel, Anodized treatment |

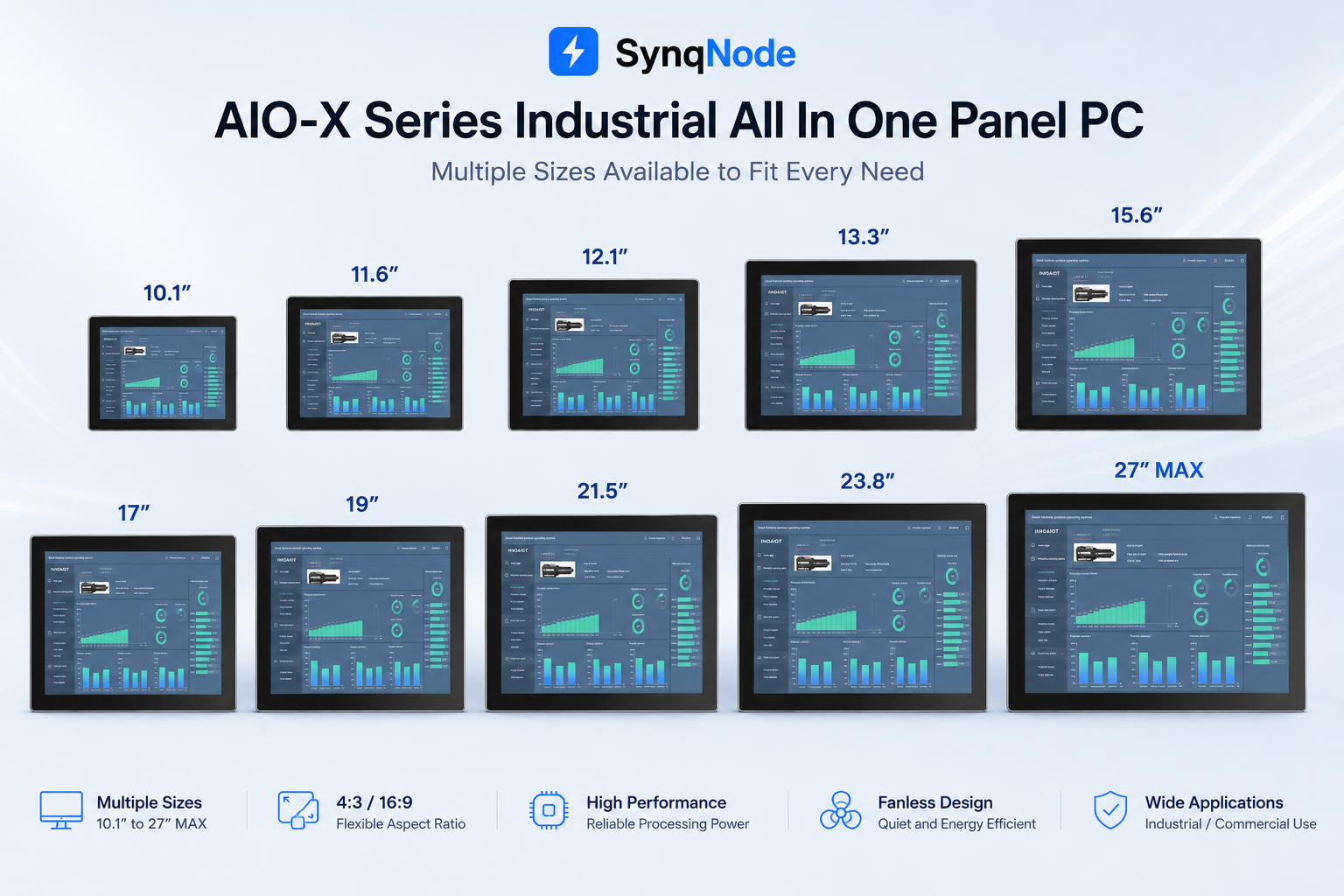

Part 2: Display Options (10 available sizes)
One Architecture.
Infinite Possibilities.
Whether embedded directly into CNC machinery or VESA-mounted as a factory dashboard, the SN-X Series adapts to your needs. Hardware consistency is achieved across your entire enterprise. Custom configurations, OEM branding, and volume pricing are readily provided by the SynqNode team.
