SynqNode SN-X77
Industrial Node.
Relentless Performance.
Unrestricted Connectivity.
The ultimate fanless edge computing node is presented here. Engineered specifically for complex industrial environments, the SN-X77 provides an indestructible foundation for your POS, Kiosk, and automation networks.
Commercial-Grade
Processing Power.
High-frequency data is processed effortlessly. Powered by the Intel® Core™ i5-8250U processor, complex tasks are handled with a 15W ultra-low thermal design. Efficiency and stability are maintained perfectly.
Limitless Peripheral Integration.

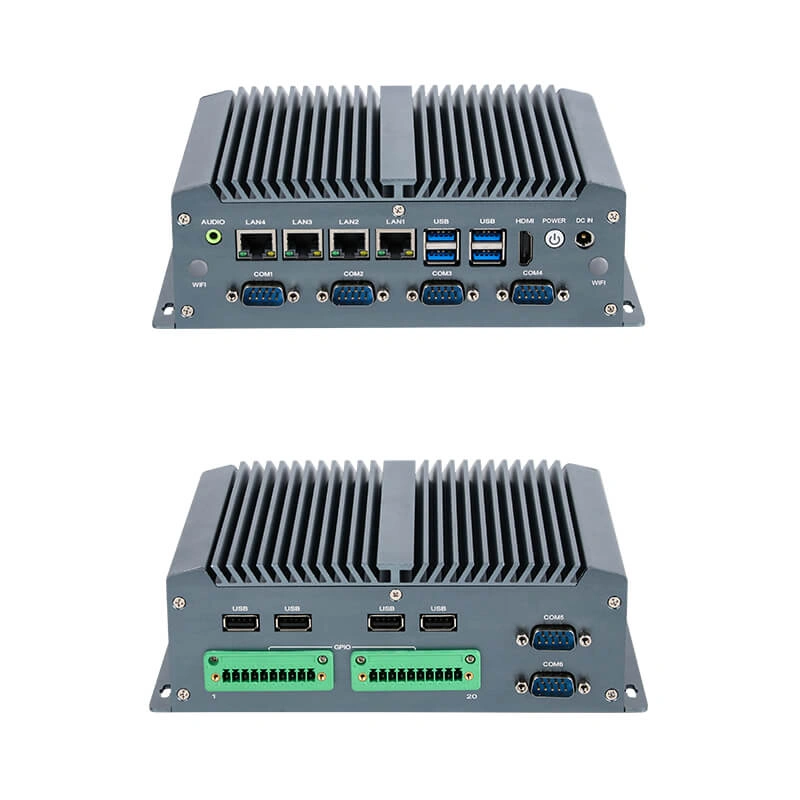

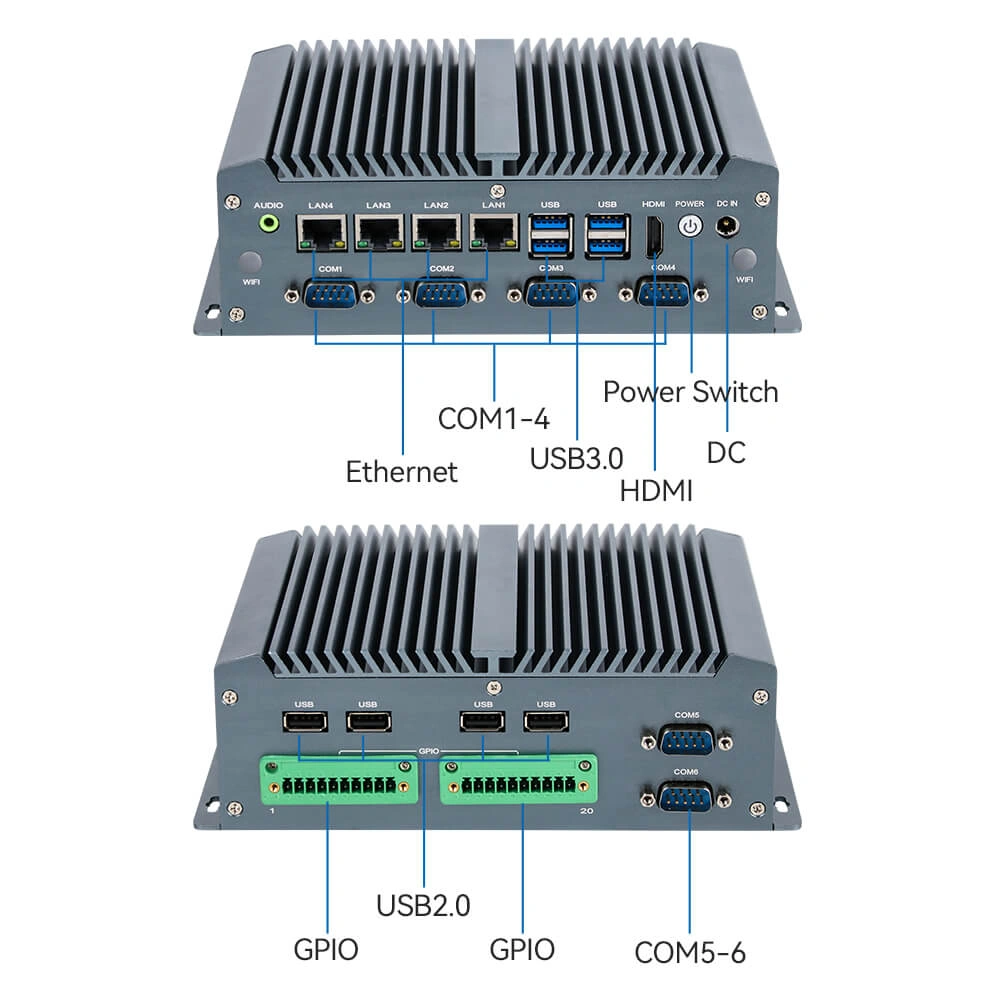

The connectivity bottleneck is eliminated. Featuring 4x Gigabit Ethernet ports (Intel i211) and 6x COM interfaces (RS232/422/485), legacy hardware and modern high-speed sensors are connected seamlessly to a single hub.
-
LAN
4* LAN:
High-speed network redundancy.
-
COM
6* COM:
Connect legacy barcode scanners, scales, and industrial sensors.
-
USB
8* USB:
(4x USB 3.0, 4x USB 2.0) for diverse POS peripherals.

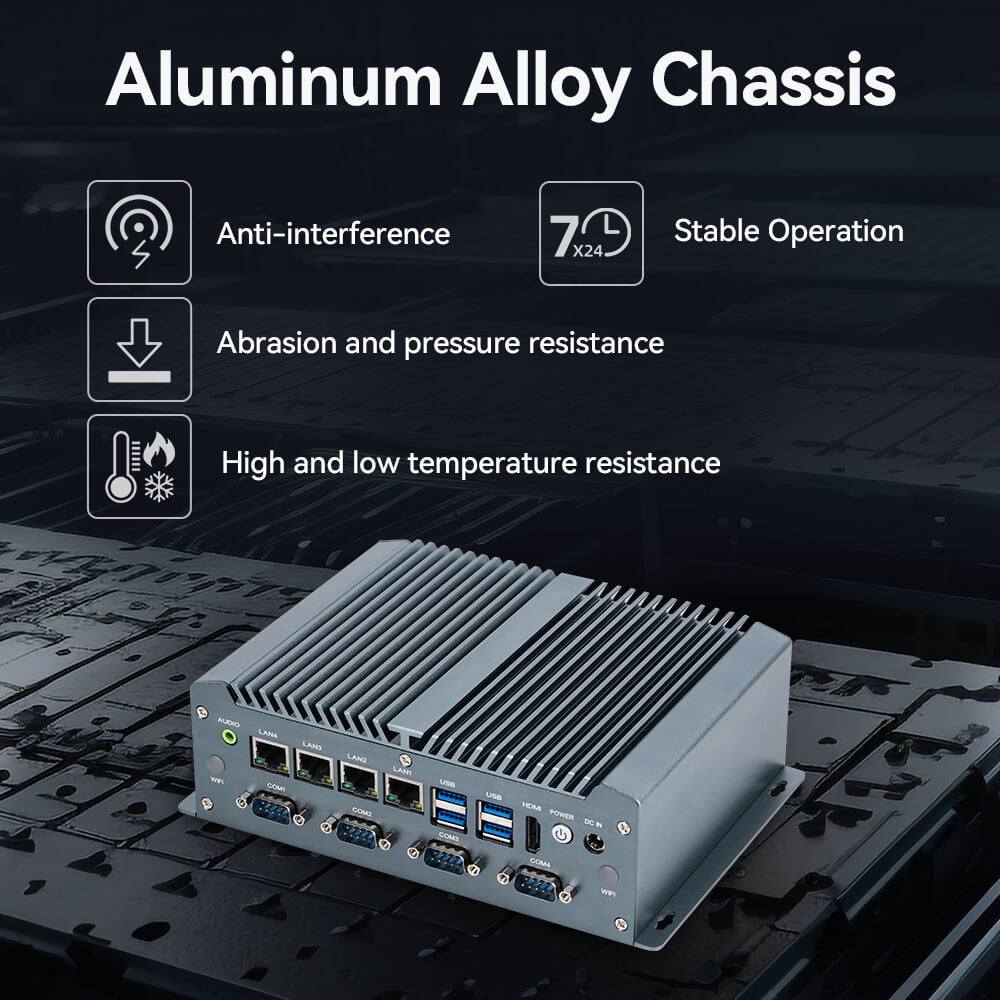

Aluminum Alloy Chassis.
Aluminum alloy material has excellent anti-interference ability, can effectively shield electromagnetic interference, ensure stable data transmission and accurate processing, so that the equipment can run stably and "calmly" in an industrial environment full of interference, and work 24 hours a day. Its wear-resistant and pressure-resistant properties can resist the bumps and wear in daily use, withstand the harsh tests of industrial sites, and extend the service life of the equipment.
Technical Specifications
| Model | SN-X77 |
|---|---|
| Processor (CPU) | Intel® Core™ i5-8250U (4 Cores, 8 Threads, up to 3.4GHz) |
| Memory (RAM) | 1 x SODIMM DDR4, Max up to 32GB |
| Storage | 1 x M.2 NVMe 2280 SSD + 1 x 2.5" HDD/SSD Support |
| Network | 4 x LAN Intel I211 Gigabit Ethernet Customizable PoE Support |
| Serial Ports | 6 x COM (2*RS232/422/485, 4*RS232) |
| Display Output | 1 x HDMI 1.4, 1 x Built-in LVDS (Supports Synchronous/Asynchronous Dual Display) |
| Power Input | DC 9V-36V Wide Voltage |
| Cooling System | Fanless Aluminum Alloy Chassis |
| Operating Temp | -20°C to +70°C |
| Dimensions | 205mm * 144mm * 64mm |
Forged in Aluminum.
Engineered for Silence.
Moving parts are completely removed. A deeply finned aluminum alloy chassis is utilized for passive heat dissipation. Dust, vibrations, and extreme temperatures are repelled effectively, guaranteeing 24/7 zero-maintenance operation.
