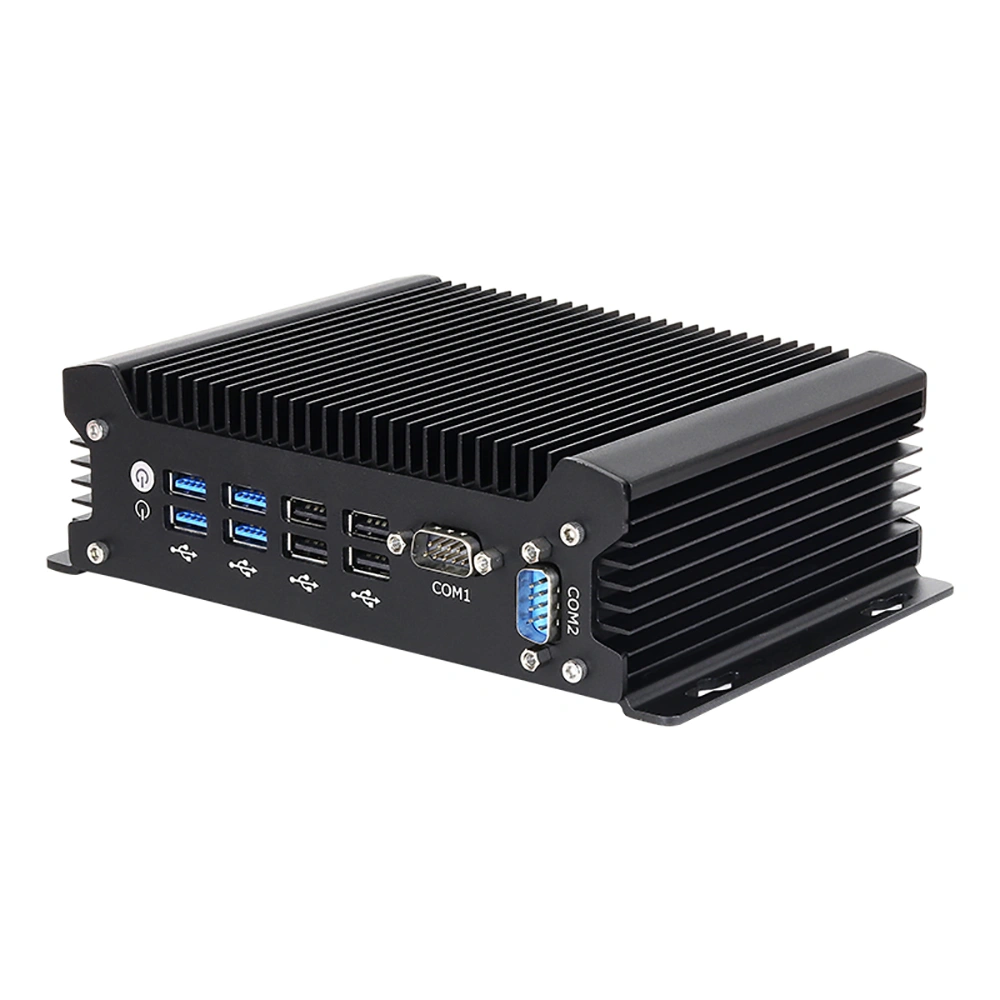

SynqNode
SN-X58.
The Rugged Edge Node.
Industrial-grade connectivity is redefined. Engineered for the harshest IoT and retail environments, the SN-X58 bridges the gap between complex legacy peripherals and modern cloud networks. Unyielding processing power is delivered within a deeply armored, fanless chassis.
Forged for the Extremes.
Active cooling mechanisms are entirely eliminated. Heat is dissipated passively through the extruded aluminum shell. Dust accumulation and mechanical wear are prevented.
Flawless 24/7 operation from -20°C to +60°C is guaranteed, making it the ultimate backbone for outdoor kiosks and unventilated factory floors.
Engineering Unveiled.
Every millimeter of the SN-X58 is scrutinized. Watch how industrial-grade durability and expansive connectivity are seamlessly integrated into a rugged, fanless form factor.

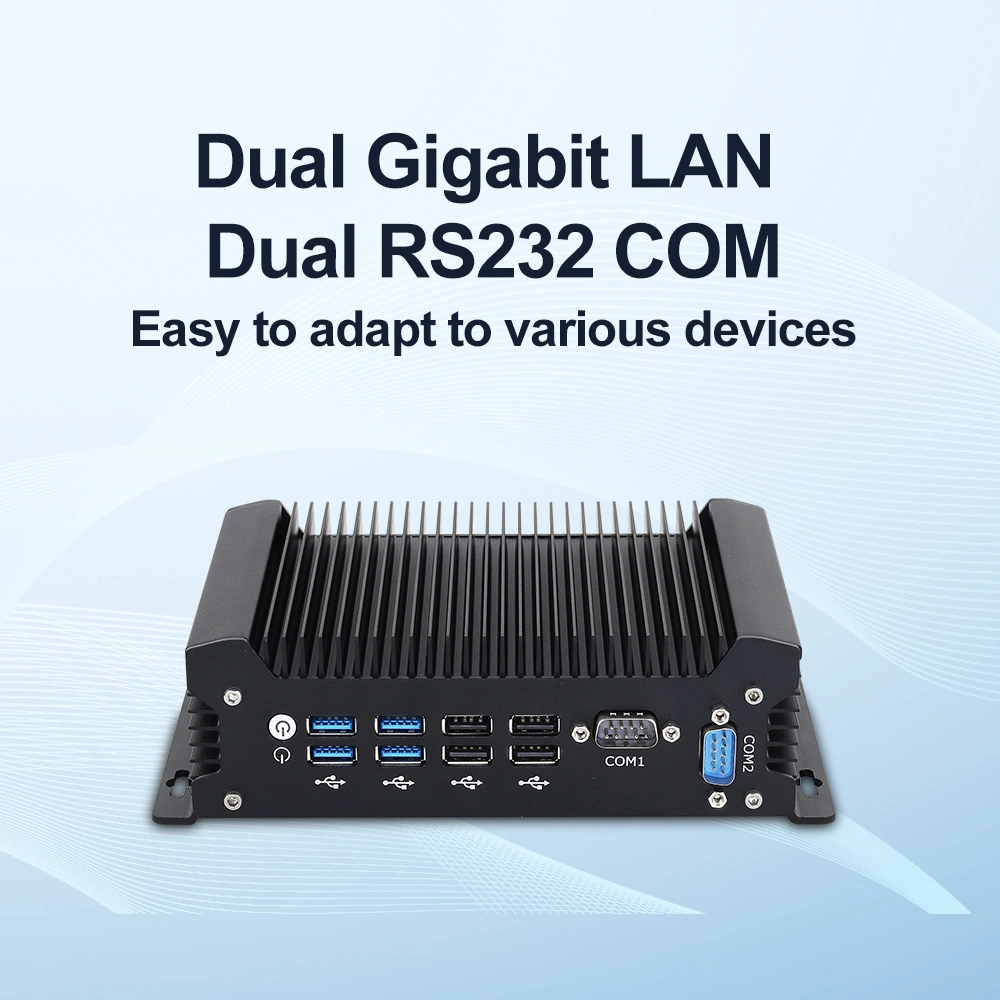

The IT-OT Convergence Hub.

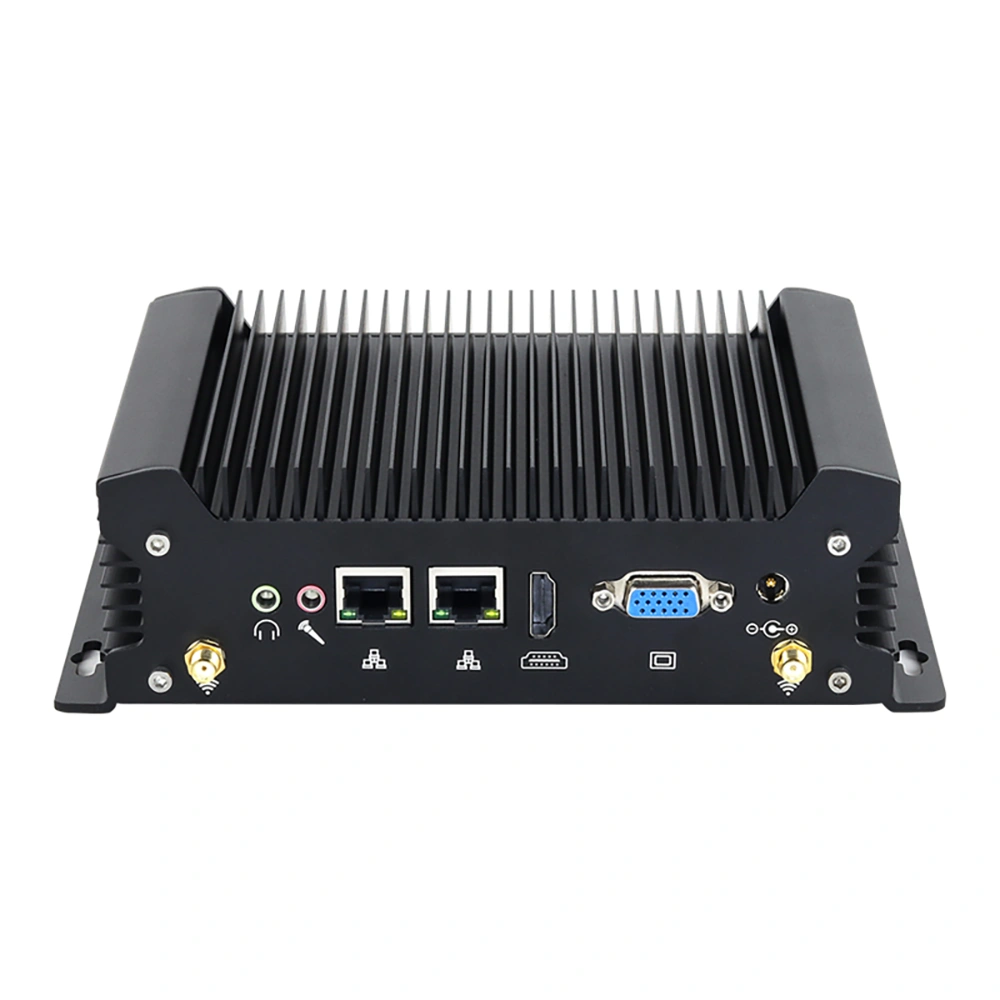

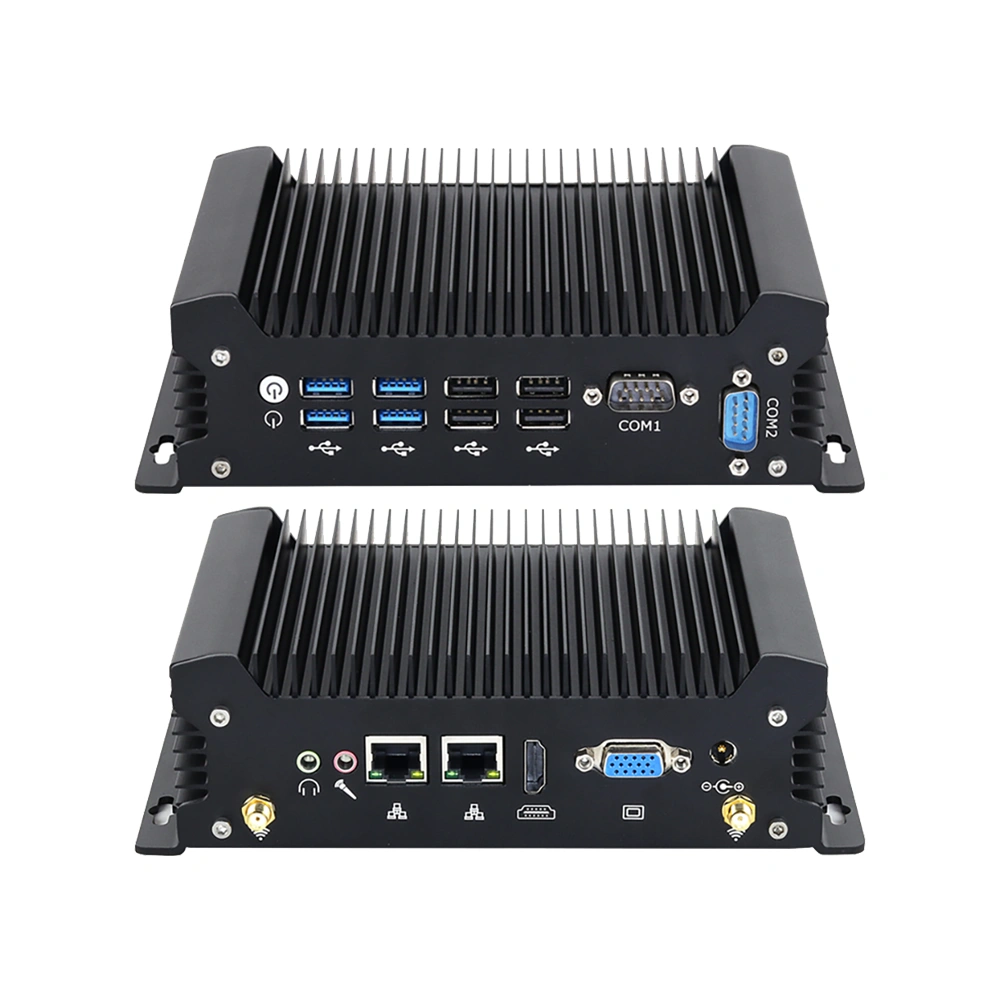

Connectivity bottlenecks are shattered. Dual Gigabit LAN ports are provided for secure internal/external network isolation. Legacy industrial equipment is integrated effortlessly via dual RS232 COM ports.

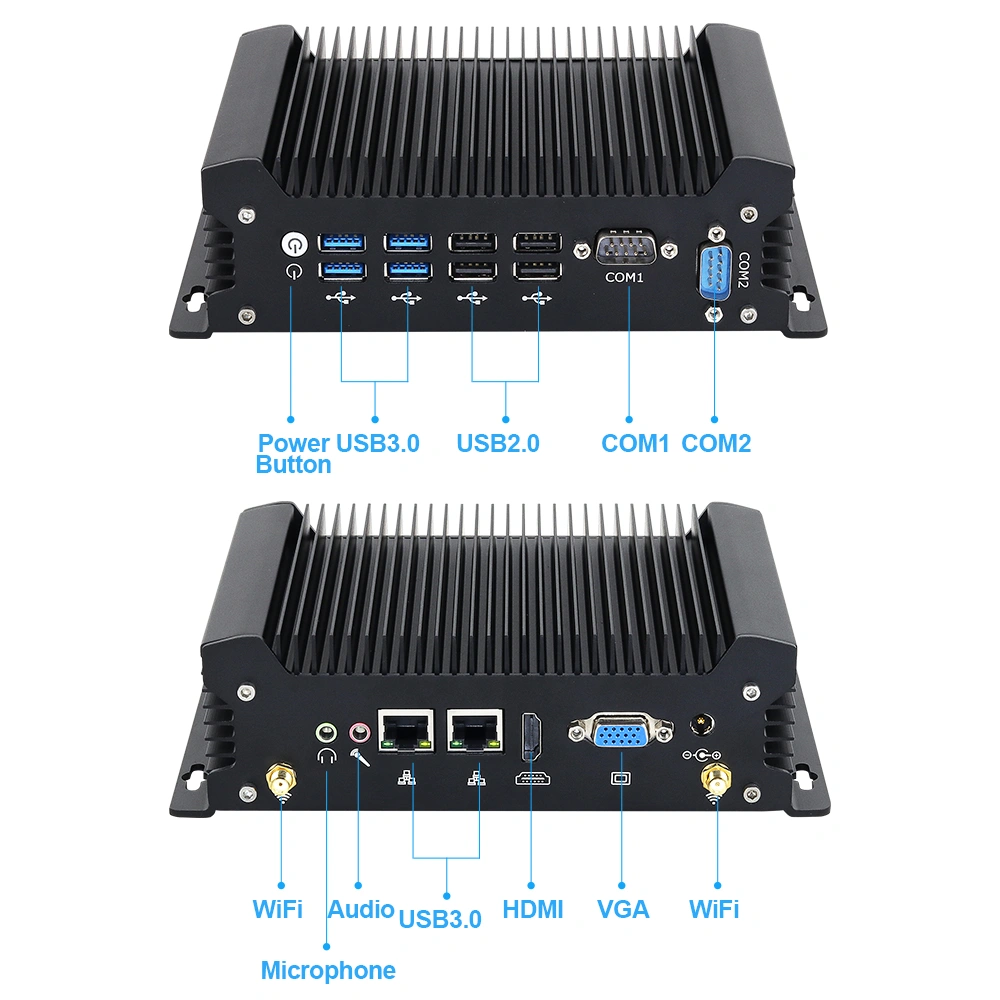

USB Interfaces
Every scanner, printer, and sensor synchronized perfectly.
Gigabit LAN
Secure internal and external network isolation.
RS232 COM
Legacy equipment integration handled flawlessly.

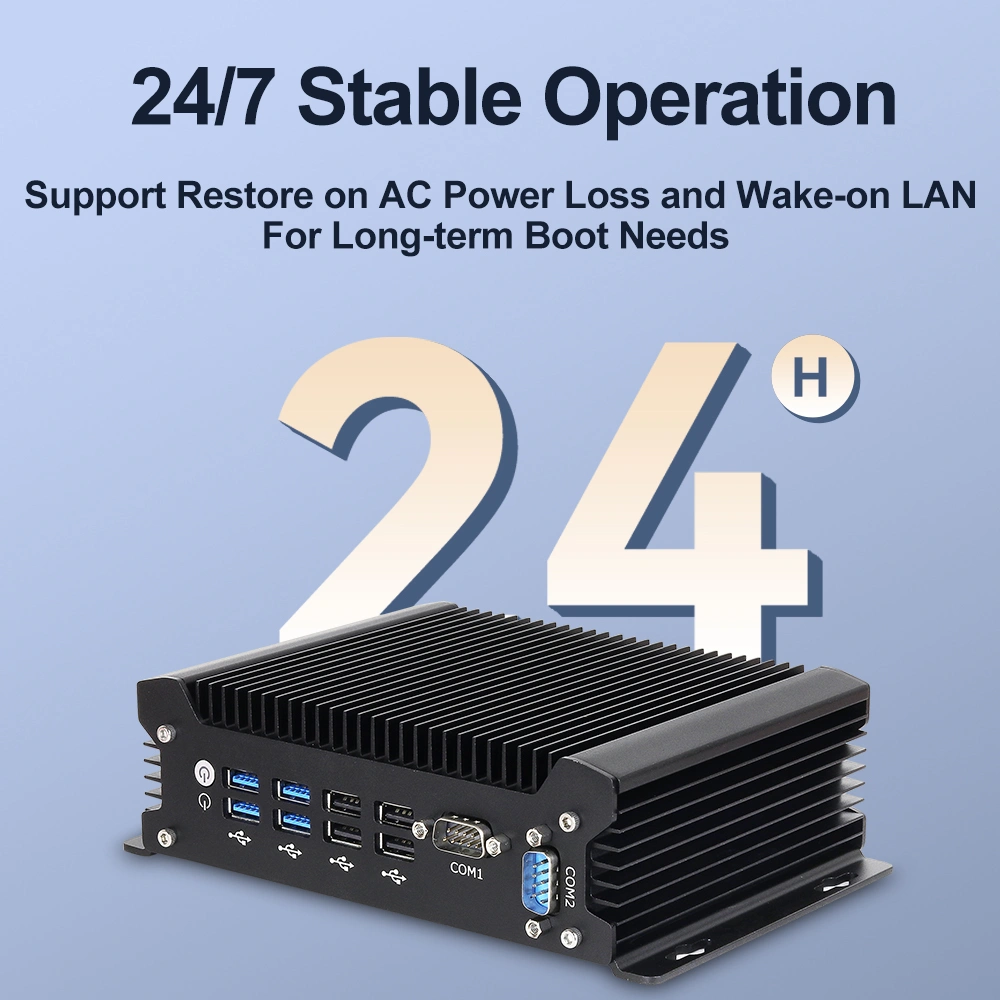

Engineered for Unattended Operations.
Manual intervention is minimized. Once deployed, the SN-X58 manages itself, significantly reducing your on-site maintenance costs.
Hardware Watchdog
Hardware-level Watchdog timers are integrated to auto-recover instantly from unexpected system stalls or application freezes.
Auto Power-On
Restore on AC Power Loss is fully supported. The system boots automatically when power is restored without pressing a button.
Wake-on-LAN (WOL)
Remote IT administration is enabled. Power up your fleet of nodes securely across the network for off-hours maintenance and updates.
Scalable Architecture.
Unlimited Potential.
Your operational capabilities are expanded. Configure the SN-X58 for any remote or visual application.
Cellular Connectivity.
For remote deployments without wired networks, seamless connectivity is maintained via onboard SIM slot and optional 3G/4G Mini-PCIe cellular modules.

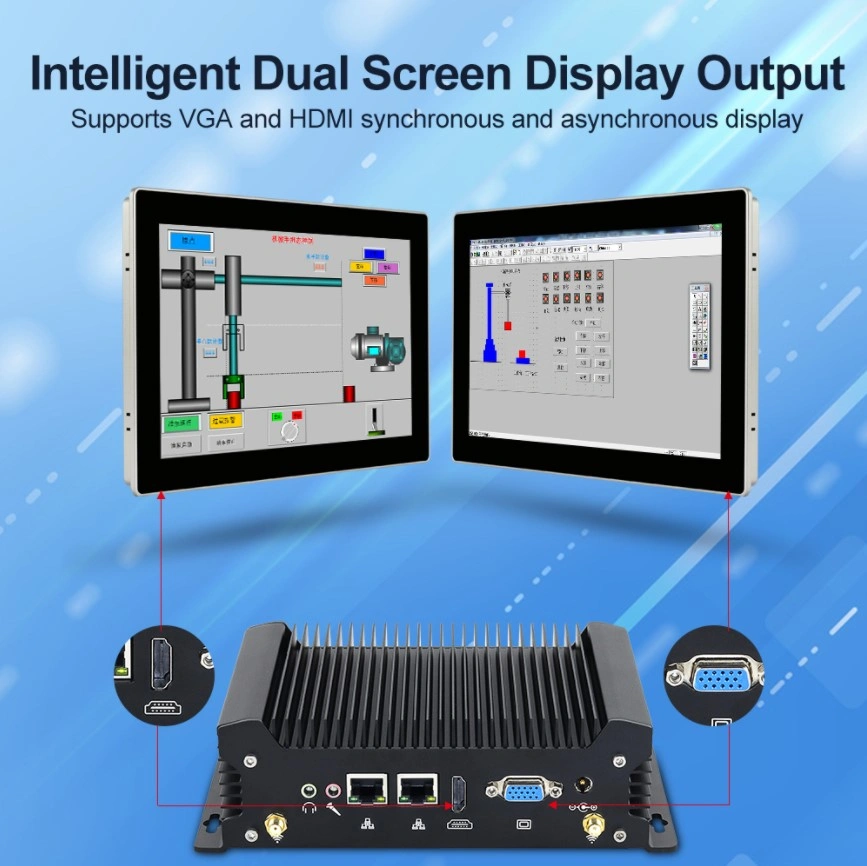

Synchronous Dual Display.
High-definition dual displays (HDMI + VGA) are driven simultaneously, perfect for dynamic retail signage, POS stations, and control room monitoring.
SN-X58 Technical Specifications
| Model | SynqNode SN-X58 (Rugged Embedded Host) |
|---|---|
| Processor Architecture |
Scalable Intel® Core™ i3 / i5 / i7 Processors (Available in 4th, 6th, 7th, 8th, and 10th Gen configurations) |
| Memory (RAM) |
4th Gen: DDR3L SODIMM (Max 8GB) 6th~10th Gen: DDR4 SODIMM (Max 16GB / 32GB depending on CPU) |
| Storage Subsystem |
1* mSATA SSD Slot 1* M.2 2280 Slot (Supports SATA/NVMe, varies by Gen) 1* 2.5-inch SATA HDD/SSD Bay |
| Networking (LAN) | 2* Gigabit Ethernet (Realtek 8111H, supports Network Isolation) |
| Serial Communication | 2* RS232 DB9 COM Ports |
| USB Interfaces | 8* USB Ports (4* USB 3.0, 4* USB 2.0) |
| Display Output | 1* HDMI, 1* VGA (Supports synchronous & asynchronous dual display) |
| Expansion Slots |
1* Mini-PCIe Slot (Supports Wi-Fi / Bluetooth or 3G/4G Modules) 1* SIM Card Slot (Onboard) |
| Hardware Management | Watchdog Timer, Wake-on-LAN (WOL), Auto Power-On |
| Cooling & Material | Fanless Passive Cooling, Extruded Aluminum Alloy Chassis |
| Operating Environment | Temp: -20°C to +60°C | Humidity: 10% ~ 90% (Non-condensing) |
| Dimensions & Weight | 193.9mm * 127mm * 57.2mm | Approx. 1 KG |
| Supported OS | Windows 7/8/10, Windows 11, Linux (Ubuntu), WES 7/10 |
Build Your Industrial Backbone Today.
Whether powering a smart factory assembly line or a nationwide network of retail kiosks, the SN-X58 is configured specifically for your project. Bulk pricing, ODM chassis modifications, and custom OS imaging are available immediately.
Ready for immediate global deployment.
