SN-X46G.
The High-Performance Automation Node.
Advanced processing power is delivered in a rugged, fanless architecture. Driven by Intel® Core™ technology, the SN-X46G is engineered specifically for demanding industrial automation, CNC machining, and high-resolution digital signage.
)
Uncompromised Speed.
Heavy data workloads are processed effortlessly. High-frequency DDR4 memory and ultra-fast M.2 SSD storage (NVMe/SATA auto-adaptive) are utilized to ensure rapid system response.
Bottlenecks in complex industrial tasks, database hosting, and high-definition multimedia processing are eliminated entirely.
Silent. Dust-Proof.
Thermally Stable.

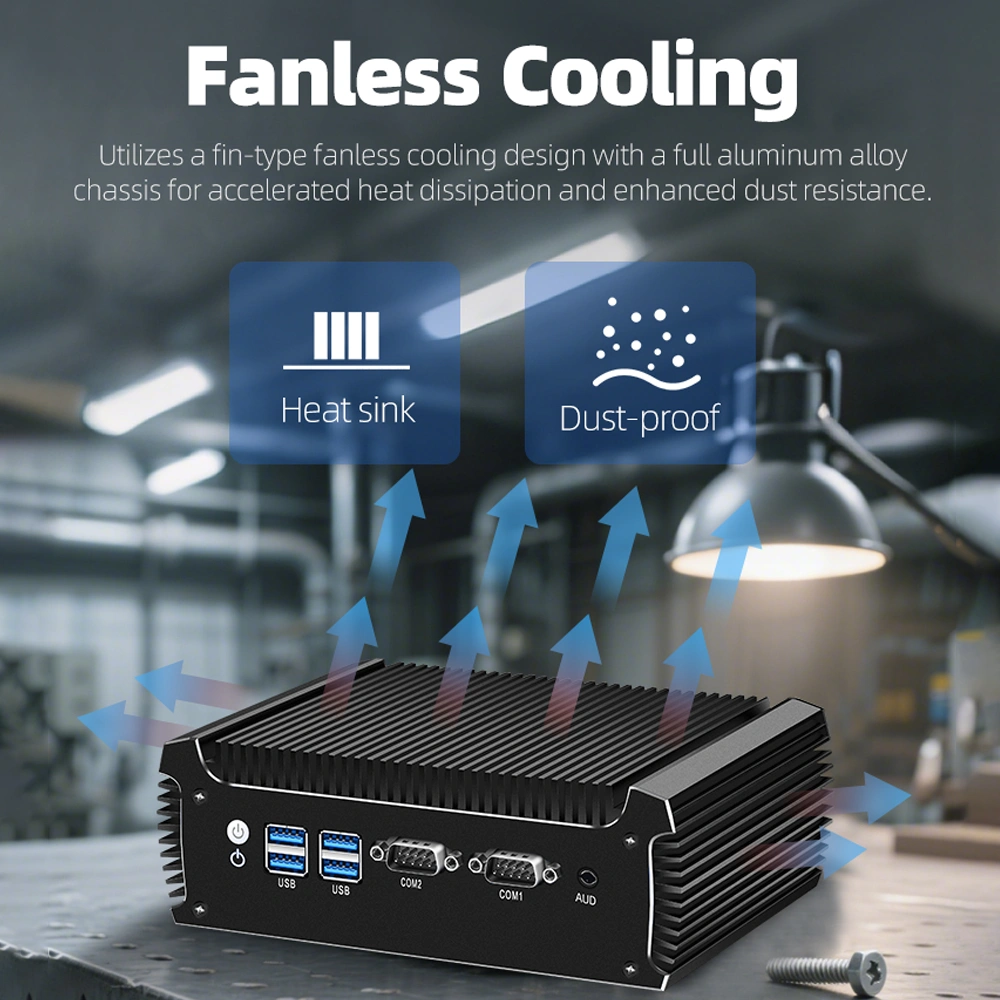

A completely fanless cooling architecture is constructed. Heat is dissipated efficiently through the deeply finned aluminum chassis.
Optimal operating temperatures are maintained even in harsh manufacturing environments (-10°C to 60°C). Mechanical wear is prevented, extending the hardware lifespan significantly.

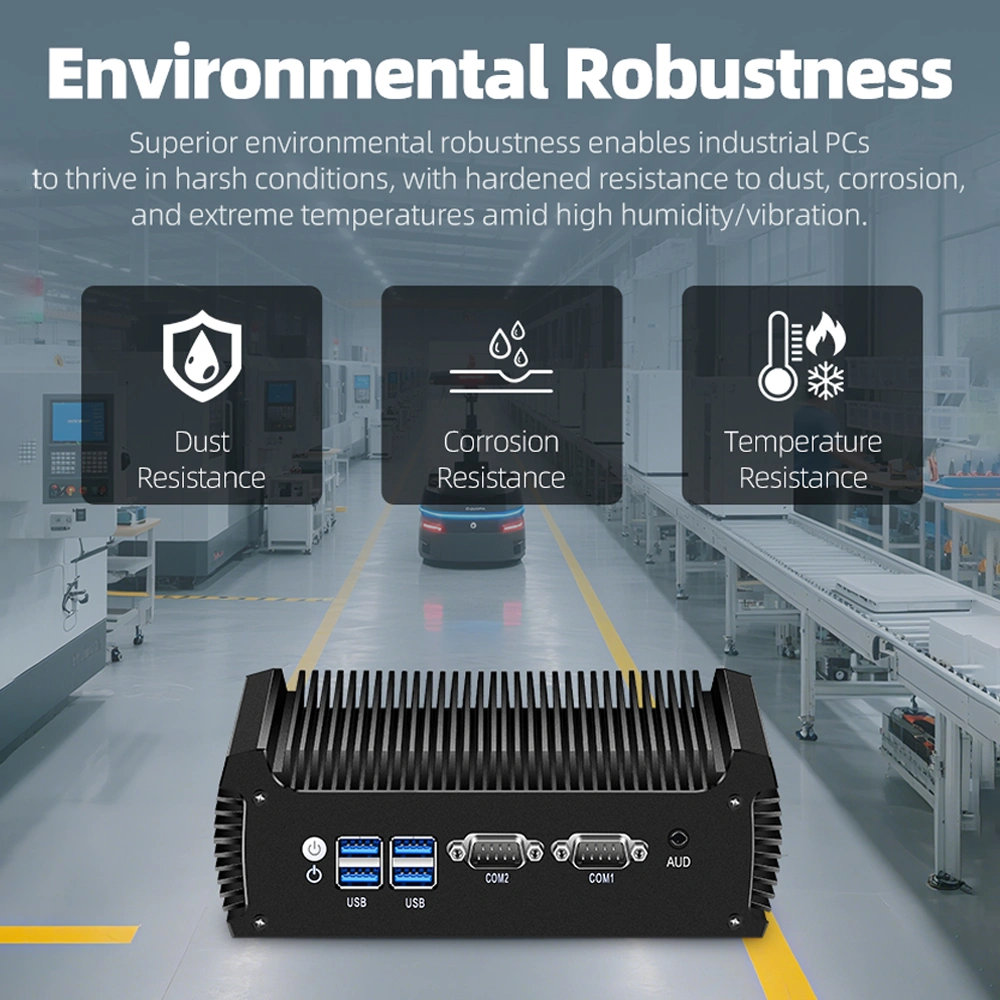

Engineered for Extremes.

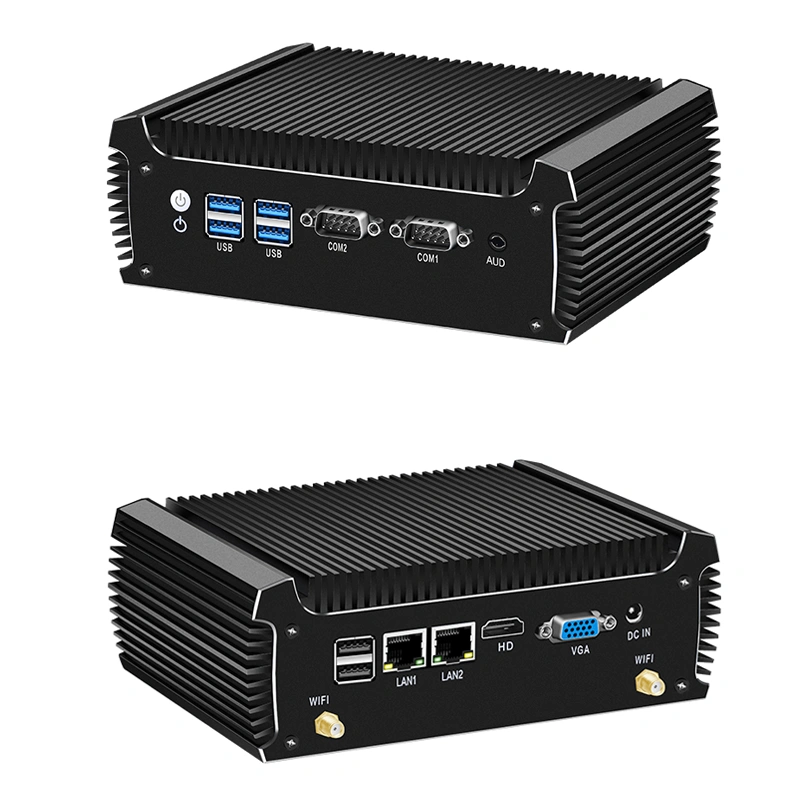

Take a closer look at the heavy-duty aluminum chassis, expansive I/O ports, and the industrial-grade engineering that powers the SN-X46G.
The RS485
Integration Advantage.

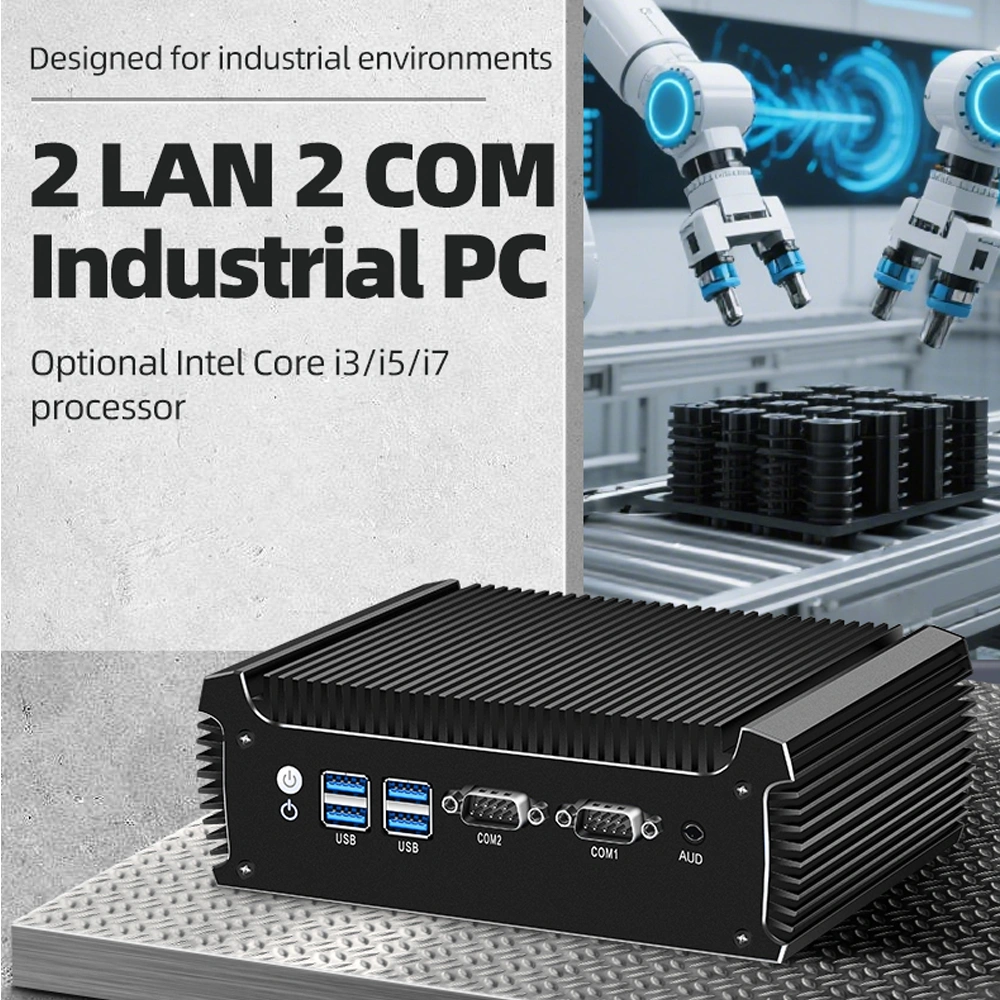

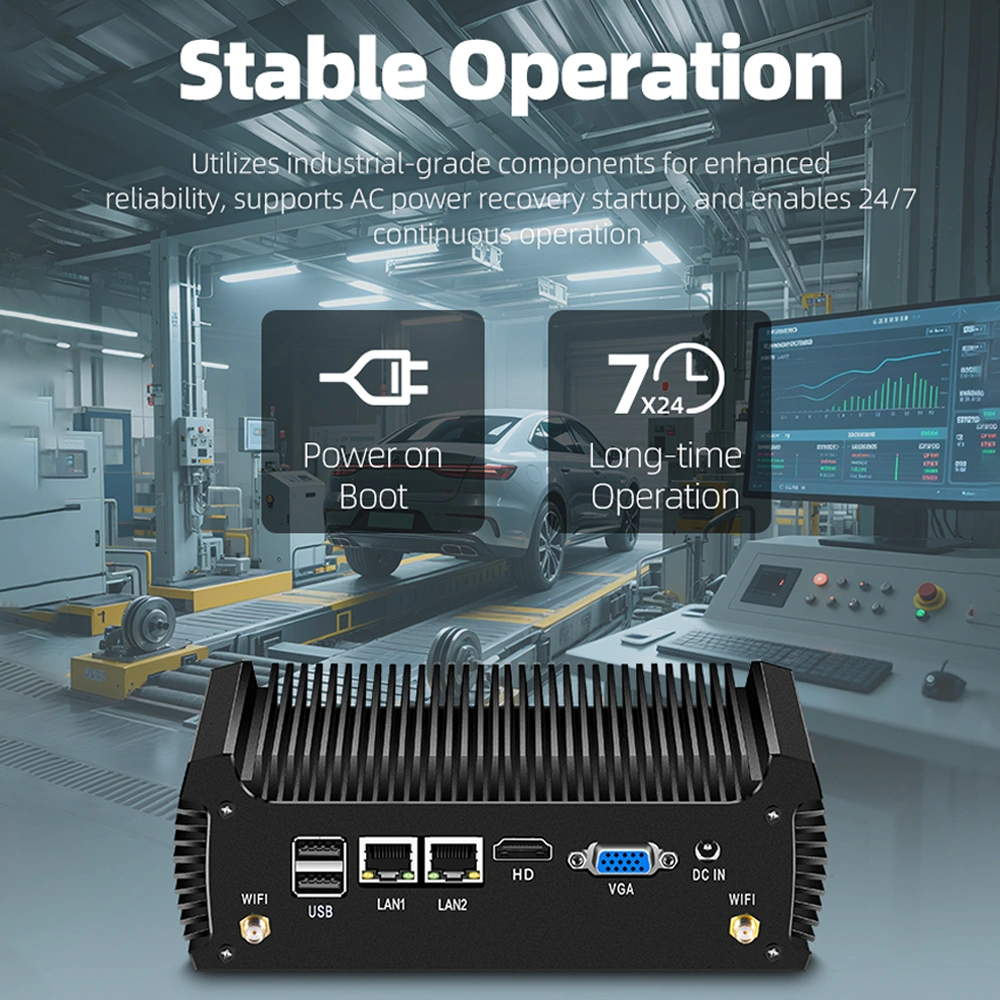

Unparalleled connectivity is achieved for modern smart factories. Dual Gigabit LAN ports are provided for strict IT/OT network isolation.
Crucially, RS485 COM interfaces are integrated. Long-distance industrial sensors, turnstile access controls, and CNC machinery are synchronized directly with your central management system.

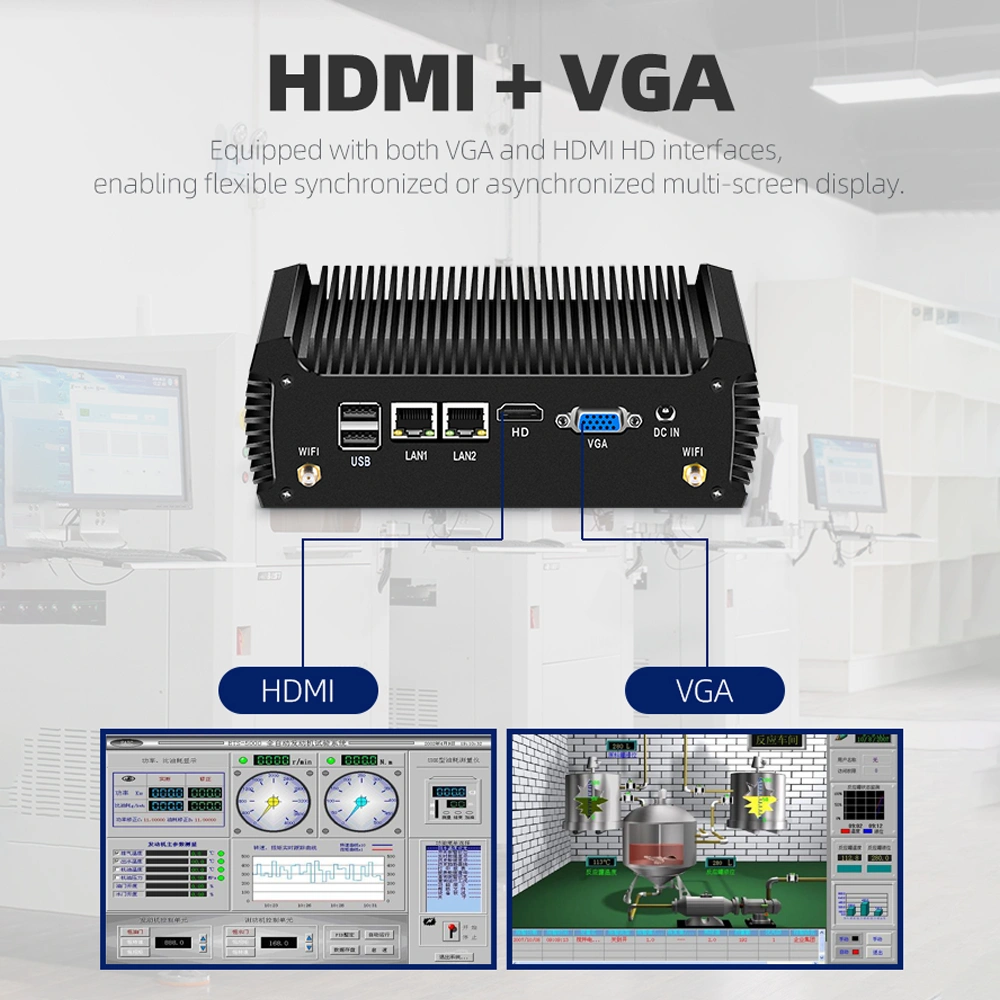

4K Vision.
Synchronous or asynchronous dual displays are supported via 4K-capable HDMI and VGA ports, making it a pivotal device for premium digital signage and machine vision.
Advanced Fanless Architecture.
Mechanical moving parts are completely eliminated. Our passive cooling fin design transforms the entire aluminum chassis into a highly efficient heat sink.
SN-X46G Technical Specifications
Built for rugged automation and intensive computation.
| Model | SynqNode SN-X46G (High-Performance Industrial PC) |
|---|---|
| Processor |
Intel® Core™ i5-8250U (4 Cores, 8 Threads, up to 3.40 GHz) *Other CPU configurations available upon request. |
| Memory (RAM) | 1* SO-DIMM Slot, DDR4 Memory (Supports up to 16GB) |
| Storage Architecture |
1* M.2 Key-M 2280 Slot (M.2 PCIe/NVMe & SATA auto-adaptive) 1* 2.5-inch SATA 3.0 HDD/SSD Bay (6Gbps) |
| Networking (LAN) | 2* Realtek RTL8111H Gigabit Ethernet (Supports Network Wake-up/PXE) |
| Serial Ports (COM) | 2* COM Ports (Includes RS485 support for industrial automation) |
| USB Interfaces | 6* USB Ports (4* USB 3.0, 2* USB 2.0) |
| Display Output | 1* HDMI (Supports 4K@30Hz), 1* VGA (Dual display supported) |
| Expansion Slots | 1* Mini-PCIe Slot (Supports Wi-Fi and 4G Cellular Modules) |
| Audio | 1* AUDIO out / MIC in |
| Cooling & Chassis | Fanless Passive Cooling, Full Aluminum Alloy Enclosure |
| Power Supply | DC IN 12V 5A |
| Operating Temp. | -10°C ~ 60°C |
| Certification | CE, RoHS, SGS, CCC |
Power Your Smart Infrastructure Today.
The SN-X46G is trusted by global manufacturers and system integrators to run their most critical edge computing tasks. Bulk ordering, OEM chassis customization, and long-term supply guarantees are provided by SynqNode.
