SynqNode
SN-X31.
Compact Form. Uncompromised Connectivity.
The ultimate balance of size and industrial capability is achieved here. Engineered for demanding IoT and retail environments, the SN-X31 delivers robust processing power and dual-network isolation within a highly compact, fanless architecture.
Minimal Footprint.
Maximum Integration.
Space constraints are eliminated. Measuring only 180x128x55mm, this rugged node is deployed effortlessly inside interactive kiosks, beneath checkout counters, or within cramped control cabinets.
A deeply finned aluminum alloy chassis is utilized to guarantee silent, dust-free, and heat-resistant operations.
Built for Complex Topologies.
Network redundancy and legacy equipment integration are handled flawlessly.
Internal network & External cloud isolated securely.
Scales, scanners & sensors connected seamlessly.
Expansive Storage.
Data security is prioritized through a dual-drive architecture. High-speed mSATA and high-capacity 2.5-inch SATA storage are combined to deliver instant boot times and stable data archiving.
Synchronized Output.
Simultaneous dual displays (1080P HDMI + VGA) are supported perfectly for dynamic customer interactions and operator workflows.
Tailored to Your Software Ecosystem.
Complete OEM/ODM customization is provided by our dedicated engineering team. A bespoke hardware solution is created to match your exact deployment requirements.
Custom BIOS
Wake-on-LAN & Auto Power-On logic configured.
Laser Engraving
Your corporate logo seamlessly applied to the chassis.
I/O Expansion
Brackets and interfaces tailored to your sensors.
Chassis Color
Anodized finishes matching your brand guidelines.
SN-X31 Technical Specifications
| Model | SynqNode SN-X31 (Dual LAN Industrial Mini PC) |
|---|---|
| Processor |
Intel® Core™ i5-4200U (2 Cores, 4 Threads, up to 2.60 GHz) Intel® Core™ i7-5500U (2 Cores, 4 Threads, up to 3.00 GHz) |
| Memory (RAM) | 1* SODIMM Slot, DDR3L (Supports up to 8GB) |
| Storage Architecture |
1* mSATA SSD Slot (High-speed OS boot) 1* 2.5" SATA HDD/SSD Bay (High-capacity storage) |
| Network (LAN) | 2* Gigabit Ethernet LAN Ports (Supports Network Isolation) |
| Serial Ports (COM) | 2* RS232 COM Ports |
| USB Interfaces | 4* USB 3.0 |
| Display Output | 1* HDMI (1080P), 1* VGA (Supports Synchronous Dual Display) |
| Audio | 1* Audio Out (Speaker/Headphone) |
| Cooling System | Fanless Passive Cooling, Premium Aluminum Alloy Heat Sink |
| Power Supply | Input: DC 12V 5A/60W (Supports AC TO DC, 100~240V) |
| Operating System | Windows 7, Windows 8, Windows 10, Linux (Ubuntu, CentOS, etc.) |

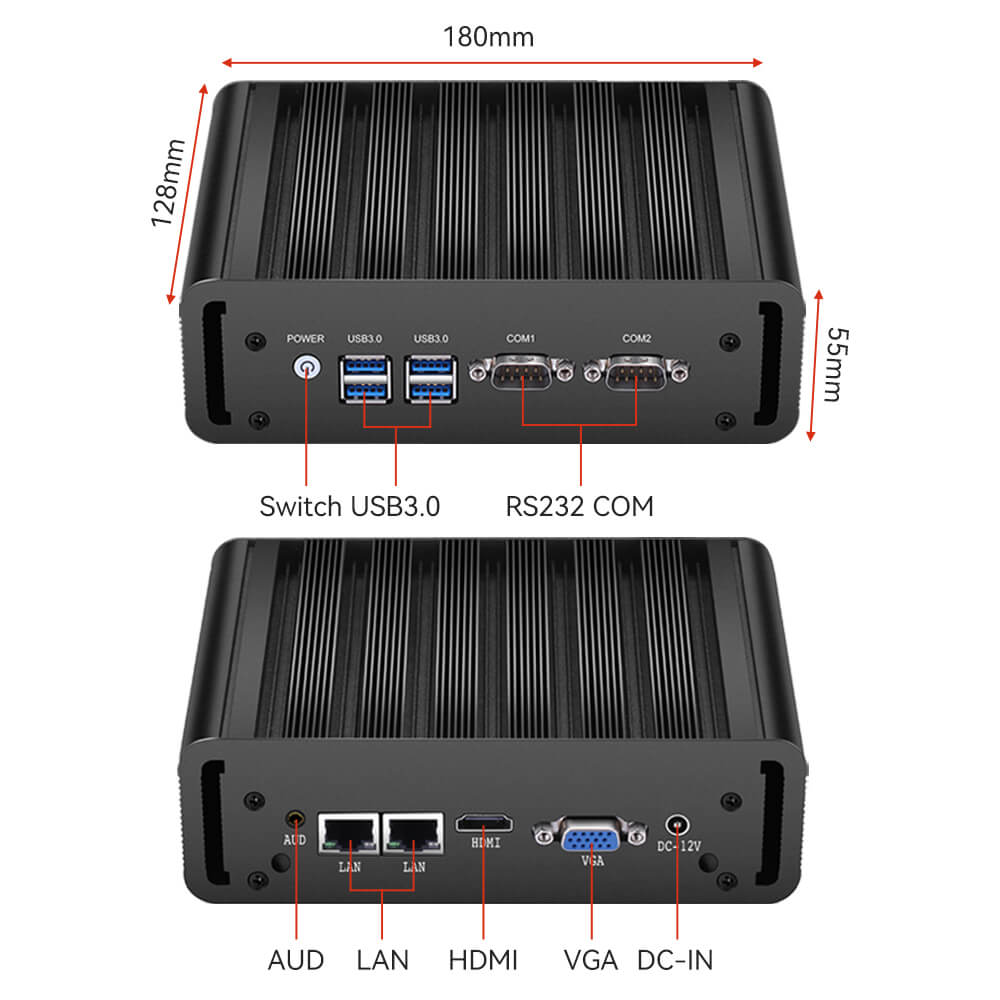

| Chassis Dimensions | 180mm * 128mm * 55mm |
| Material & Color | Industrial-Grade Aluminum Alloy, Black (Customizable) |
Secure Your Infrastructure Today.
Top system integrators and ISVs rely on SynqNode hardware for continuous operation. Bulk orders, sample testing units, and deep hardware customizations are welcomed.
B2B Volume Pricing Available.
