SynqNode
SN-X30G.
The Efficient Dual-Network Node.
Reliable retail connectivity is delivered at an optimized cost. Engineered with a fanless architecture and dual Gigabit LAN, the SN-X30G serves as the perfect low-power foundation for your POS networks, IoT gateways, and access control systems.
Secure Isolation.
Legacy Integration.
Complex network environments are managed effortlessly. Internal POS networks and external cloud connections are securely isolated by dual Gigabit Ethernet ports.
Legacy barcode scanners, receipt printers, and industrial scales are integrated seamlessly into your modern software via the onboard RS232 COM port.
Ultra-Low Power.
Unbroken Silence.
Energy consumption is minimized drastically. Driven by highly efficient processors, the SN-X30G operates on minimal wattage without compromising essential performance.

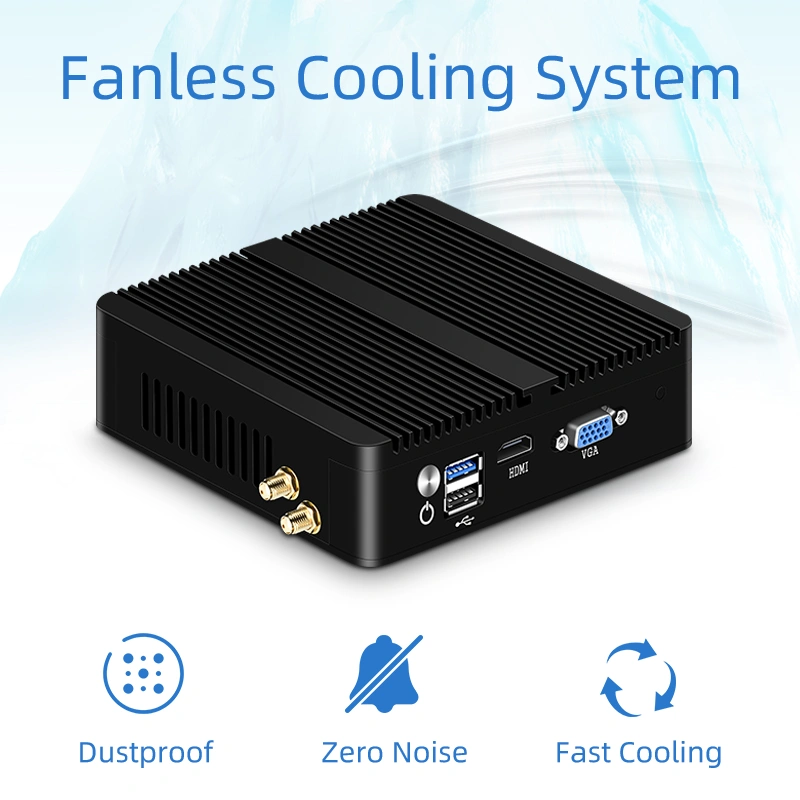

A completely fanless, dust-proof aluminum chassis is utilized, ensuring 24/7 silent operation and eliminating mechanical failures.
Precision in Every Detail.

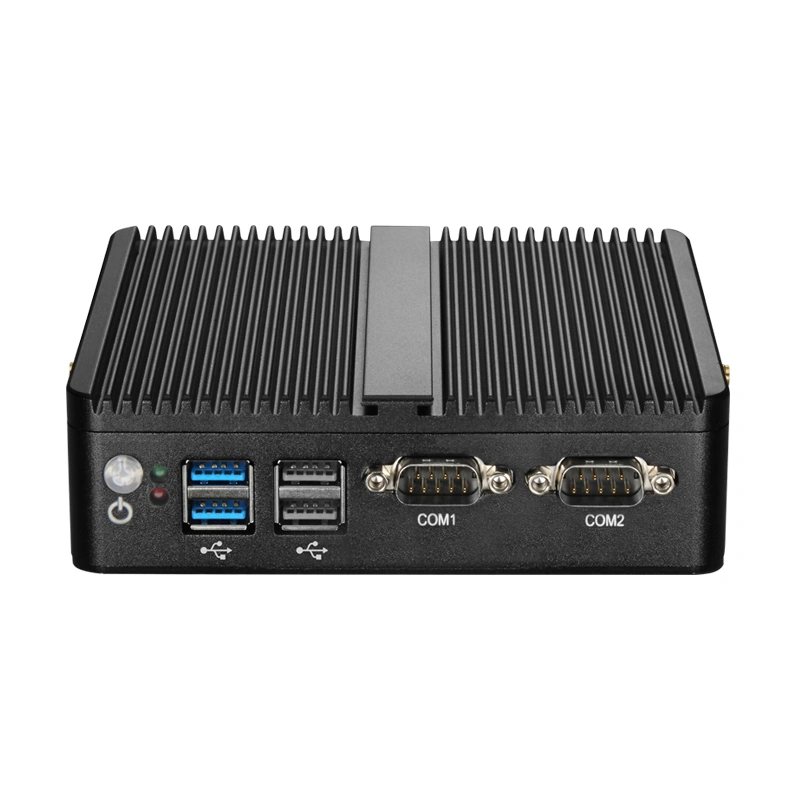

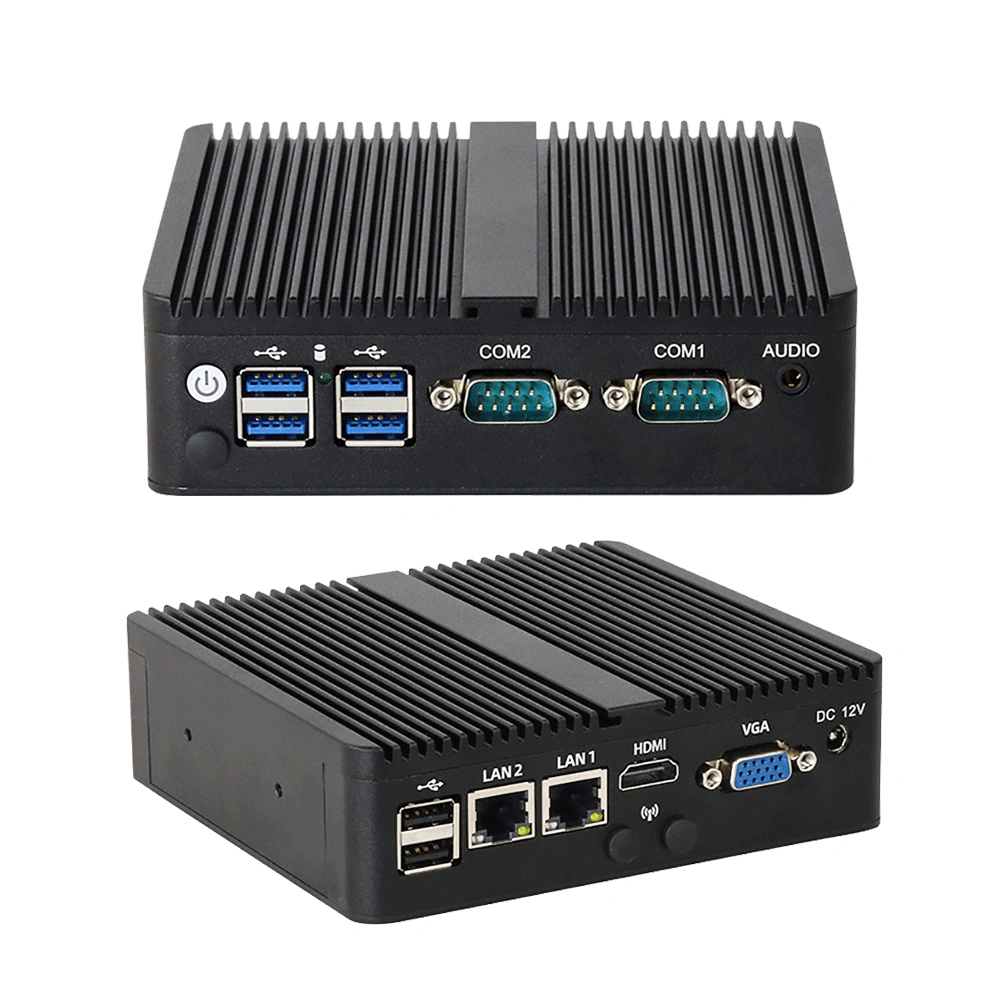

Experience the compact footprint, robust I/O panel, and fanless aluminum architecture up close. Designed for seamless integration into any IoT or retail environment.
Tailored Computing Power.
Hardware specifications are matched exactly to your budget and software requirements. The choice is yours.
Entry-Level IoT.
Highly cost-effective Intel® Celeron® (J1900 / N2930) processors designed specifically for basic IoT routing, lightweight POS, and data collection tasks.
Performance Edge.
Robust Intel® Core™ i3/i5 architectures designed for demanding digital signage displays, local database hosting, and high-traffic retail environments.
Out of Sight,
Always Connected.
Workspace efficiency is maximized. Synchronous dual displays (HDMI + VGA) are supported for operator and customer-facing interactions simultaneously.

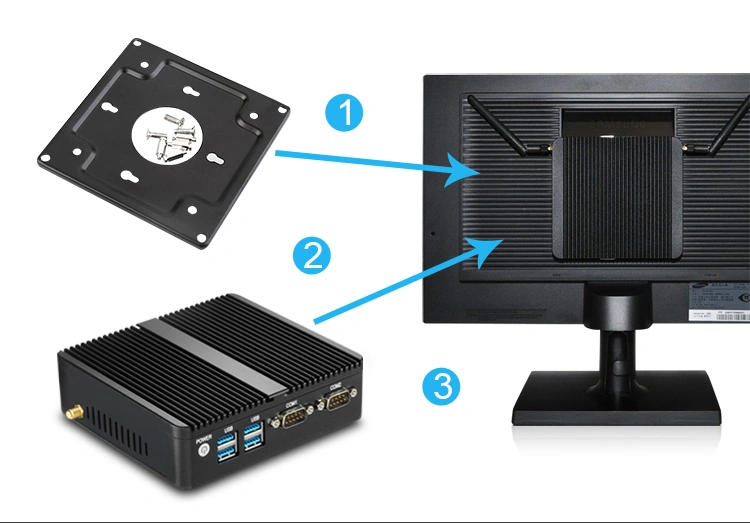

Thanks to its ultra-compact footprint and included VESA mount, the device is easily concealed behind monitors, under POS counters, or inside self-service kiosks.
SN-X30G Technical Specifications
Configurations can be customized for bulk OEM orders.
| Model | SynqNode SN-X30G (Dual LAN Mini PC) |
|---|---|
| Processor (Base) |
Intel® Celeron® J1900 / N2830 / N2930 Intel® Pentium® J2900 (Ultra-low TDP) |
| Processor (Pro) |
Intel® Celeron® 2955U / 3205U / 3855U Intel® Core™ i3 / i5 (4th & 5th Gen) |
| Memory (RAM) | 1* SODIMM Slot, DDR3L 1066/1333/1600MHz (Supports 2GB/4GB/8GB) |
| Storage Subsystem |
1* mSATA SSD Slot 1* 2.5-inch SATA HDD/SSD Bay (Dual drive combination supported) |
| Networking (LAN) | 2* Gigabit Ethernet LAN Ports (10/100/1000Mbps) |
| Serial Ports (COM) | 1* RS232 COM Port |
| USB Interfaces | Up to 6* USB Ports (Mix of USB 3.0 & USB 2.0 depending on CPU config) |
| Display Output | 1* HDMI, 1* VGA (Supports Dual Display) |
| Audio | 1* MIC-in, 1* SPK-out |
| Cooling & Chassis | Fanless Passive Cooling, Aluminum Alloy Shell |
| Power Requirement | Input: AC 100-240V; Output: DC 12V 3A (Energy-saving architecture) |
| Dimensions | 136mm * 126mm * 39mm |
| Mounting | Desktop placement & VESA Mount compatible |
Scale Your IoT Deployments Profitably.
The SN-X30G is the proven choice for system integrators seeking the perfect balance of connectivity and cost. Mass production, white-label OEM branding, and custom packaging are handled seamlessly by our facilities.
Minimum Order Quantities (MOQ) apply for full OEM customization.
