SynqNode
SN-X30A.
The Ultra-Compact Edge Gateway.
Massive IoT deployments are achieved without stretching your budget. Engineered in a micro-footprint, the SN-X30A delivers essential dual-network isolation and serial connectivity. It acts as the highly reliable, cost-effective brain for digital signage, vending machines, and access control systems.
)
Minimal Footprint.
Maximum Deployment.
Space-constrained environments are conquered easily. Measuring only 136 x 126 x 37 mm, this highly portable node is concealed effortlessly behind displays or inside self-service enclosures.

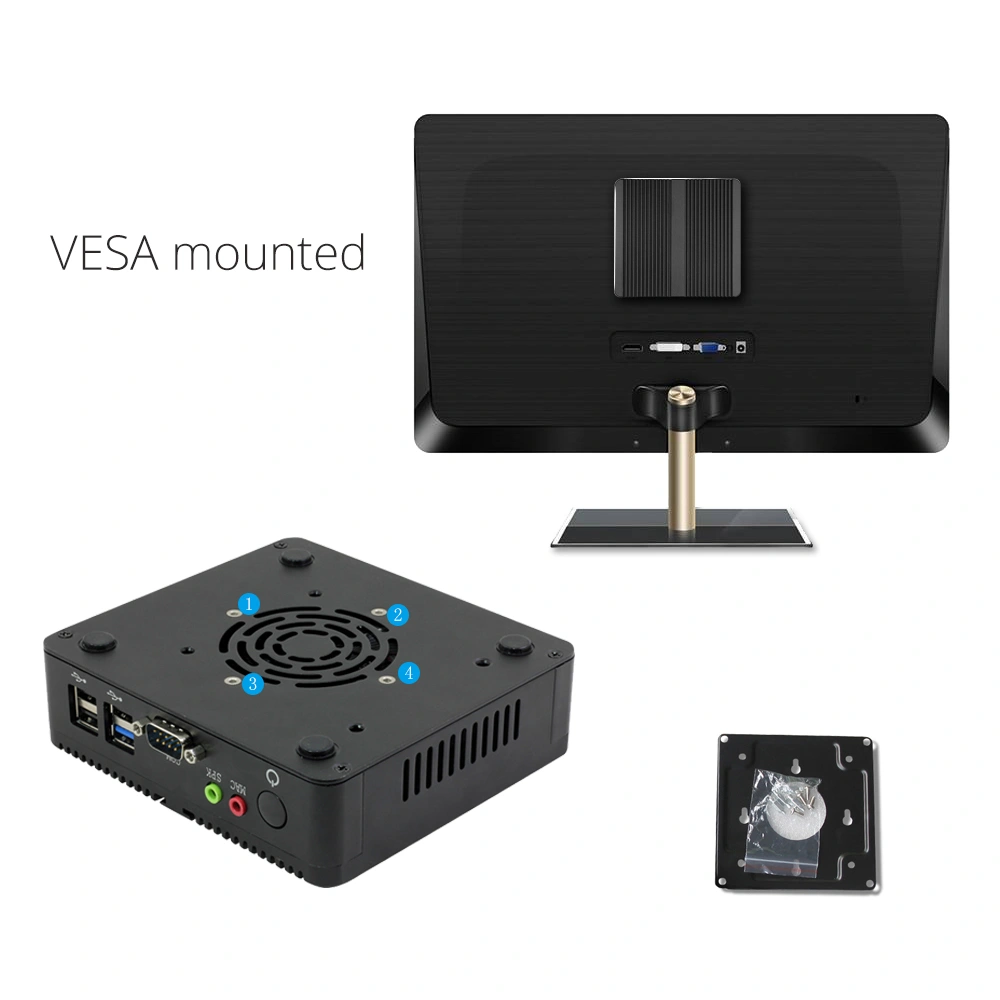

Through standard VESA mounting, installation is executed in minutes.

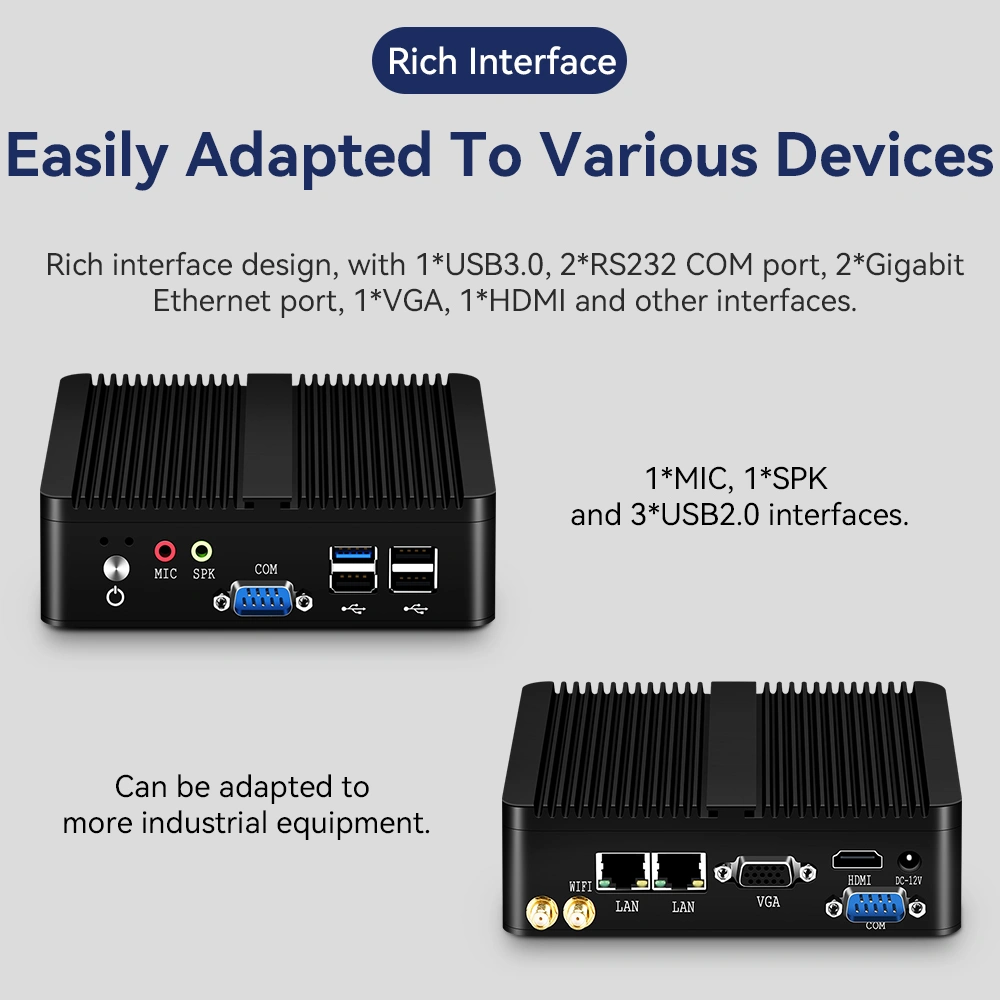

Essential I/O for Smart Infrastructure.
Network security and legacy peripheral integration are balanced perfectly. Internal operational data and external internet access are strictly isolated by Dual Gigabit LAN ports.
Industrial controllers and sensors are connected seamlessly via two configurable COM ports (RS232/485 adjustable via BIOS).
)
Small Form Factor. Big Impact.

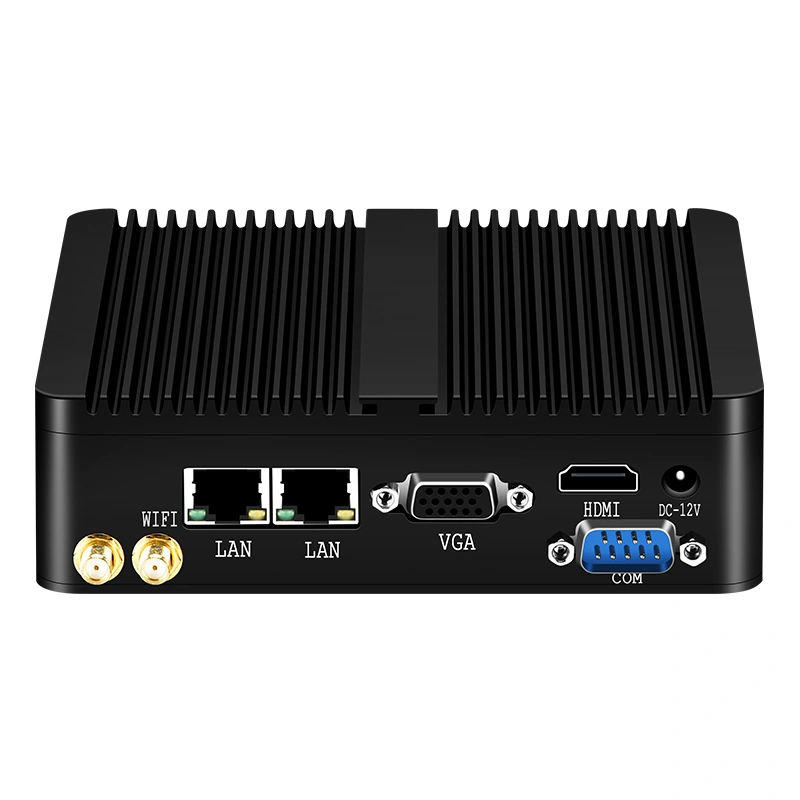

Take a closer look at the ultra-compact design, premium aluminum enclosure, and the versatile I/O layout that empowers thousands of edge nodes globally.
Ultra-Low
Power Consumption.

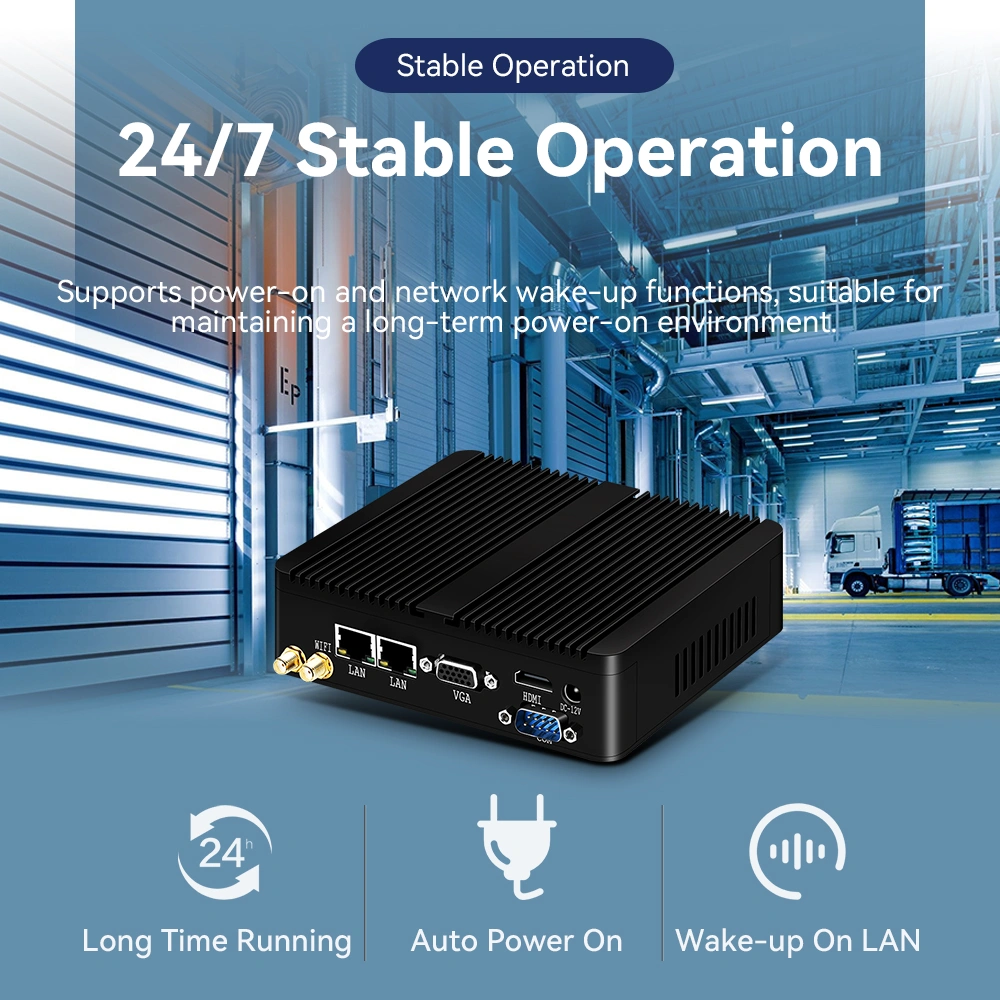

Operational costs are drastically reduced for large-scale fleets. Powered by Intel® Celeron® N-Series processors, sufficient edge computing power is delivered at a fraction of the energy cost. Heat generation is minimized, making it the ideal choice for 24/7 continuous unattended operation.
High Efficiency
Low TDP Architecture
24/7 Operation
Cost-Saving Lifespan
Silent. Dustproof. Resilient.

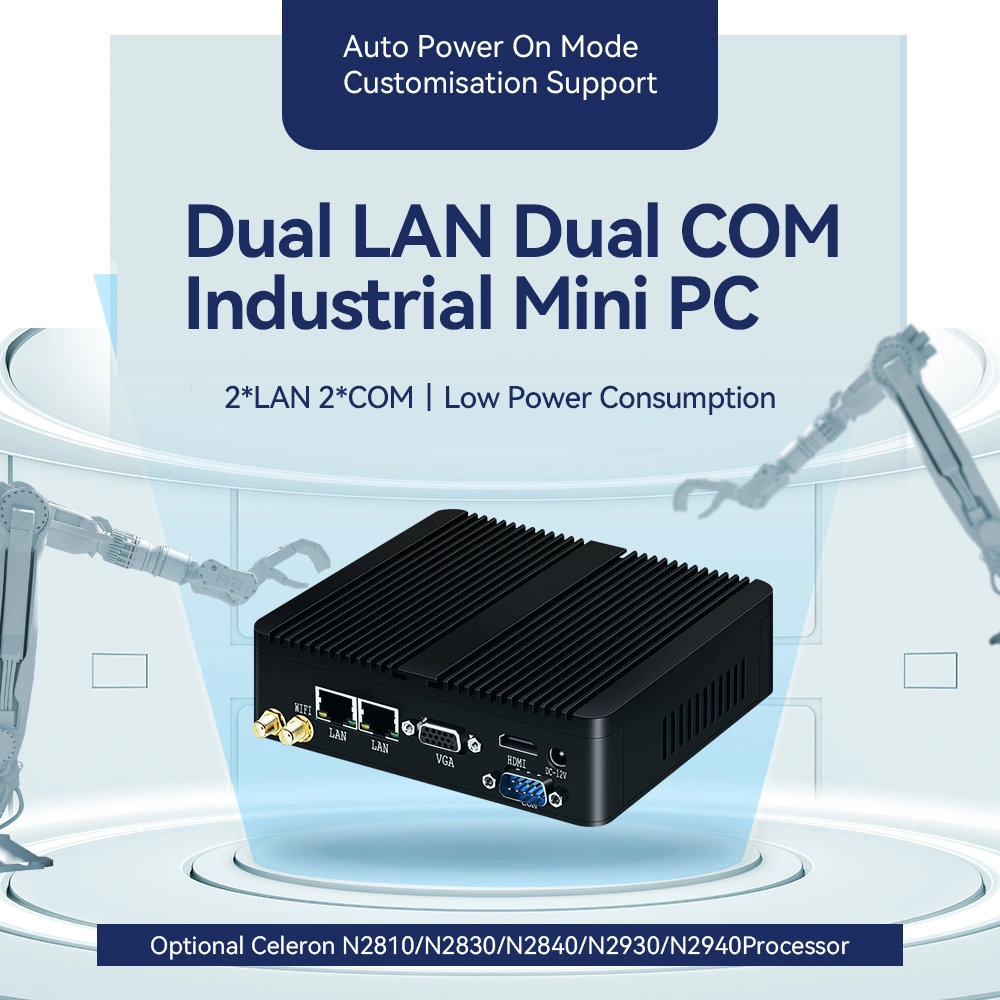

Harsh environmental factors are completely neutralized. Designed with a fanless, enclosed aluminum alloy architecture, the entry of dust and moisture is effectively blocked. Stable operation is guaranteed across extreme temperature fluctuations, ensuring your edge network remains online.
SN-X30A Technical Specifications
Purpose-built for large-scale, cost-effective deployments.
| Model | SynqNode SN-X30A (Ultra-Compact IoT Gateway) |
|---|---|
| Processor Options | Intel® Celeron® N2810 / N2830 / N2840 / N2930 / N2940 |
| Memory (RAM) | 1* SO-DIMM Slot, DDR3L 1066/1333/1600MHz (Supports up to 8GB) |
| Storage Architecture |
1* Full-height mSATA SSD Slot 1* 2.5-inch SATA SSD/HDD internal bay |
| Networking (LAN) | 2* Realtek 8111F Gigabit Ethernet LAN (Supports Wake-on-LAN/PXE) |
| Serial Ports (COM) | 2* COM Ports (COM1: RS232, COM2: RS232/485 via BIOS) |
| USB Interfaces | 2* USB 3.0, 2* USB 2.0 |
| Display Output | 1* HDMI (1920x1200@60Hz), 1* VGA (Supports Dual Display) |
| Expansion Slot | 1* Half-height Mini PCIe Slot (For Wi-Fi/Bluetooth integration) |
| Cooling & Chassis | Fanless Passive Cooling, Premium Aluminum Alloy Enclosure |
| Dimensions & Weight | 136mm x 126mm x 37mm / Approx. 0.65 KG |
| Operating Temp | -20°C ~ +65°C |
| Power Supply | DC 12V 3A/36W |
Scale Your IoT Network Efficiently.
The SN-X30A is the preferred choice for system integrators rolling out thousands of retail endpoints or smart cabinets. Whether customized OEM branding or rapid mass production is required, our manufacturing hub is ready to fulfill your demands.
