SynqNode
SN-X30.
The Ultra-Efficient Commercial Node.
Minimal footprint. Maximum efficiency. The SN-X30 is engineered specifically for scale. A completely silent, fanless architecture is combined with ultra-low power consumption to drive your digital signage, POS, and office networks flawlessly.
See the SN-X30 in Action.
Experience the compact design, rich I/O, and industrial-grade build quality up close.
Optimized for
Massive Scale.
Operational overhead is slashed drastically. Traditional desktop PCs consume over 160W of power, whereas the SN-X30 operates seamlessly on a mere 24W.
When deployed across hundreds of retail locations, interactive kiosks, or office desks, energy expenditure is minimized exponentially. Lower heat output also guarantees a longer hardware lifespan.
Zero Noise.
Zero Maintenance.

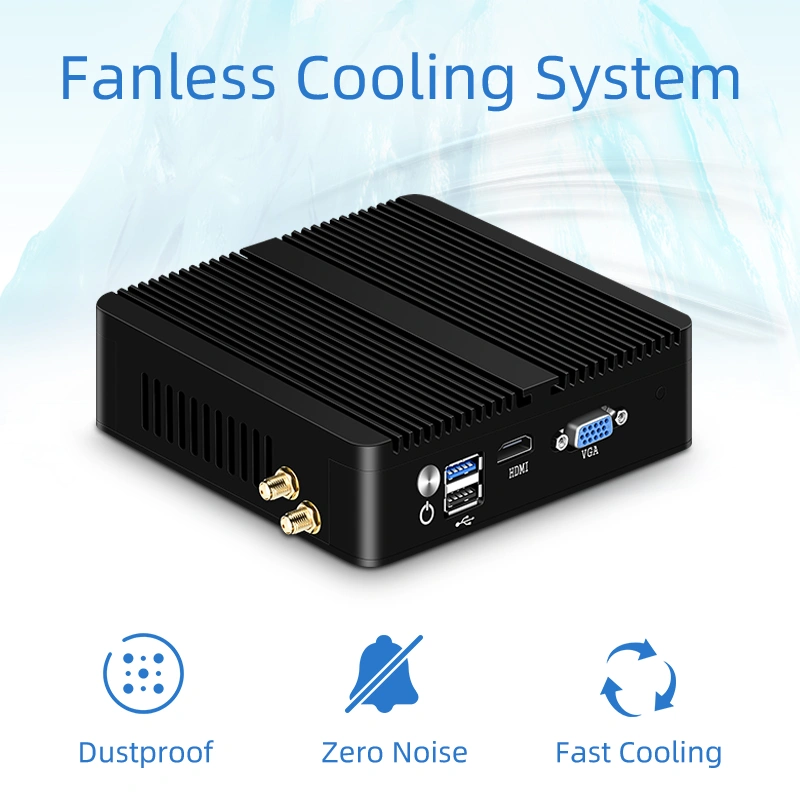

A silent environment is maintained for your customers and staff. By utilizing an advanced passive cooling system, internal fans are completely eliminated.
- Dust accumulation—the leading cause of hardware failure—is prevented.
- Ensures 24/7 uninterrupted operation in any commercial setting, from quiet boutiques to busy factory floors.
Unbound by Cables.
Deployment flexibility is prioritized. Equipped with a dual-antenna Wi-Fi module, high-speed and stable wireless connections are guaranteed.
-

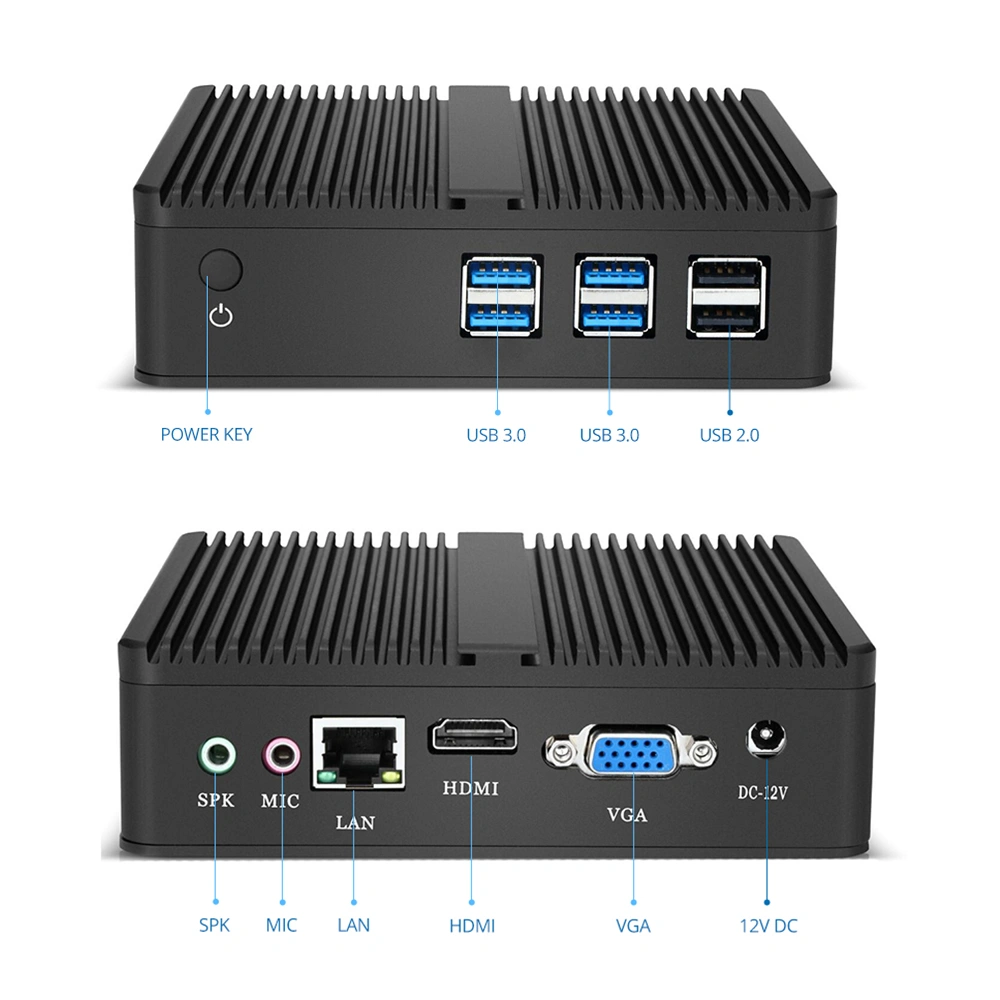

DISP

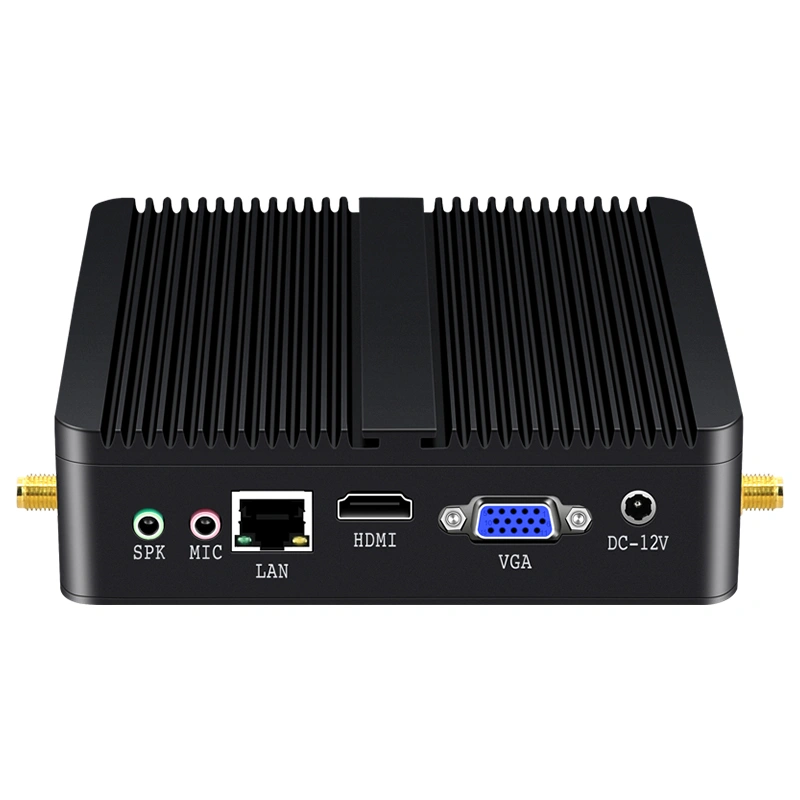

HDMI + VGA Outputs
Perfectly supported for scenarios requiring both customer-facing and operator screens (Synchronous or Asynchronous).
-
USB

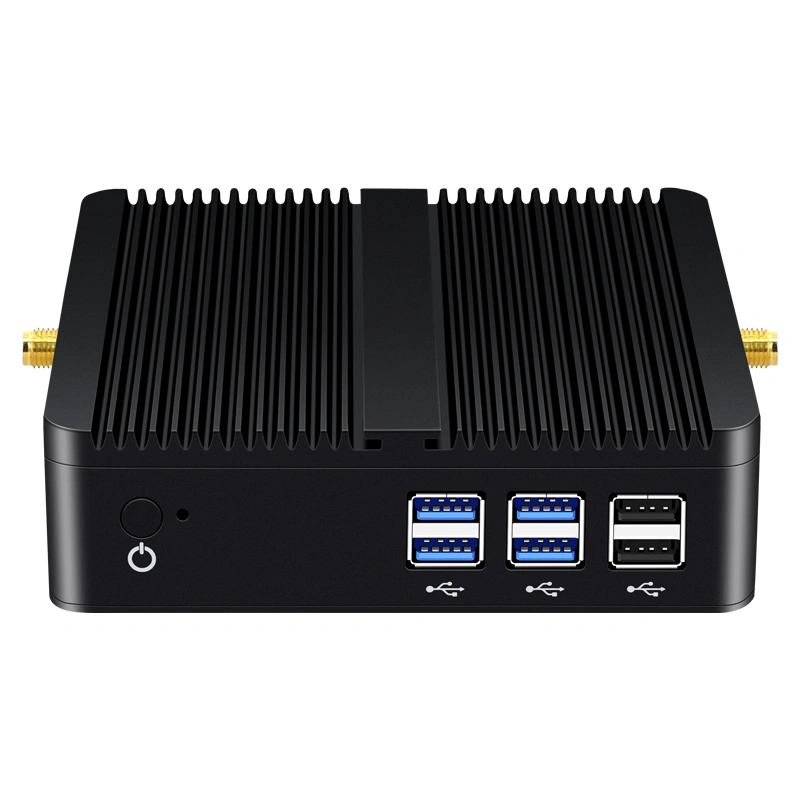

6x USB Ports
(4x USB 3.0, 2x USB 2.0) Provided to connect all essential POS peripherals effortlessly.
Scalable Processing Power.
Hardware configurations are tailored strictly to your operational demands. The exact processing power required by your software is delivered by our engineering team.
Ideal for lightweight digital signage, basic POS systems, and simple kiosk operations.
The sweet spot for complex data processing, interactive touchscreen applications, and multi-tasking.
Engineered for demanding edge computing, heavy data rendering, and advanced automation.
SN-X30 Technical Specifications
| Model | SynqNode SN-X30 (Commercial Fanless Mini PC) |
|---|---|
| Processor Options |
Intel® Celeron® (2955U / 3205U / 3855U / 3955U) Intel® Core™ i3 / i5 / i7 (4th & 5th Gen architectures available) |
| Memory (RAM) |
1* SODIMM Slot, DDR3L 1333/1600MHz (Supports 2GB/4GB/8GB) (Note: 5th Gen CPUs support up to 16GB) |
| Storage |
1* mSATA SSD Slot 1* 2.5" SATA HDD/SSD Bay |
| Network (LAN) | 1* RJ45 10/100/1000Mbps Gigabit Ethernet (Realtek 8111F) |
| Wireless (Wi-Fi) | Mini PCI-E Slot, 300M 802.11 b/g/n, Dual-Antenna Wi-Fi Module |
| Display Output | 1* HDMI, 1* VGA (Supports Sync/Async Dual Display) |
| I/O Ports (USB) | 4* USB 3.0, 2* USB 2.0 |
| Audio | 1* Mic-in, 1* Speaker-out (Realtek ALC662) |
| Cooling System | Fanless Passive Cooling (Aluminum Alloy Heat Sink) |
| Power Supply | Input: DC 100-240V; Output: DC 12V-3A/5A (approx. 24W TDP) |
| Supported OS | Windows 7, Windows 8, Windows 10, Linux (Ubuntu) |
| Dimensions | 133mm * 125mm * 40mm |
| Operating Temp. | -20°C to +65°C (Storage: -20°C to +85°C) |
| Advanced Features | Wake ON LAN, RTC Wake, PXE Boot, Auto Power-On |
Streamline Your Digital Deployments.
Whether you are building an interactive kiosk network or upgrading your retail POS systems, the SN-X30 provides the reliable backbone. OEM/ODM branding, specific OS pre-installations, and custom BIOS configurations are fully supported.
Request a Quote & SampleB2B Volume Pricing Available.
