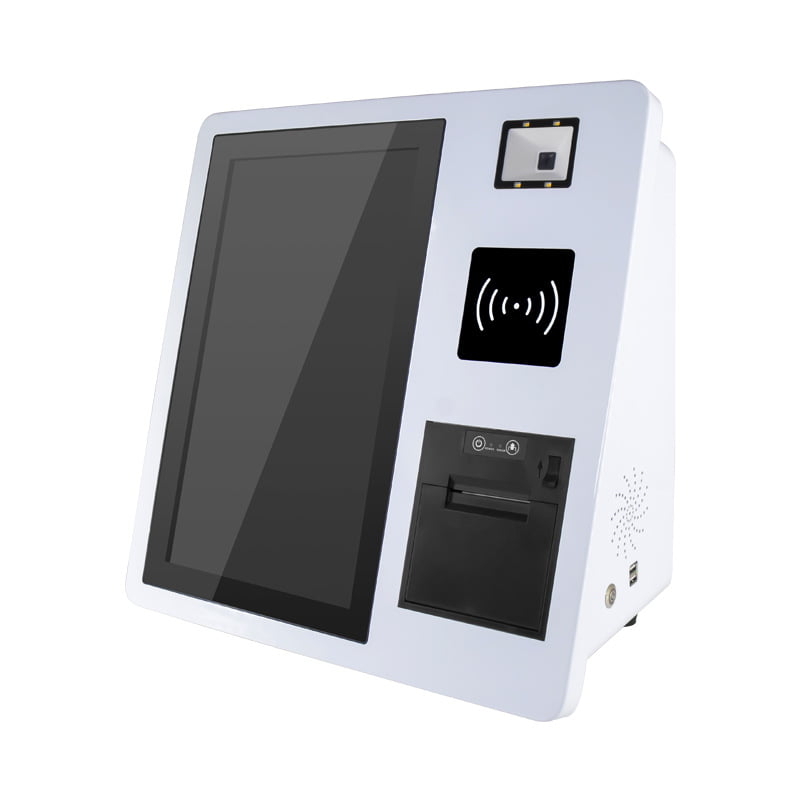

SN-K3 All-in-One.
Efficiency, Condensed.
Countertop space is maximized. A complete self-service ecosystem—scanning, payment, and receipt printing—is integrated flawlessly into a single, sleek desktop chassis. The checkout experience is accelerated.
Engineering in Motion.
Every interaction is optimized. The seamless synergy between compact hardware and rapid transaction processing is demonstrated visually.
Three Core Functions.
One Unified Terminal.

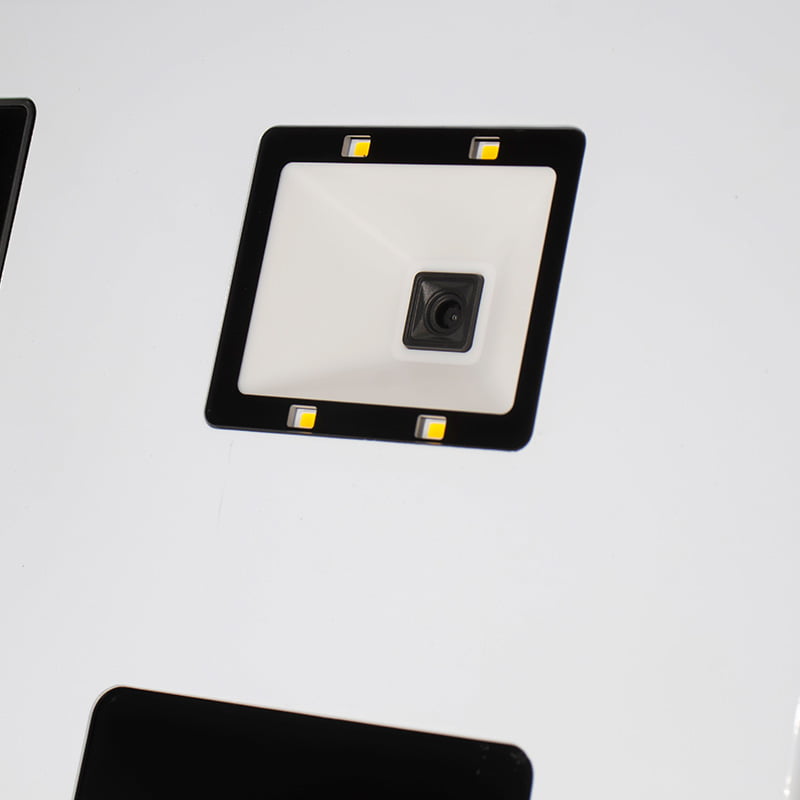

High-Speed 1D/2D Scanning
A wide-angle barcode scanner is utilized. Customer QR codes and loyalty cards are recognized instantly, even in low-light conditions.
Contactless Payment Ready
A dedicated NFC/RFID zone is reserved. Secure tap-to-pay transactions are facilitated seamlessly.
Built-in Receipt Printing
An industrial 58mm/80mm auto-cut thermal printer is embedded seamlessly. Paper rolls are replaced effortlessly.
Engineered for 24/7 Continuous Operation.
Consumer-grade plastics are discarded. The SN-K3 is housed within a heavy-duty metal enclosure, providing superior resistance to daily wear and tear.

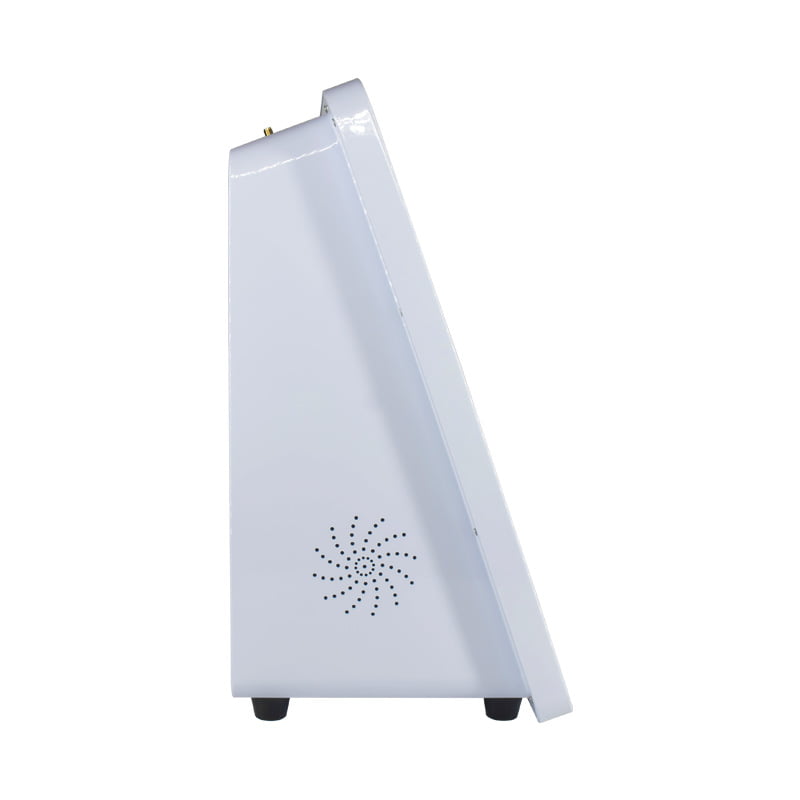

An advanced convection cooling architecture is engineered to ensure stable internal temperatures during peak business hours. Uninterrupted performance is guaranteed.
Cross-Platform Power. Boundless Connectivity.
Software limitations are eliminated. The SN-K3 is offered in both Android (Rockchip) and Windows (Intel Core) architectures. A comprehensive I/O panel is provided to ensure your terminal is connected flawlessly to existing store networks.
Android Architecture
Rockchip high-performance ARM processors are utilized for lightweight SaaS POS deployments.
Windows Architecture
Intel Celeron and Core processors are deployed for legacy ERP and demanding software environments.
Technology Specifications.
| Component | Android Configuration | Windows Configuration |
|---|---|---|
| Operating System | Android 11 / 12 (Root Access Available) | Windows 10 / 11 Pro / IoT Enterprise |
| Processor (CPU) | RK3288 / RK3566 / RK3568 / RK3399 | Intel Celeron J4125 / Core i3 / i5 / i7 |
| Memory (RAM) | 2GB / 4GB / 8GB | 4GB / 8GB / 16GB |
| Storage (ROM) | 16GB / 32GB / 64GB eMMC | 64GB / 128GB / 256GB SSD |
| Display Panel | 15.6" TFT LCD, 1920x1080 (FHD), 10-Point Touch | 15.6" TFT LCD, 1920x1080 (FHD), 10-Point Touch |
| Integrated Printer | 58/80mm Thermal, Auto-cutter, 150mm/s | 58/80mm Thermal, Auto-cutter, 150mm/s |
| Integrated Scanner | High-speed 1D/2D Barcode & QR Code Reader | High-speed 1D/2D Barcode & QR Code Reader |
| NFC/RFID (Optional) | ISO/IEC 14443 Type A/B, MIFARE | ISO/IEC 14443 Type A/B, MIFARE |
| Connectivity | Wi-Fi (2.4G/5G), Bluetooth 4.0/5.0, Gigabit LAN | Wi-Fi (2.4G/5G), Bluetooth 4.0/5.0, Gigabit LAN |

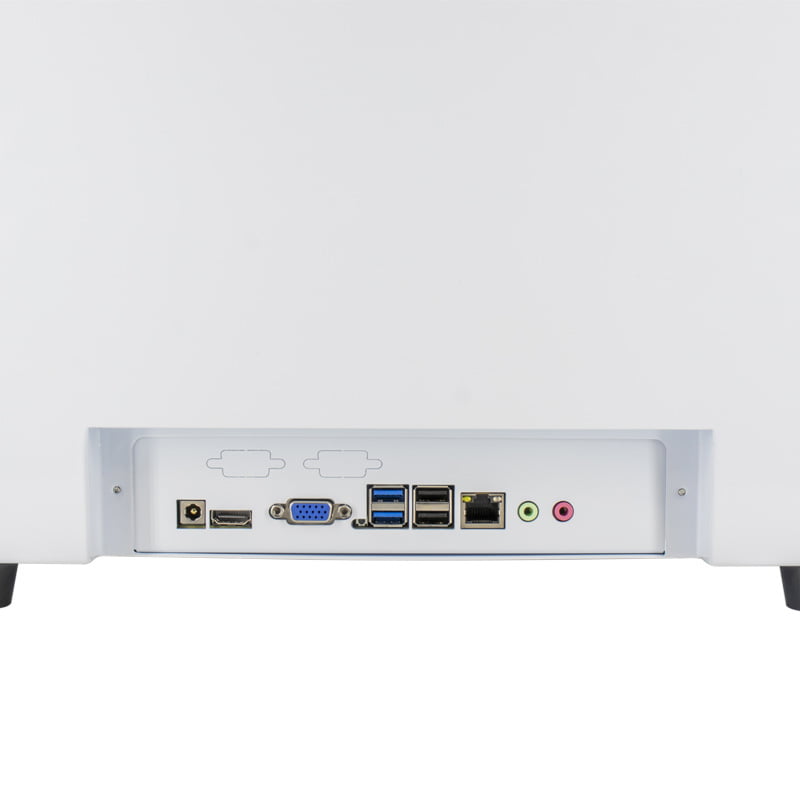

| I/O Interfaces | 4x USB, 1x RJ45, 1x HDMI, Audio I/O, 1x COM | 4x USB, 1x RJ45, 1x HDMI, Audio I/O, 1x COM |
| Enclosure Material | High-strength Cold-rolled Steel & Aluminum | High-strength Cold-rolled Steel & Aluminum |
Deployed to Eradicate Queues.
Operational efficiency is scaled across various verticals. Whether deployed in Quick Service Restaurants (QSR), convenience stores, or ticketing booths, the SN-K3 is trusted to handle peak-hour traffic flawlessly.

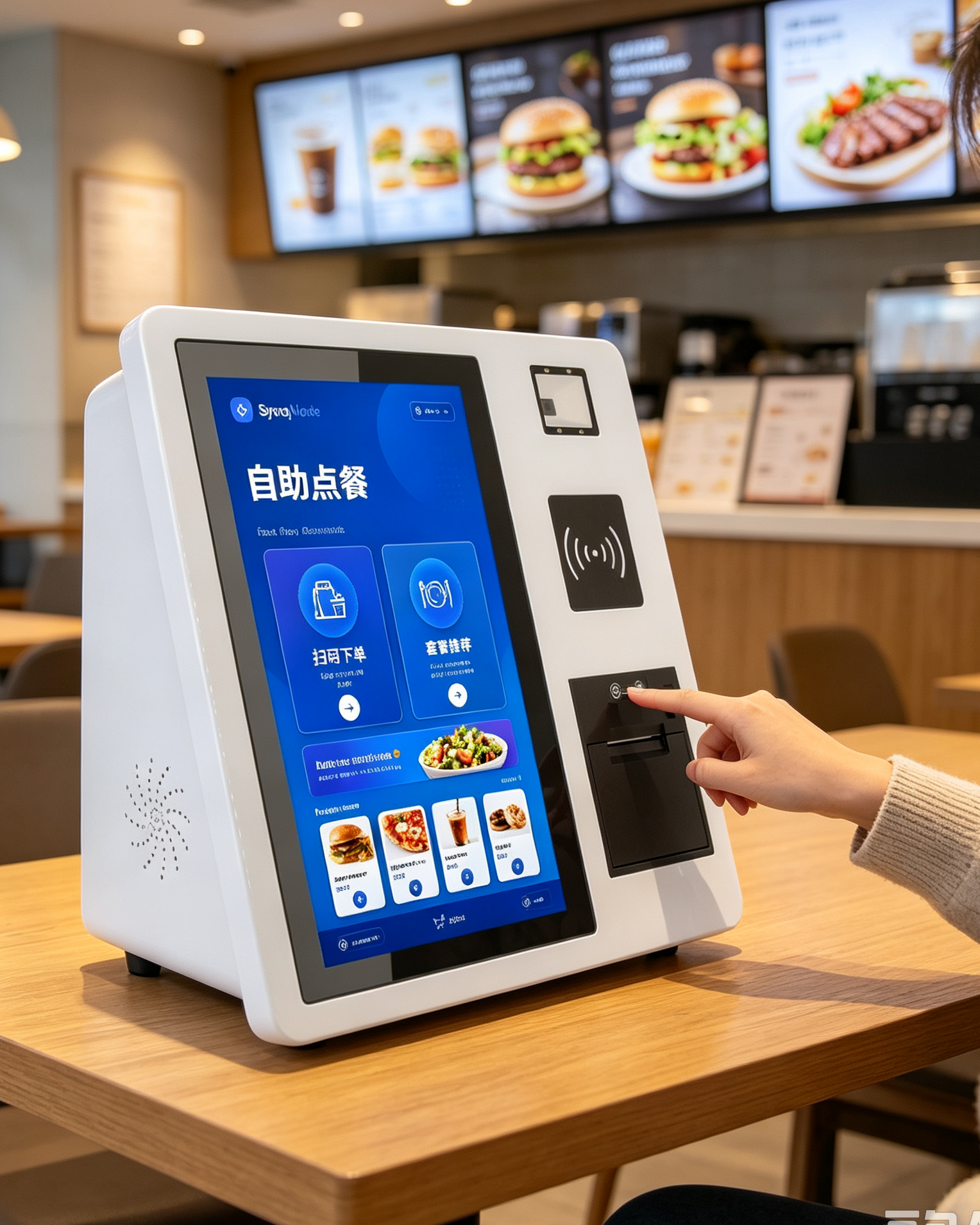

Quick Service Restaurants

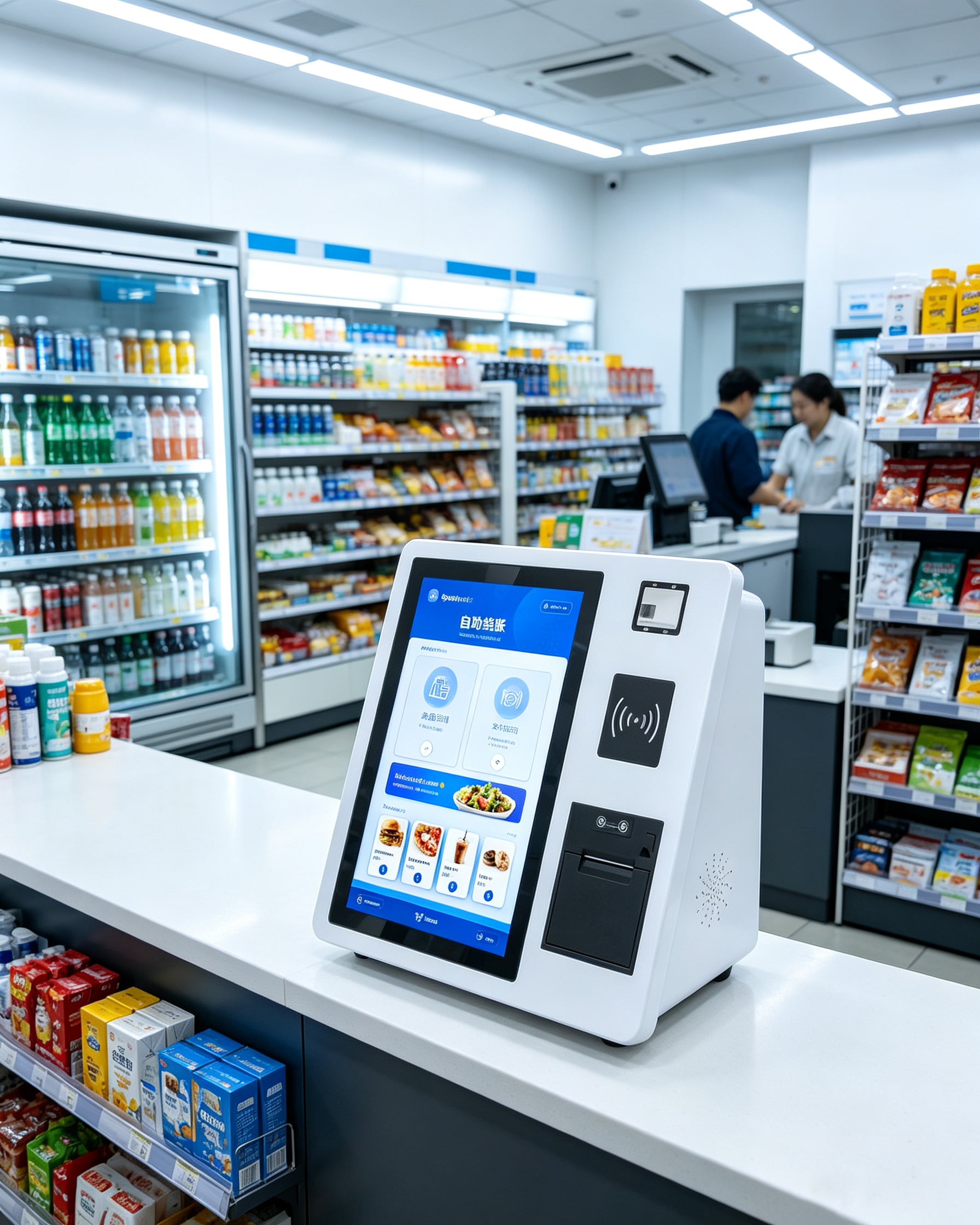

Convenience Stores

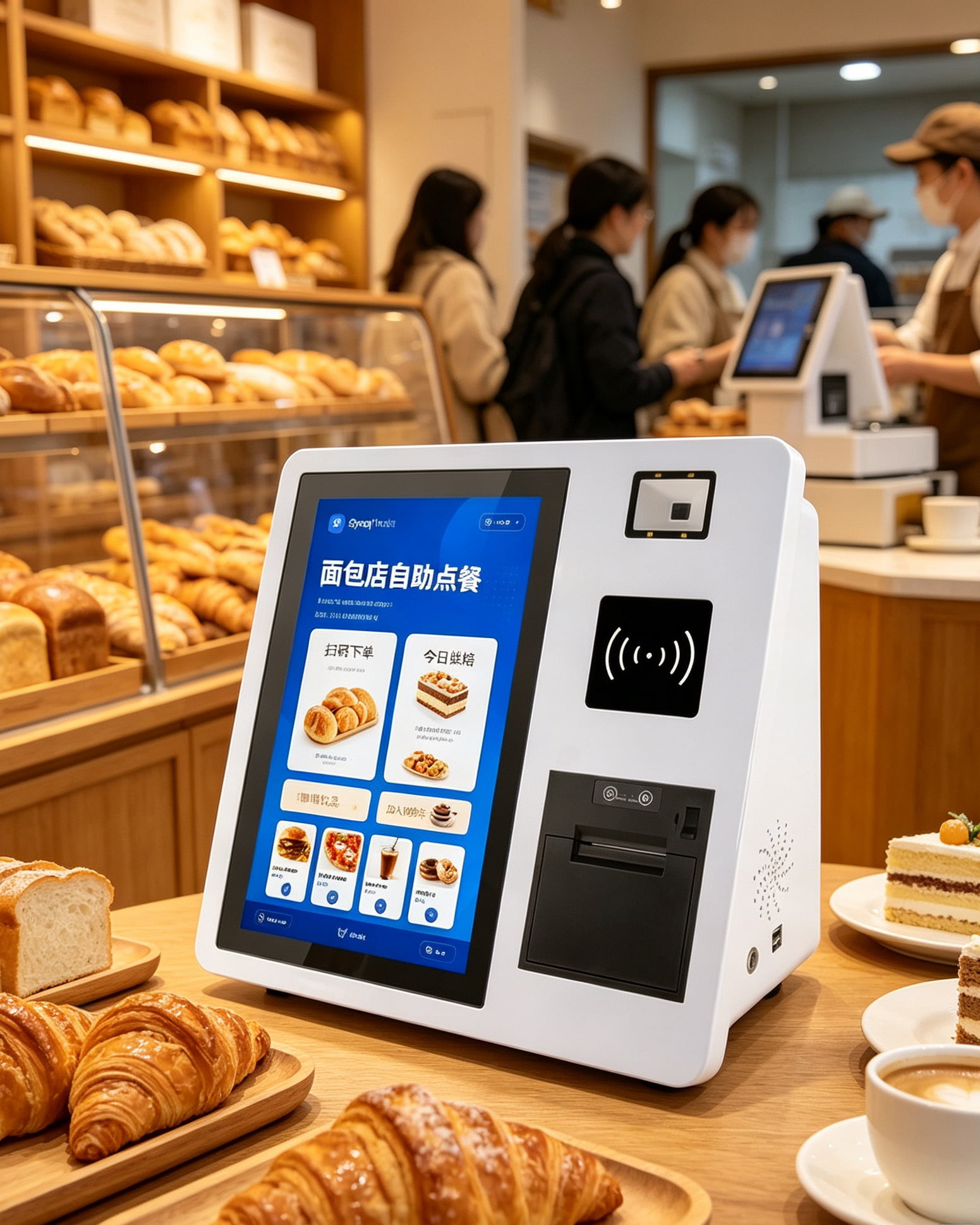

Bakeries & Cafes

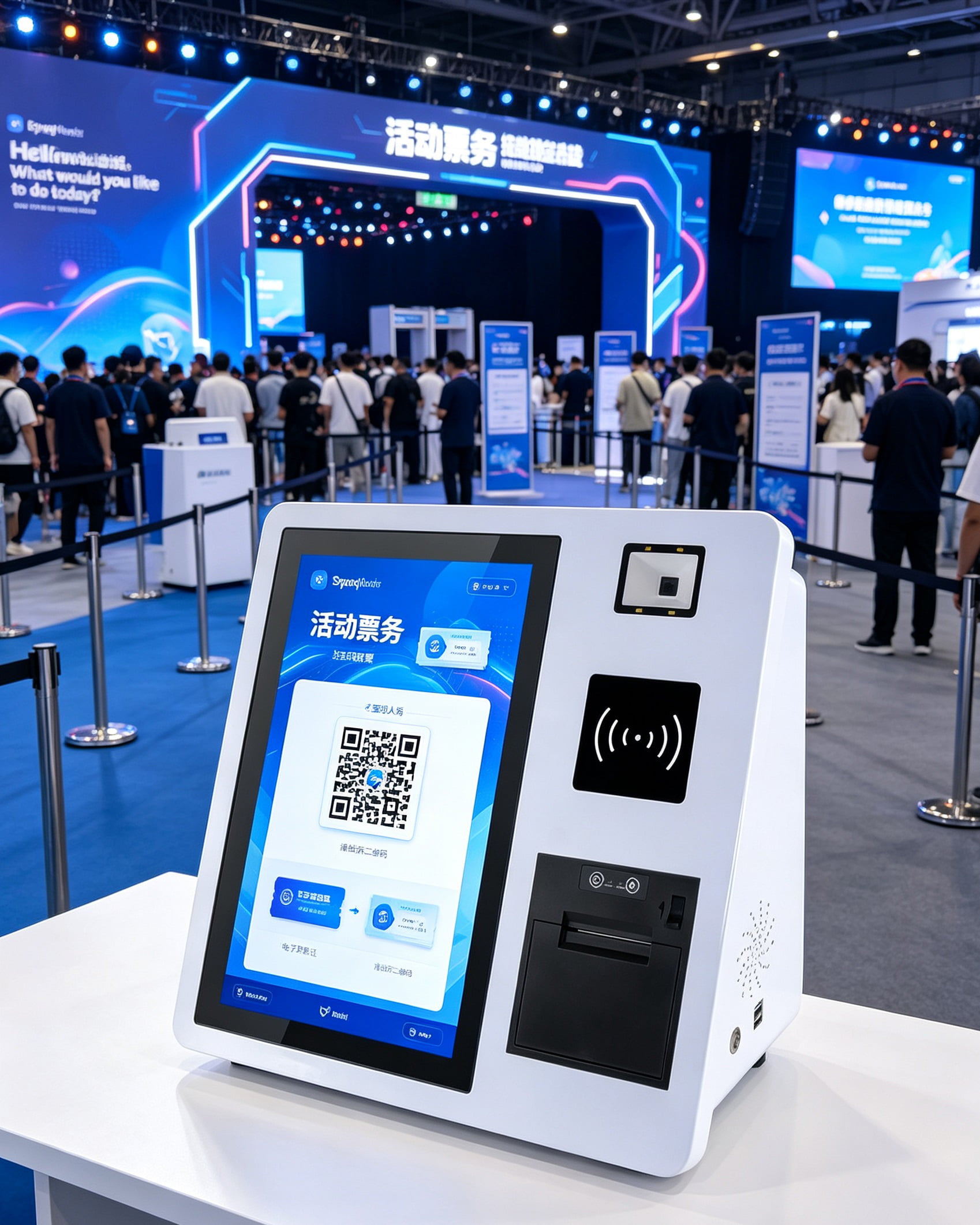

Event Ticketing
Upgrade Your Countertop Infrastructure Today.
Global retail chains and software integrators are empowered by SynqNode hardware. Custom OEM configurations, full SDK support, and competitive bulk pricing are ready to be provided.
