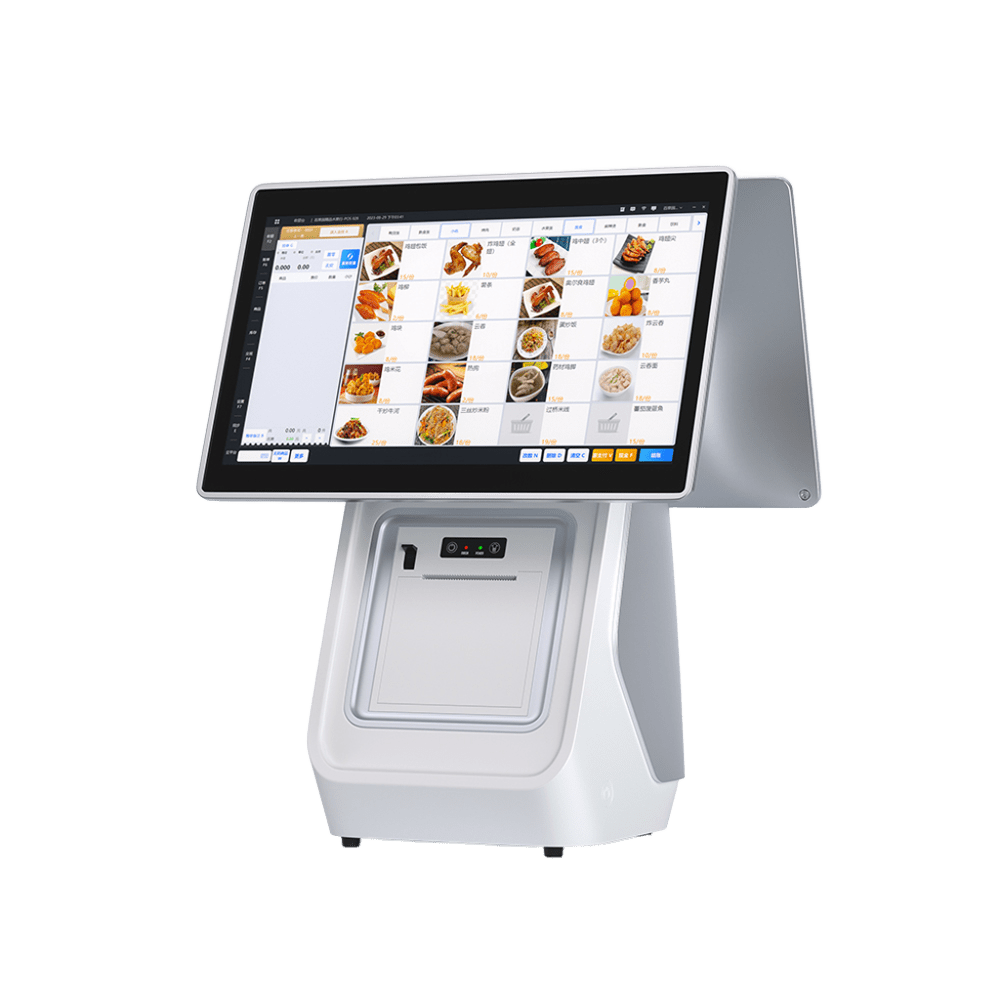

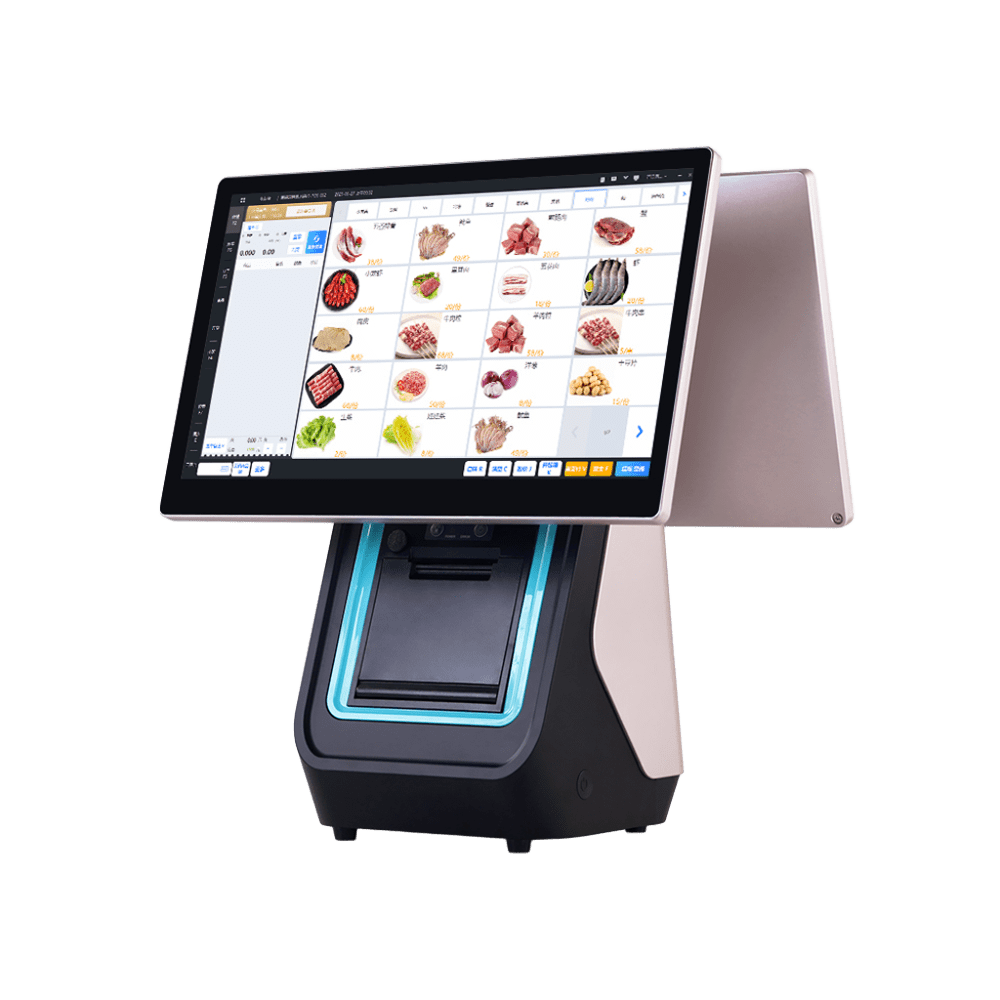

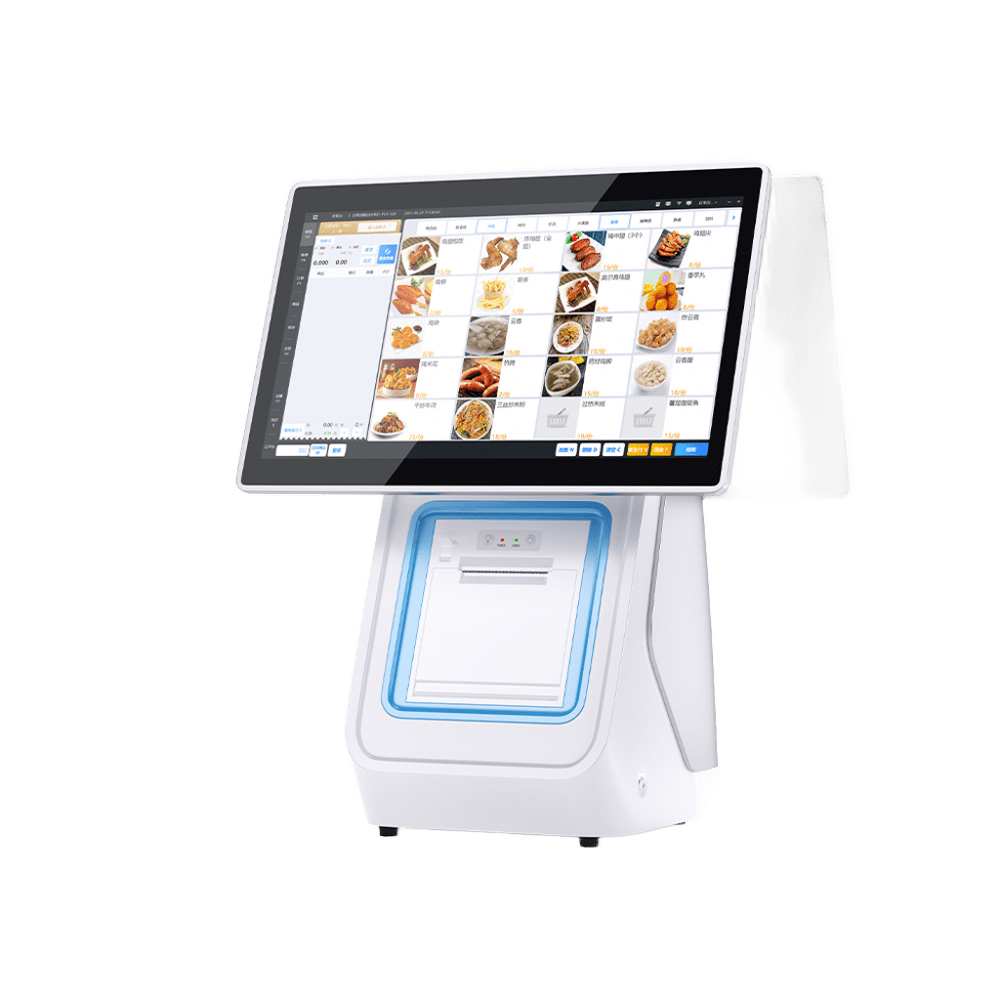

SN-W50 15.6″ Touch Screen POS Terminal with Printer
The Enterprise Standard for Checkout Infrastructure.
SynqNode SN-W50 Integrated Printing. Ultimate Efficiency. The true meaning of an all-in-one checkout solution is redefined here. A high-speed thermal receipt printer is built directly into the heavy-duty stand. External cables are eliminated. Valuable counter space is reclaimed, and massive rollout deployments are executed instantly. Bullet Points: ✔️ A high-speed built-in thermal printer is integrated… Need a complete setup? View all all-in-one POS terminals or add a cash drawer.
- China brand POS hardware manufacturer
- Industrial-grade heat dissipation is engineered.
- Seamless OEM customization is supported.
- SKU
- SQN-SN-W50-15-6-
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard
Engineered for Endurance.
A heavy-duty weighted base is engineered. Screen wobble during aggressive touch operations is eliminated entirely. 24/7 continuous operation in high-traffic supermarkets and busy restaurants is guaranteed. Machine downtime is reduced to absolute zero.
Modular Peripheral Expansion.
Diverse checkout requirements are accommodated effortlessly. Magnetic Stripe Readers (MSR), iButton modules, and VFD/LCD customer displays are attached easily via seamless side-mount interfaces. Customized configurations are built for different regional markets.
Optimized Total Cost.
The Total Cost of Ownership (TCO) is minimized by our streamlined manufacturing process. A highly standardized, universally compatible hardware platform is provided. Large-scale global deployments are executed with maximum cost-efficiency.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15.6" TFT LCD, 1366x768 or 1920x1080 (FHD optional) |
|---|---|
| Customer Display | Optional 11.6" / 15.6" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | Intel® Celeron® J1900 / J6412/ Core™ i3 / Core™ i5 |
| Memory (RAM) | 4GB / 8GB / 16GB DDR3L or DDR4 (Depends on CPU) |
| Storage (ROM) | 64GB / 128GB / 256GB / 512GB mSATA SSD |
| Dimensions | 34*23*44cm |

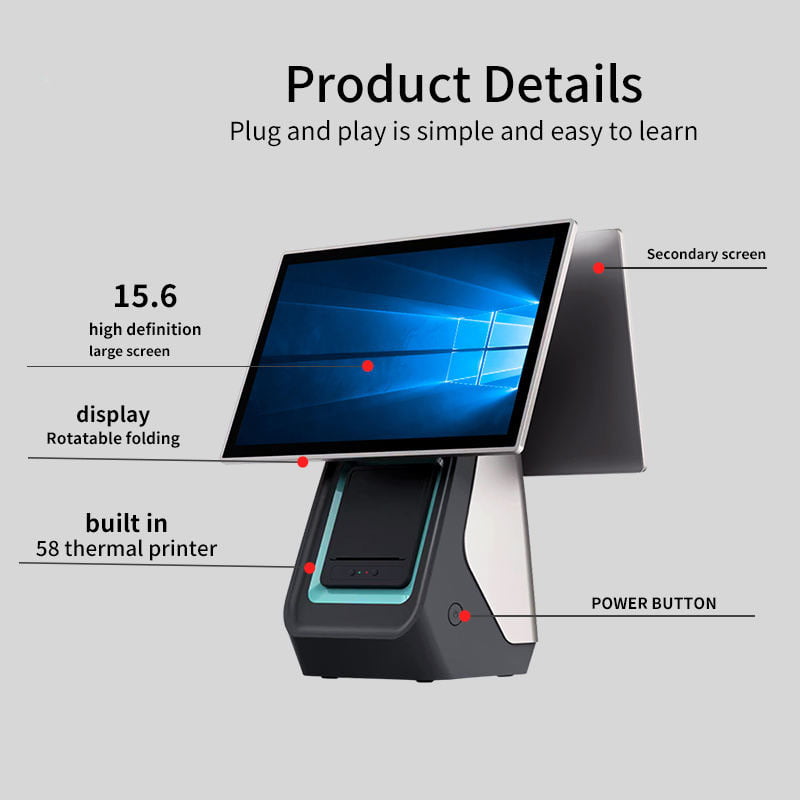

| Integrated Printer |
Printer Type: Built-in Thermal Receipt Printer (Direct Thermal) Paper Width: 58mm or 80mm (Configurable based on order) Print Speed: 160mm/s (High-speed output) Cutter Mechanism: Auto-cutter integrated (Partial/Full cut supported) Paper Loading: Drop-in easy loading design |
| NFC |
Built-in NFC module, supports TYPE-A&B cards, FeliCa (F), ISO14443, 15693(M), 18092(NFCCIP-1). |

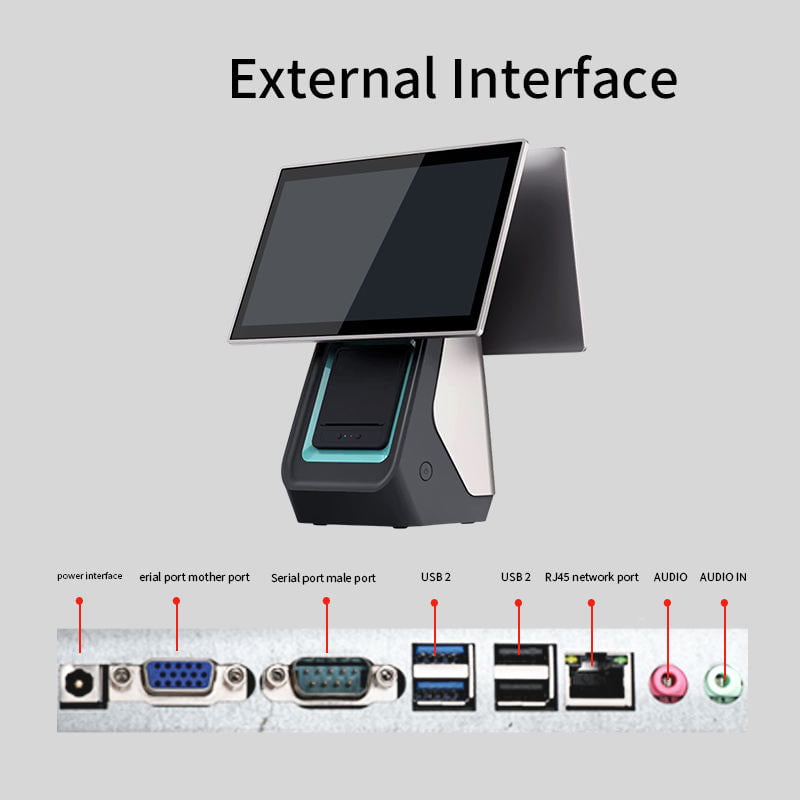

| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| Barcode Scanner | Buiilt-in 2D Scanner, 2D Symbologjes:Aztec Code,Data Matrix Code, PDF417, Micro PDF417, QR Code, Micro QR Code 1D Symbologies: Codabar,Code 11,Code 128, UPC-A, UPC-E, Code 32, Code 39, Code93, EAN-8, EAN-13,ISBN, ISSN, GS1 DataBar(RSS-14),ITF5, Matrix 2 of 5 etc. |
| 4G Module (Optional) | Embedded 4G Module, Micro SIM: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| Power Supply | 12DC 7A 100-240V |
| Environment | Operating: 0°C to 40°C | Storage: -20°C to 60°C |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
Is the SN-W50 suitable for harsh environments like restaurant kitchens?
Yes. A fanless architecture is utilized, and the front touch panel is sealed. Dust, grease, and liquid splashes are resisted effectively.
Can I order this model barebone (without RAM/SSD)?
Absolutely. Barebone shipments are supported for global distributors. Local assembly and configuration are facilitated to save import duties.
What makes this model ideal for mass deployment?
Highly standardized, widely tested motherboard components are utilized. Extreme hardware consistency is guaranteed across thousands of units, reducing IT maintenance significantly.
Request a Quote for
SN-W50 15.6″ Touch Screen POS Terminal with Printer
Volume pricing, OEM customization, and lead time details are shared by our engineering team within one business day.
- Response within 24 hours
- NDA available for enterprise projects
- Free developer sample for qualified integrators
