DCA-B10 Windows POS System
The Enterprise Standard for Checkout Infrastructure.

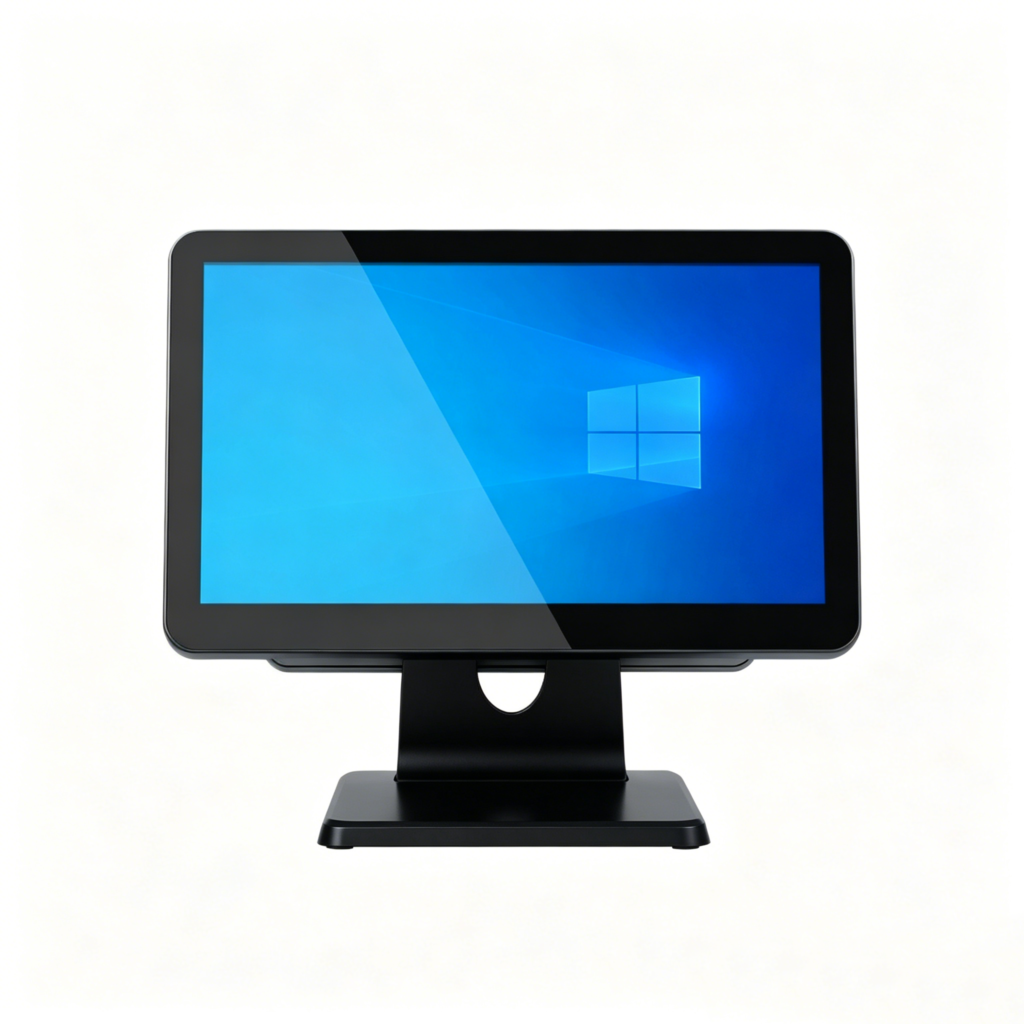

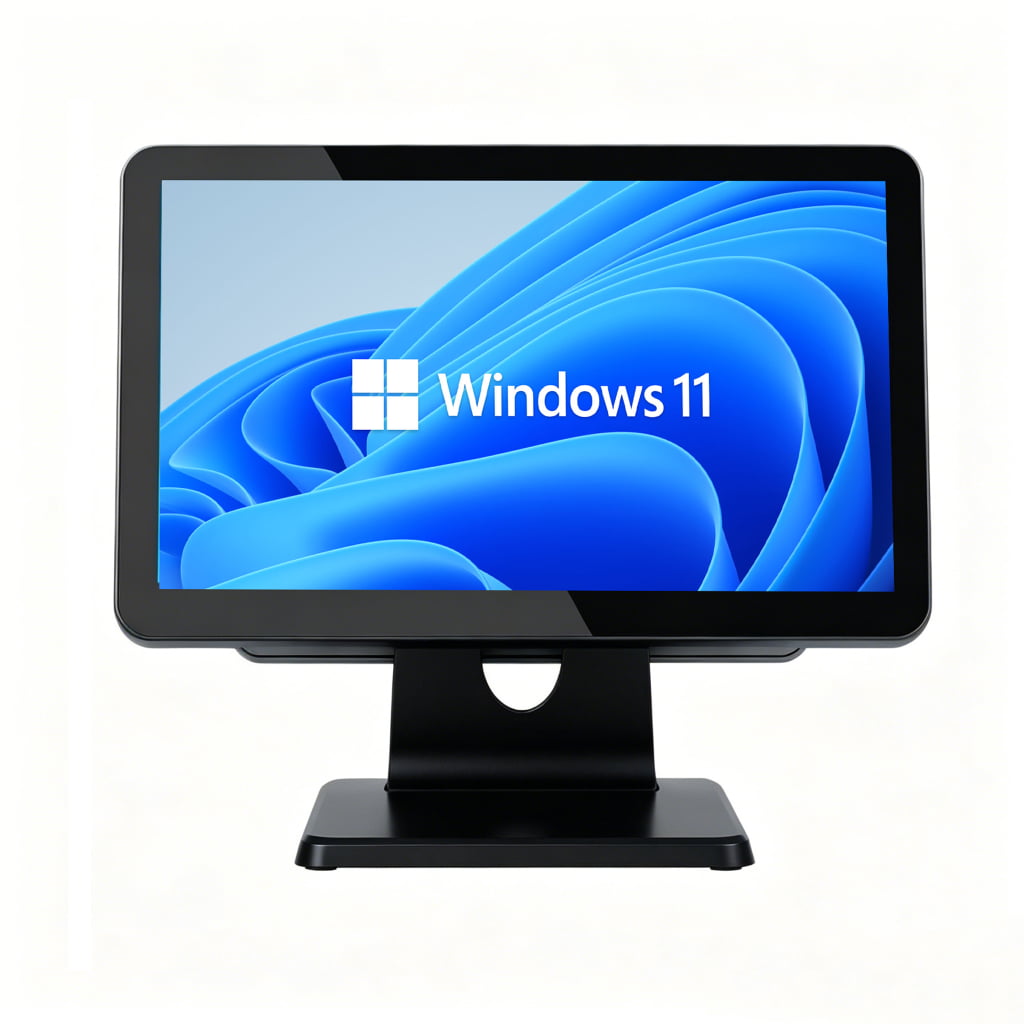

- True-Flat Brilliance.
15.6" Zero-bezel capacitive touch screen. Seamless, responsive, and incredibly easy to clean. - CPU:
Intel®
Windows Powerhouse.
Multiple processor options (J1900 / i3 / i5) to handle your heaviest POS software without breaking a sweat. - Commercial Grade.
Built to withstand spills, dust, and 24/7 continuous operation in harsh retail environments. - Massive I/O. Zero Clutter.
Concealed cable routing design keeps your counter perfectly organized while connecting all essential peripherals.
- China brand POS hardware manufacturer
- Industrial-grade heat dissipation is engineered.
- Seamless OEM customization is supported.
- SKU
- SQN-SN-B10-WINDO
- Availability
- In Stock
- Lead Time
- 10-15 business days
- Warranty
- 24 months standard

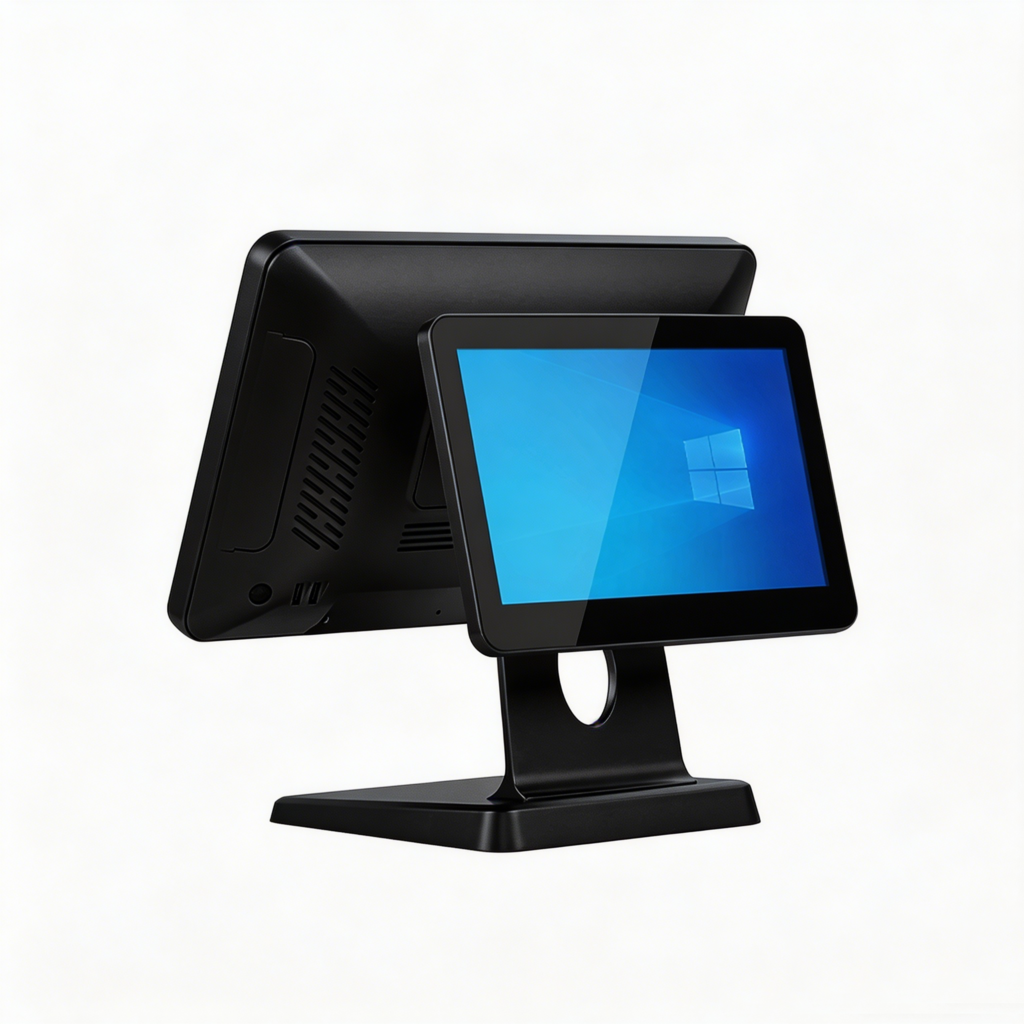

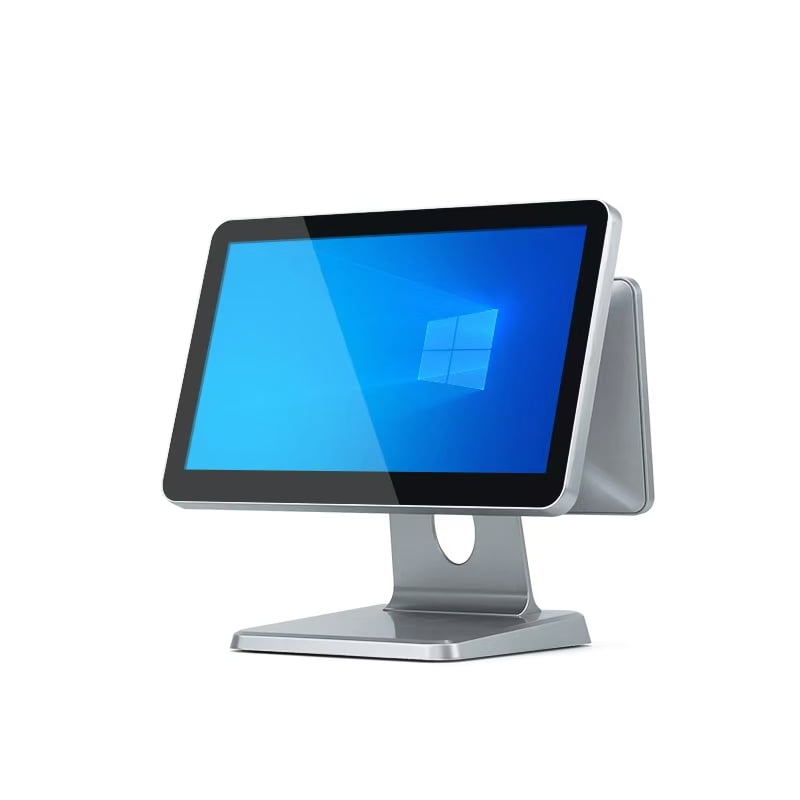

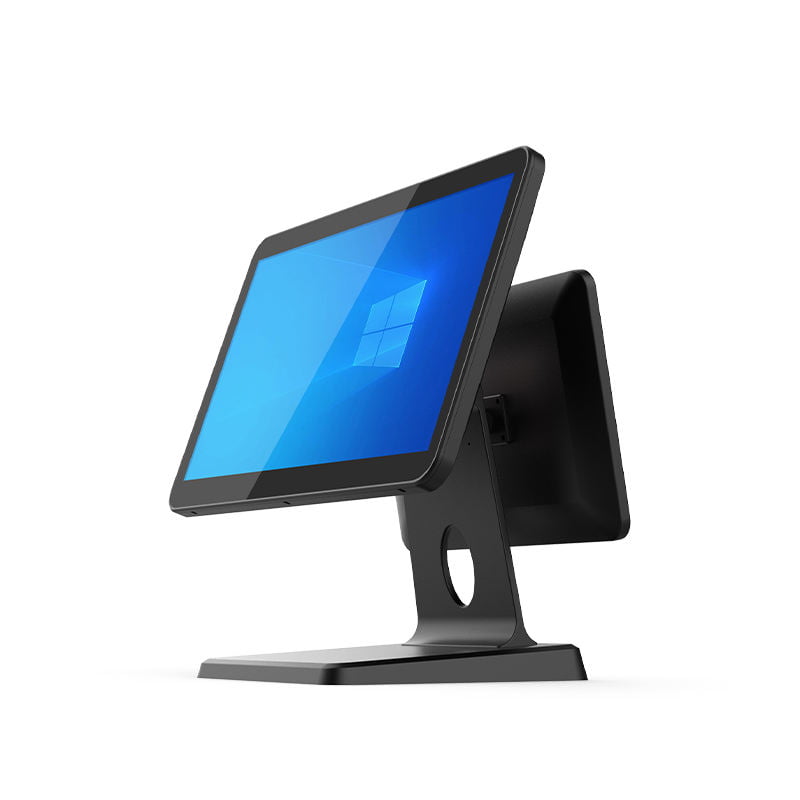

Dual Display.
Upgrade your checkout counter with an optional 11.6" or 15.6" customer-facing screen. Display dynamic promotions, order details, and QR payments in real-time. Engage your customers exactly where they make their purchasing decisions.
Plug & Play integration
Synchronized or independent display

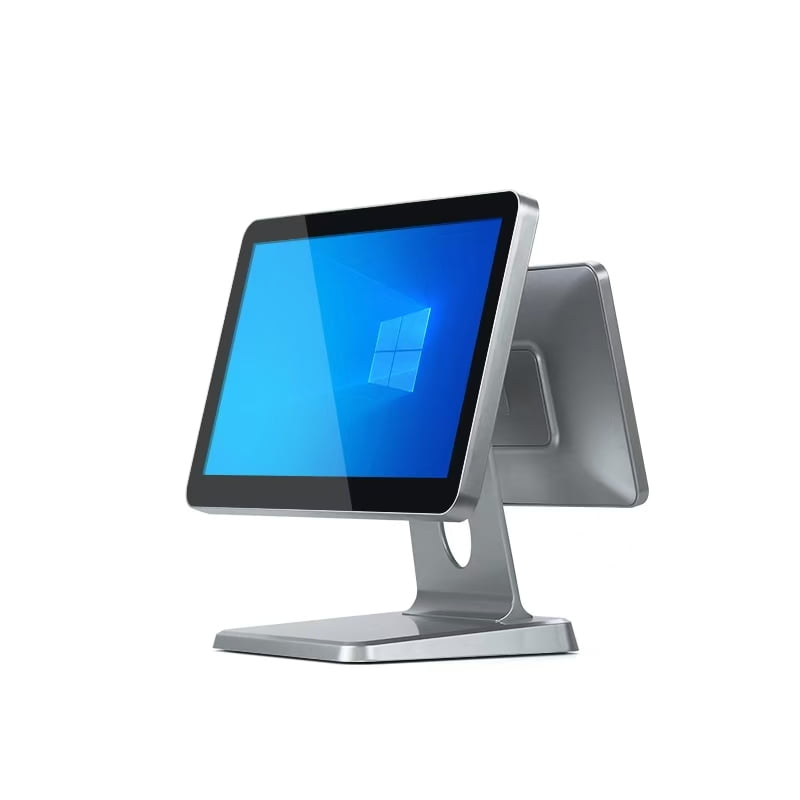

Sleek outside.
The SN-B10 combines modern aesthetics with industrial reliability. Its efficient heat dissipation design ensures stable operation even during peak hours. The modular architecture allows IT staff to easily access the motherboard and storage, drastically reducing maintenance time and costs.
Technical Details
Full specifications, documentation, and customization options for engineering evaluation.
| Main Display | 15"/15.6" TFT LCD, 1920x1080 (FHD) / 1366x768/ 1024*768, 10-Point PCAP Touch screen |
|---|---|

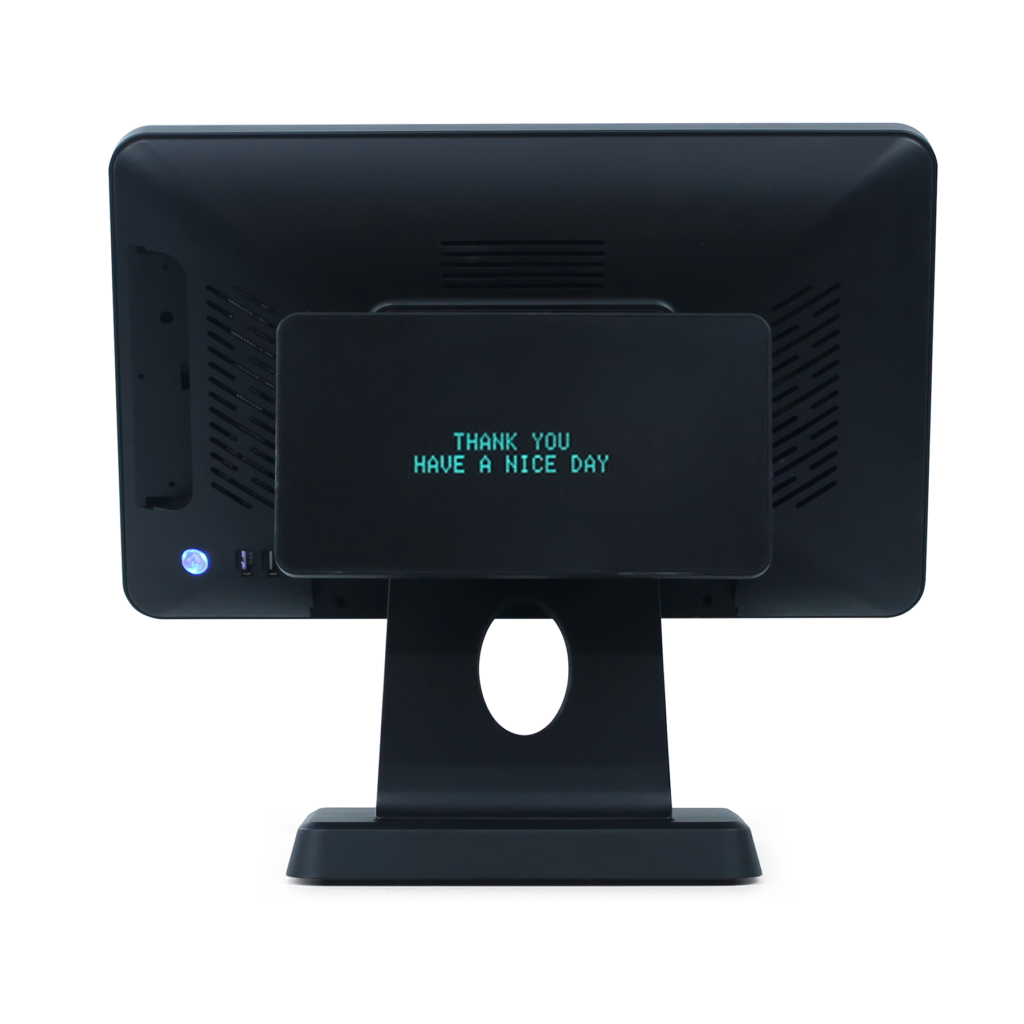

| Customer Display | Optional 11.6" / 15.6" LCD (Touch / Non-touch) or VFD (2 Lines x 20 Characters) |
| Processor (CPU) | Intel® Celeron® J1900 / J6412/ Core™ i3 / Core™ i5 |
| Memory (RAM) | 4GB / 8GB / 16GB DDR3L or DDR4 (Depends on CPU) |
| Storage (ROM) | 64GB / 128GB / 256GB / 512GB mSATA SSD |
| Dimensions | 375*215*330mm |
| Integrated Printer |
Printer Type: Built-in Thermal Receipt Printer (Direct Thermal) Paper Width: 58mm or 80mm (Configurable based on order) Print Speed: 160mm/s (High-speed output) Cutter Mechanism: Auto-cutter integrated (Partial/Full cut supported) Paper Loading: Drop-in easy loading design |
| NFC |
Built-in NFC module, supports TYPE-A&B cards, FeliCa (F), ISO14443, 15693(M), 18092(NFCCIP-1). |
| Material | Aluminum Alloy Stand + High-grade ABS chassis |

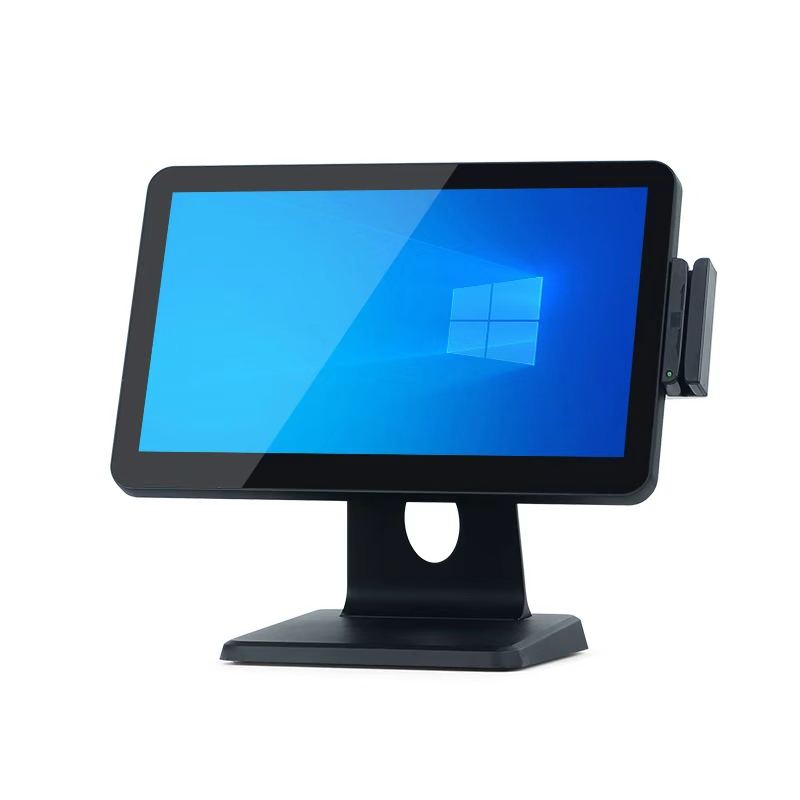

| Peripheral Options | MSR, iButton, IC / ID / NFC / RFID Card / Fingerprint Sensor / Camera |
| Barcode Scanner | Buiilt-in 2D Scanner, 2D Symbologjes:Aztec Code,Data Matrix Code, PDF417, Micro PDF417, QR Code, Micro QR Code 1D Symbologies: Codabar,Code 11,Code 128, UPC-A, UPC-E, Code 32, Code 39, Code93, EAN-8, EAN-13,ISBN, ISSN, GS1 DataBar(RSS-14),ITF5, Matrix 2 of 5 etc. |
| 4G Module (Optional) | Embedded 4G Module, Micro SIM: LTE-FDD:B1/3/5/8 LTE-TDD:B34/38/39/40/41 |
| Environment | Operating: 0°C to 40°C | Storage: -20°C to 60°C |
Frequently Asked Questions
Common inquiries from retailers, system integrators, and procurement teams.
Can I upgrade the RAM and Storage of the SN-B10 later?
Yes, the SN-B10 features an accessible motherboard design. Authorized technicians can easily upgrade the memory and SSD to meet your growing business needs.
Is the main touch screen water and dust resistant?
Yes, the front panel features a true-flat, IP65-rated design, meaning it is protected against dust ingress and liquid spills, making it ideal for restaurants and busy retail checkout counters.
Does the SN-B10 support VESA mounting?
Absolutely. By removing the robust desktop stand, the terminal reveals a standard 75x75mm VESA mount pattern, allowing it to be easily attached to wall brackets or POS pole mounts.
What peripherals are compatible with this POS terminal?

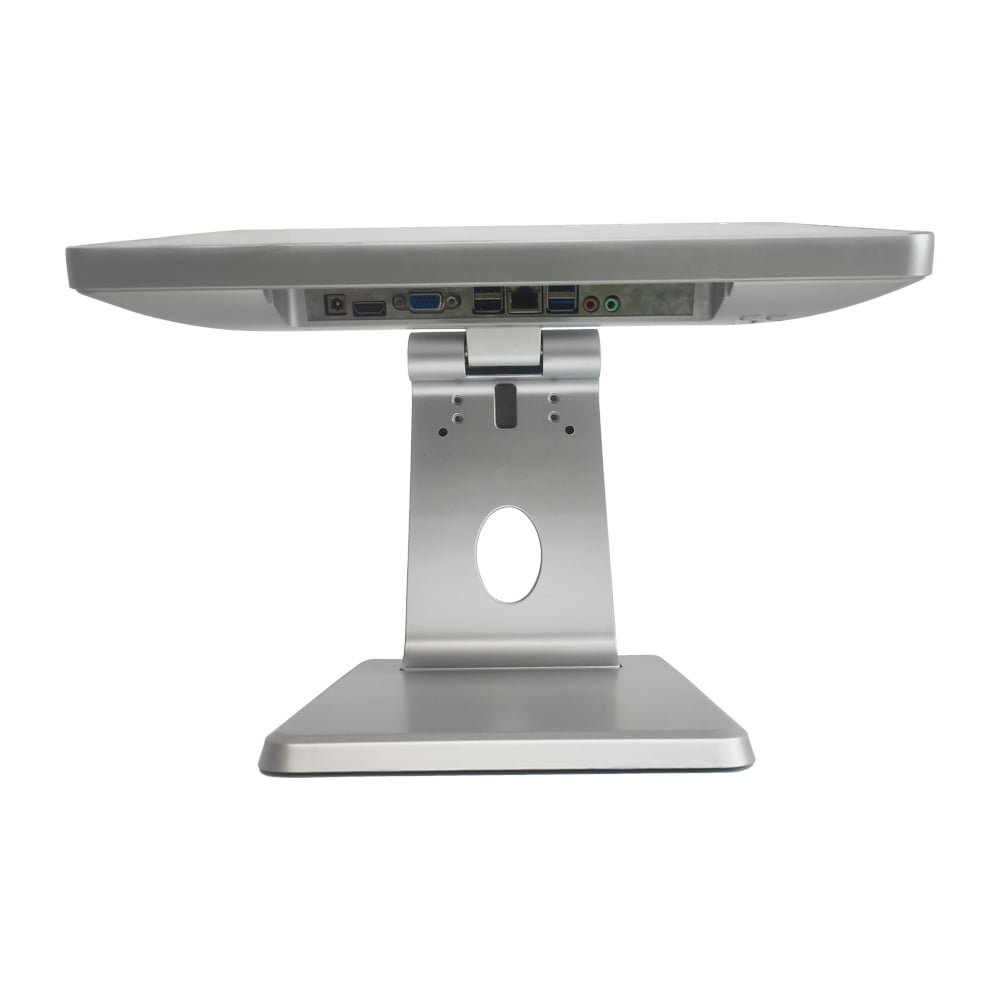

Thanks to its rich array of I/O ports (including 6 USBs and 2 COM ports), it is natively compatible with standard barcode scanners, receipt printers, cash drawers, and MSR/RFID readers.
