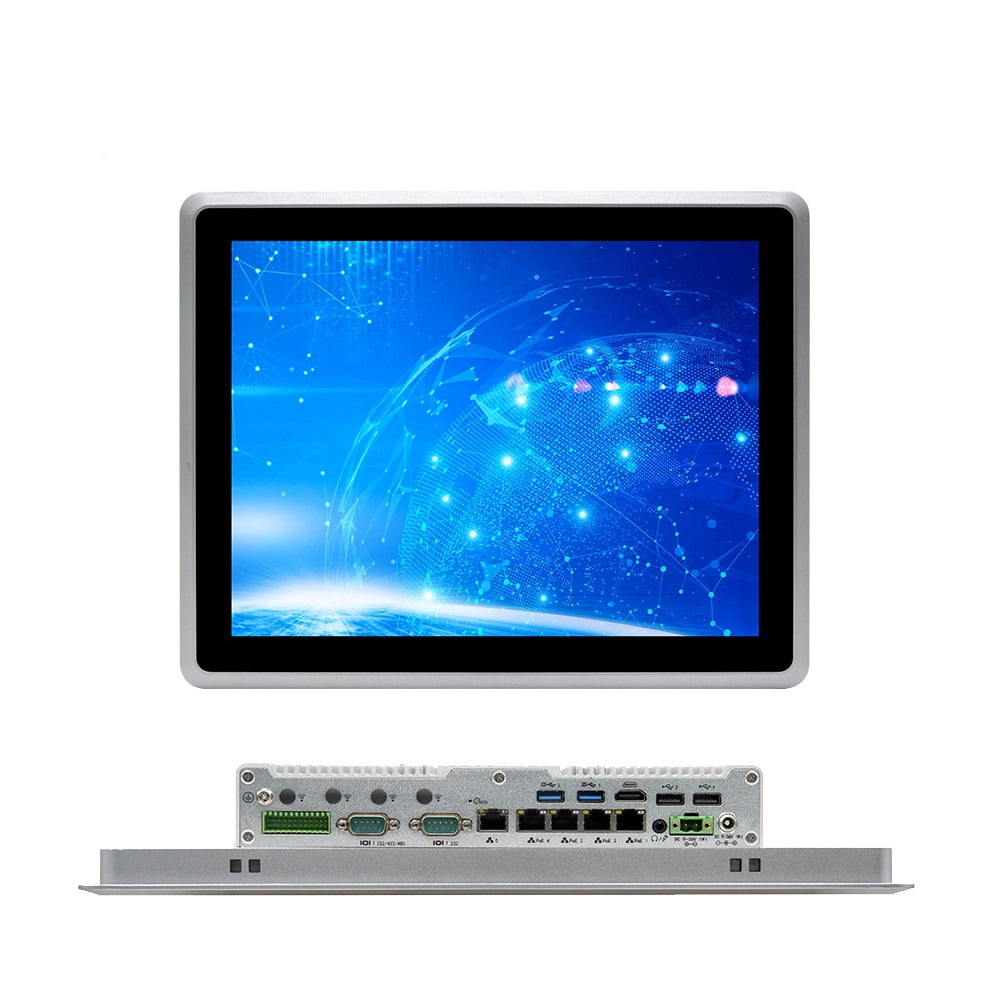

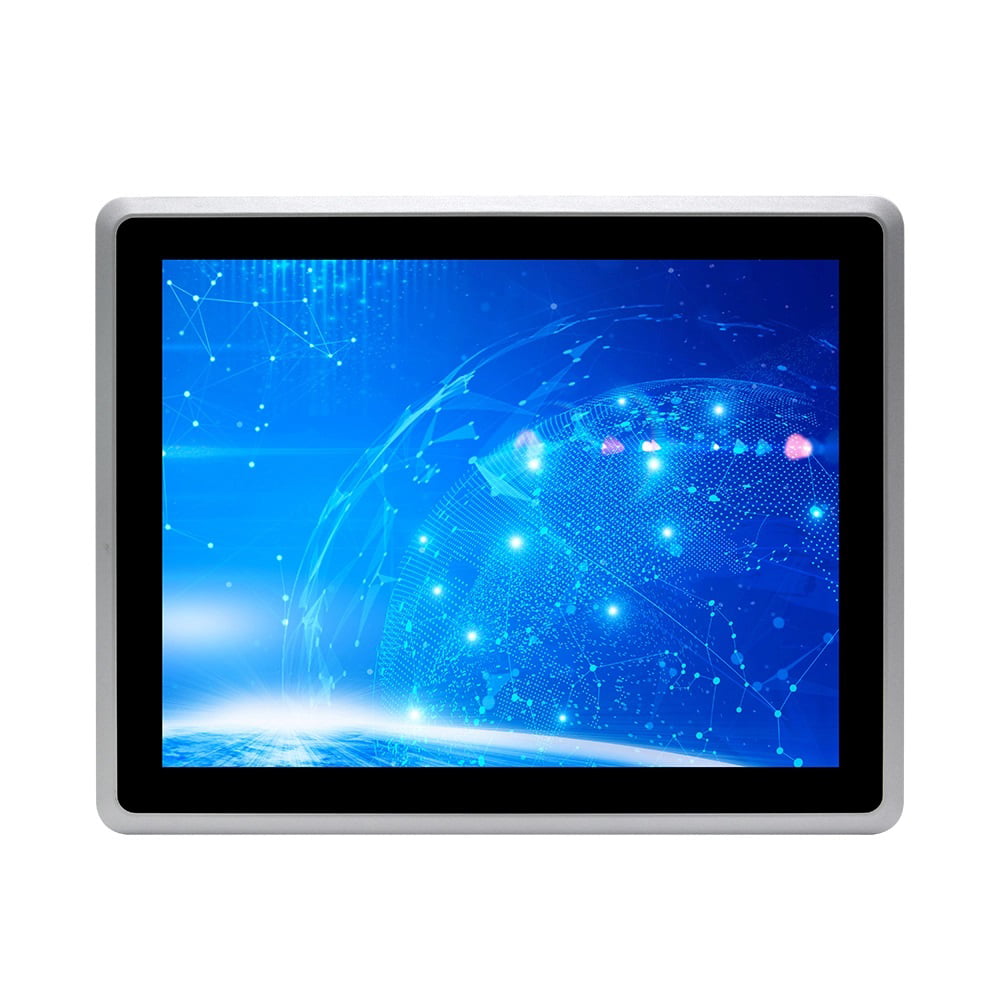

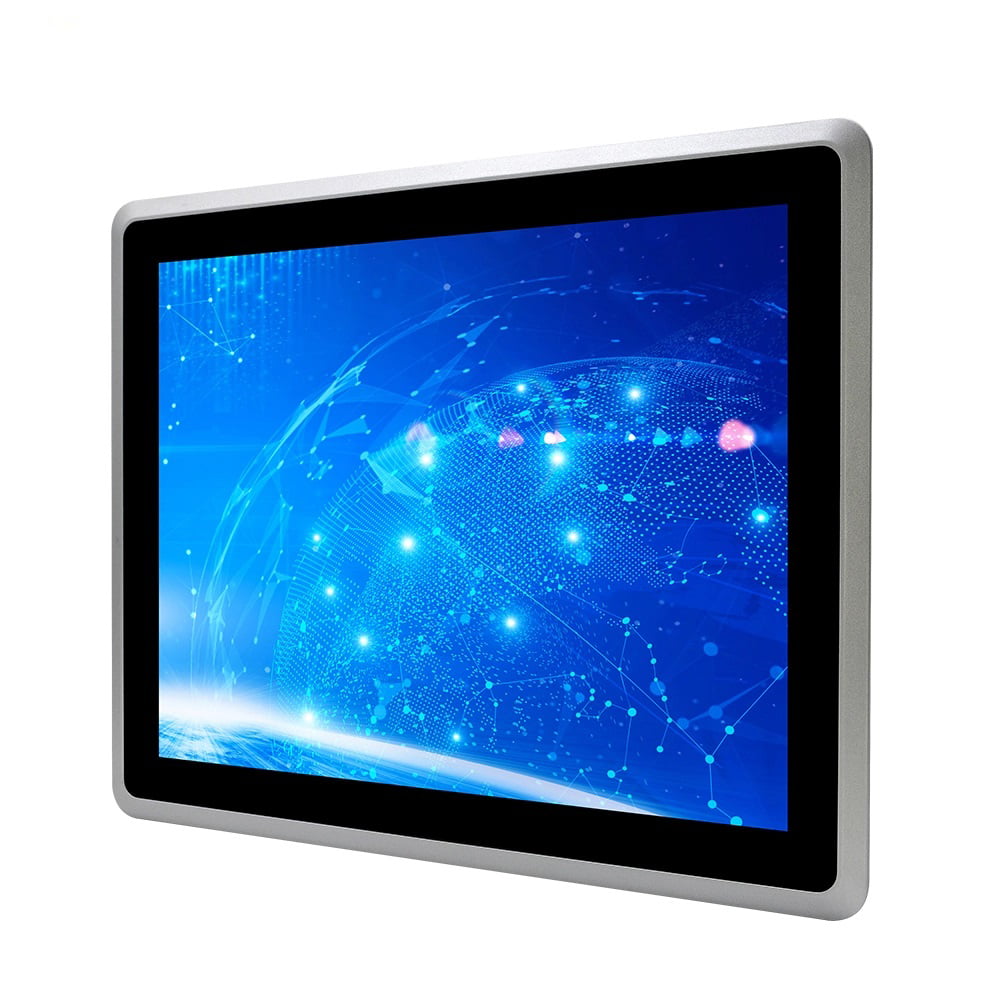

SynqNode
AIO-157Y.
The POE-Powered Industrial Panel PC.
A highly responsive 15-inch touch interface is combined with robust edge computing power. Complex network architectures are simplified by our integrated POE technology. Your industrial automation and machine vision deployments are elevated to a new standard of reliability.
)
Simplified Infrastructure.
Powered by POE.

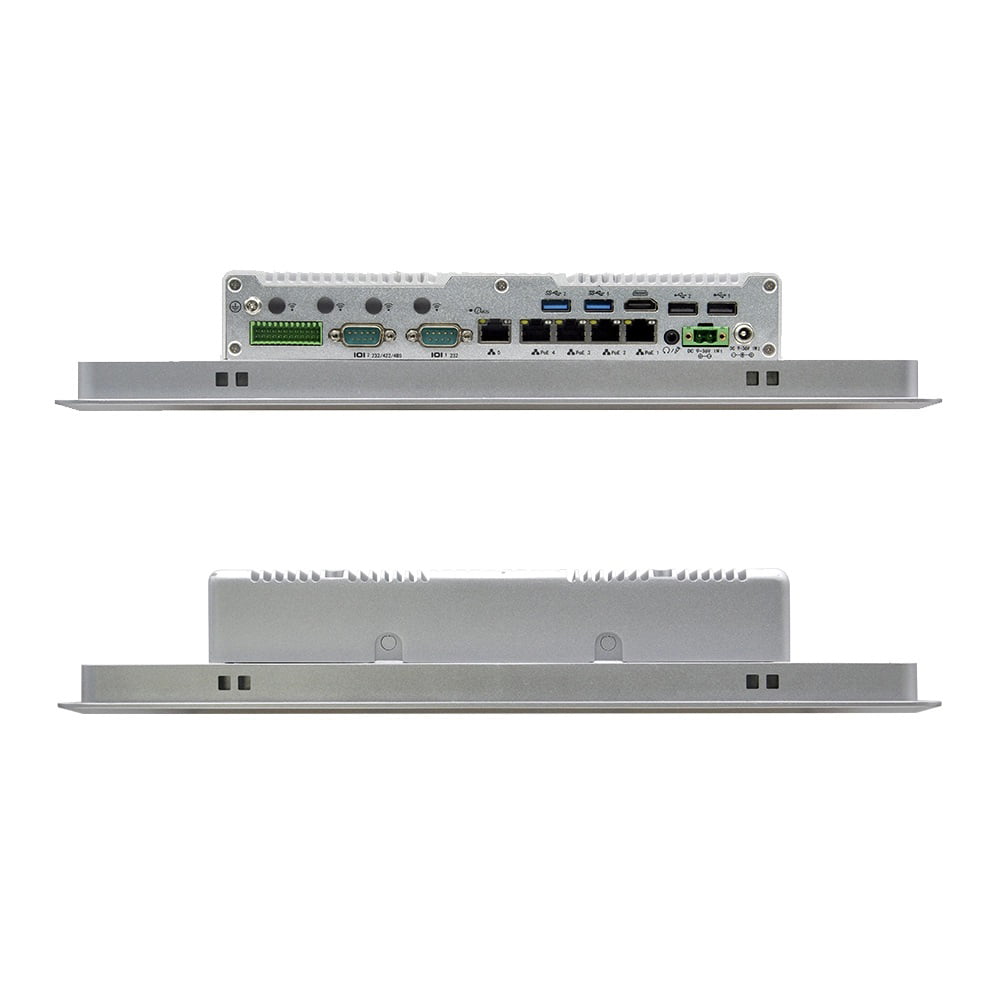

Messy wiring and external power adapters are eliminated. Five independent Intel® Gigabit LAN ports are equipped on the AIO-157Y. Four of these ports deliver Power over Ethernet (POE).
IP cameras, IoT sensors, and external peripherals are powered directly through data cables. System stability is heavily prioritized for machine vision and warehouse sorting.
Flawless Interaction.
Anywhere.

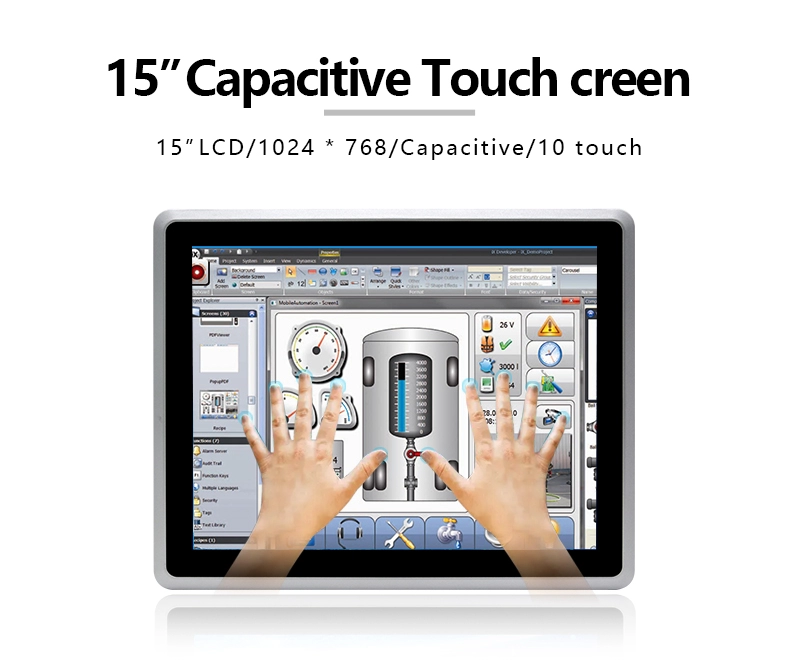

A high-definition 15-inch LCD display is utilized for crystal-clear data visualization. Ten-point capacitive touch functionality is supported, ensuring intuitive and rapid operation.
Whether operated in dusty factories or varying temperatures, precise commands are registered instantly. Adjustable touch resistance is available for specialized industrial glove operations.
Scalable Computing.
Unlimited Connectivity.
Processing power is customized to your specific project needs. Legacy industrial equipment is seamlessly synchronized via four integrated RS232/485 COM ports and dedicated GPIO interfaces.
Scalable Processors
Configurations ranging from cost-effective Intel® Celeron® to high-performance 11th Gen Core™ i5 processors are offered.
4* RS232/485 COM
Ensure backwards compatibility with PLCs, CNC machines, and traditional manufacturing hardware flawlessly.
GPIO & Wide Voltage
Equipped with Phoenix terminal blocks supporting 4-in/4-out GPIO and robust 9-36V wide DC power input.
Engineered for
Extreme Environments.
Moving parts are completely removed. A pure copper heat pipe and a premium aluminum alloy chassis are utilized for highly efficient, fanless heat dissipation. Your 24/7 operations are never interrupted.
-10°C ~ 50°C
Operating Temp
9V - 36V
Wide Voltage DC
0 Decibels
Fanless Design
IP65
Front Panel Proofing
AIO-157Y Technical Specifications
Built for machine vision, smart warehousing, and heavy automation.
| Category | Specification |
|---|---|
| Model | SynqNode AIO-157Y (Embedded Industrial Panel PC) |
| Display & Touch |
15-inch LCD (1024 x 768 Resolution) 10-Point Capacitive Touch Screen (Adjustable resistance available) Luminance: 350 cd/m² |
| Processor Options |
Intel® Celeron® J6412 Intel® Core™ i5-7300U / i5-8260U / i5-10210U / i5-1135G7 |
| Memory & Storage |
2* SODIMM DDR4 Slots (Max capacity depends on CPU) 1* M.2 (NVME PCIE/SATA), 1* mSATA 1* 2.5-inch SATA HDD/SSD Bay |
| Networking (LAN) |
5* Intel I210AT Gigabit LAN Ports Note: 4 of these ports support POE (15W) |
| Serial Ports (COM) |
4* RS232 Serial Ports (COM2 supports RS485/422 via BIOS, COM3 supports RS485) |
| I/O Interfaces |
4* USB 3.0, 2* USB 2.0 1* HDMI Output (4096x2304 @ 24Hz) 1 Phoenix Terminal (4-in/4-out GPIO, 5V VCC, GND) Audio: 1* Line Out, 1* MIC-in |
| Power Supply | 9V ~ 36V Wide Voltage DC Input (Phoenix Terminal) |
| Cooling System | Fanless Design, Aluminum Alloy Structure + Pure Copper Heat Pipe |
| Dimensions & Install |
368 * 292 * 62 mm Supports VESA Mount / Embedded Panel Installation |
| Operating Environment |
Temp: -10°C ~ +50°C Humidity: 5% ~ 95% non-condensing |
Ready to Upgrade Your Industrial Nodes?
Whether powering a massive smart warehouse fleet or integrating into complex factory automation, the AIO-157Y is ready to be deployed. Bulk orders, OEM customizations, and global partnerships are welcomed by our engineering team.
